Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

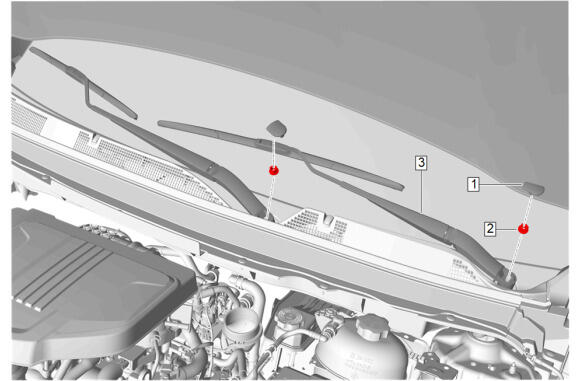

Windshield Wiper Arm Nut Cap (1) - Remove [2x]
Windshield Wiper Arm Nut (2) - Remove [2x]
Grasp the outer end of the wiper arm and gently rock the arm back and forth, while holding the wiper arm blade off the windshield.
Windshield Wiper Arm (3) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

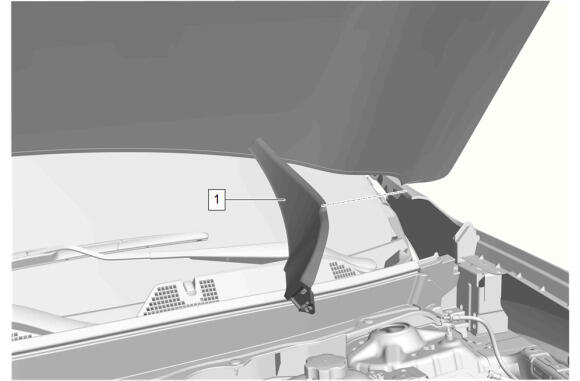

Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

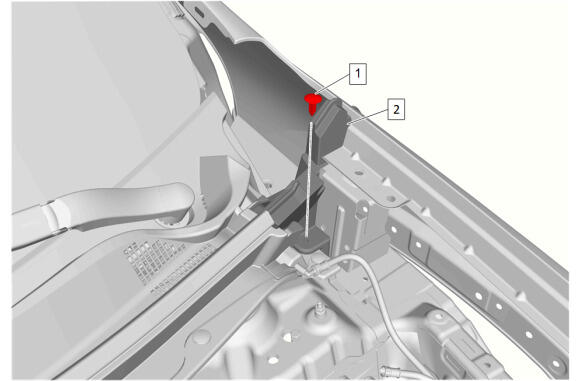

Hood Rear Outer Air Inlet Seal Retainer- Left Side and Right Side (1) - Remove [2x]
Hood Rear Outer Air Inlet Seal- Left Side and Right Side (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

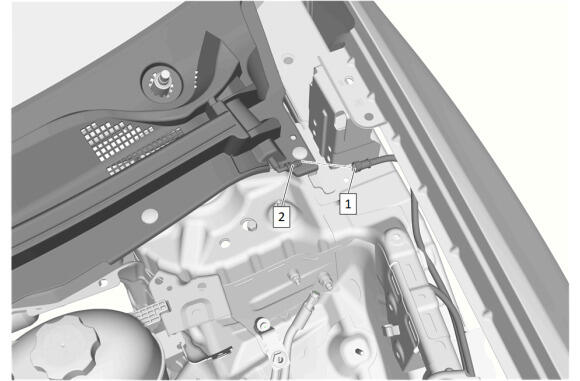

Windshield Washer Pump Hose (1) @ Windshield Washer Nozzle Hose (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

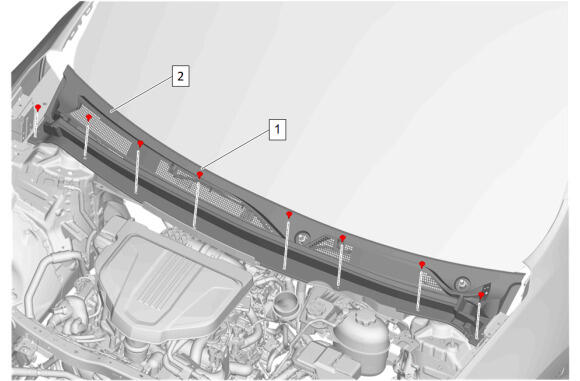

Air Inlet Grille Panel Retainer (1) - Remove [8x]
Air Inlet Grille Panel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

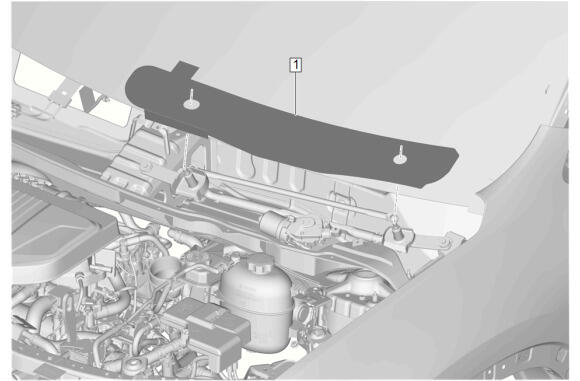

Windshield Wiper System Module Shield (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

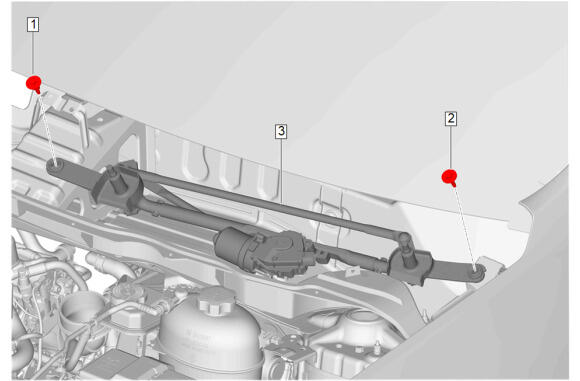

Windshield Wiper System Module Bolt (1) - Remove
Windshield Wiper System Module Bolt (2) - Remove
Disconnect the electrical connector.
Windshield Wiper System Module (3) - Remove
