Installation Procedure
Lighting Control Module (1) - Install
- Engage the retaining tabs on the lighting control module bracket.
- Connect the electrical connectors and position the wiring harness.

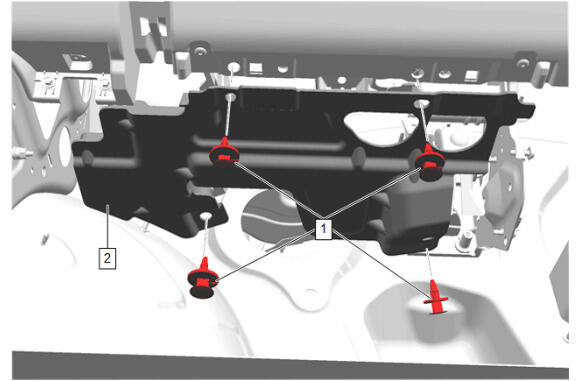

Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install
- Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install [4x]
- Perform the necessary programming and setup procedure: Control Module References
NOTE:
It is necessary to reposition the electrical connectors and wiring harness prior to installing the lighting control module.
NOTE:
Quantity of retainers may vary based on option content.
