Installation Procedure

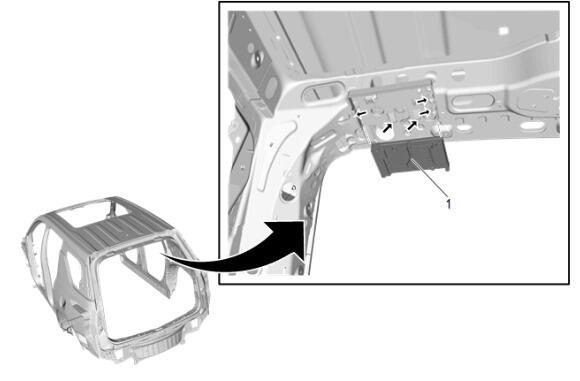

  1. GM6380192Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connector.

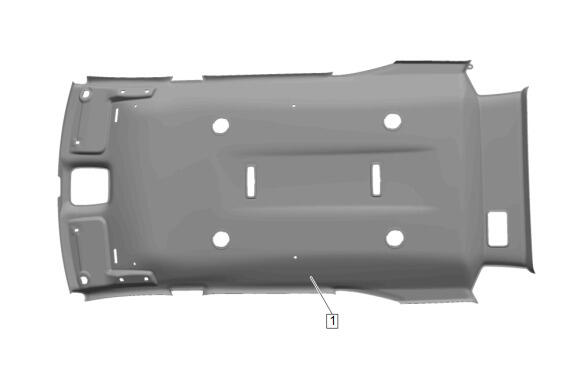

  4. GM6399506Courtesy of GENERAL MOTORS COMPANY

    Headlining Trim Panel (1) - Install

  5. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding- Right Side (3) - Install

    6. CAUTION:

    Refer to Fastener Caution .

  7. Body Rear Corner Upper Garnish Molding Bolt- Right Side (2) - Install and tighten - Fastener Specifications
  8. Quarter Window Trim Finish Panel Bolt Cap- Right Side (1) - Install
  9. Perform the necessary programming and setup procedure: Control Module References
