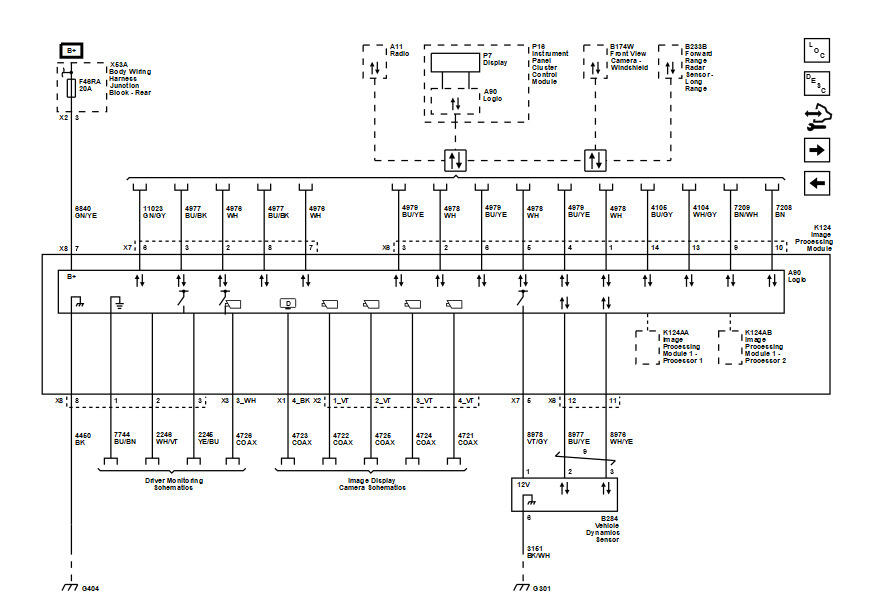

Vehicle Dynamic Sensor and Image Processing Module Power, Ground, Serial Data, and References (UKL)

GM6358372

Courtesy of GENERAL MOTORS COMPANY
