Home >> Chevrolet >> 2024 >> Traverse Limited LS, FWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Repair Instructions >> Steering Gear Boot Replacement >> Removal Procedure

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
  3. Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement
  4. GM5069385Courtesy of GENERAL MOTORS COMPANY

    Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. (1)

  5. Steering Linkage Inner Tie Rod Nut (1) - Remove
  6. GM5069393Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Clamp - Outer (1) - Remove

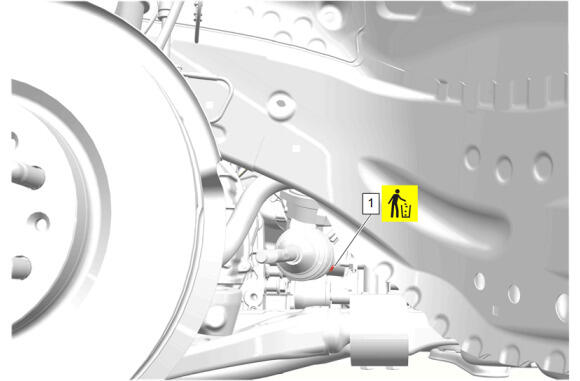

  7. GM6288270Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Clamp - Inner (1) - Remove and DISCARD

  8. GM5069642Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Remove
