Home >> Chevrolet >> 2024 >> Traverse Limited LS, FWD >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

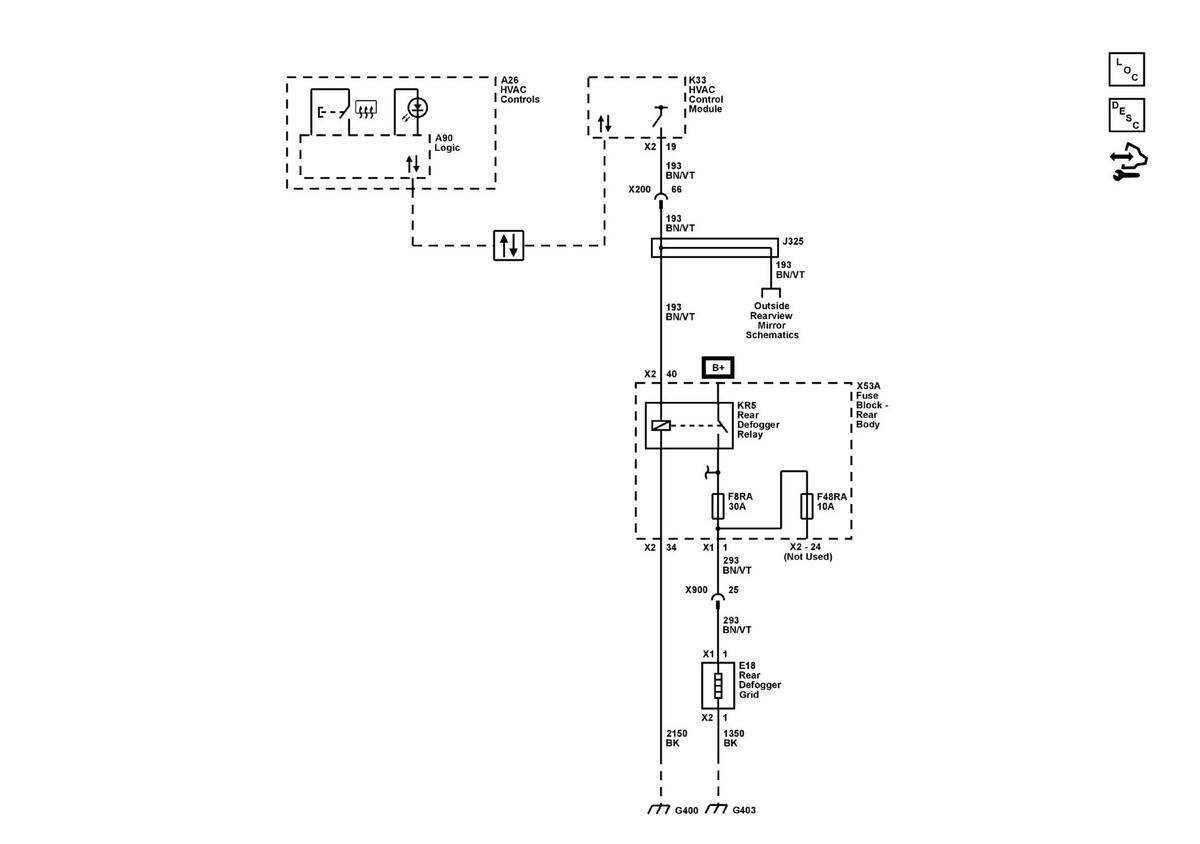

Defogger Wiring Schematics: Defogger

GM5966823

Courtesy of GENERAL MOTORS COMPANY
