Installation Procedure
- NOTE:
Some components not shown for graphic clarity.

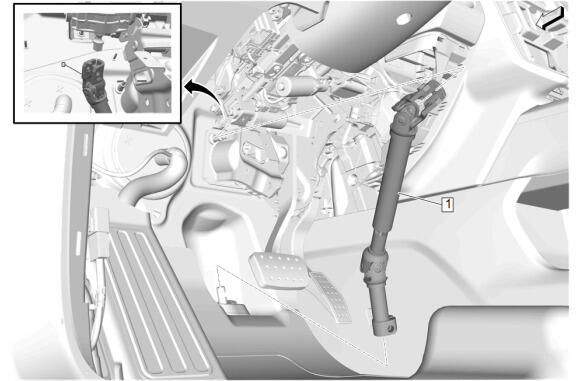

Intermediate Steering Shaft(1) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

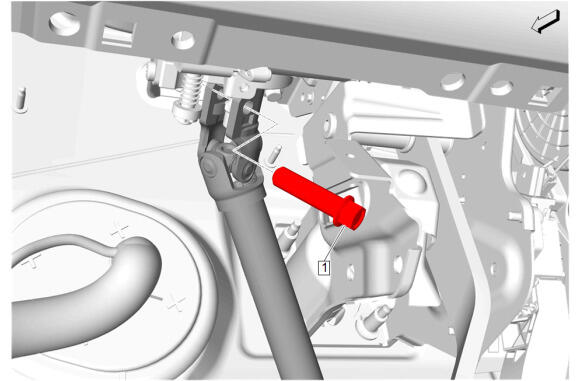

- Intermediate Steering Shaft Lower Bolt(1) - Install and tighten - Fastener Specifications
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

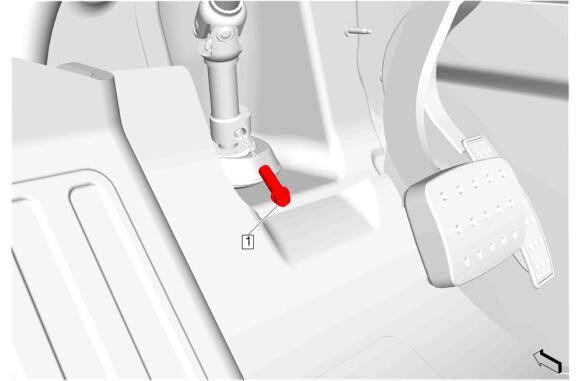

- Intermediate Steering Shaft Upper Bolt(1) - Install and tighten - Fastener Specifications

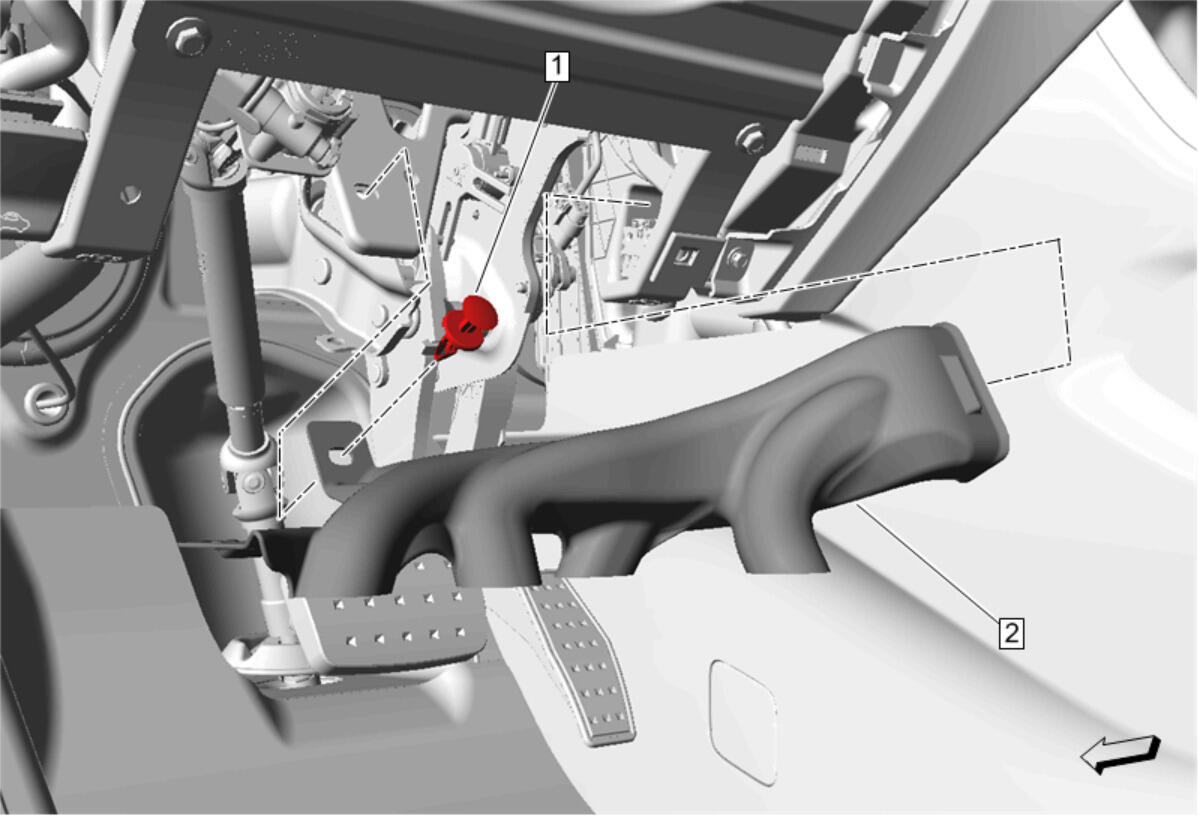

Floor Front Air Outlet Duct - Left Side(2) - Install
- Push Pin(1) - Install

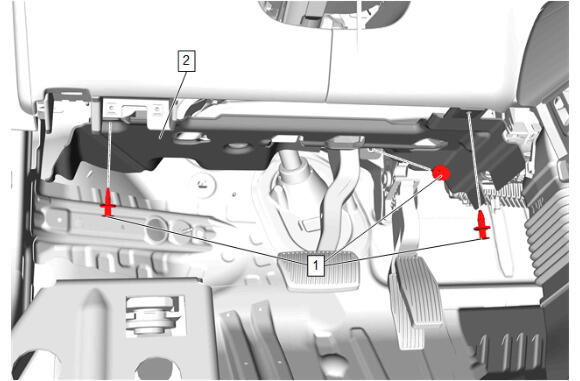

Instrument Panel Lower Trim Panel Insulator - Left Side(2) - Install
- Instrument Panel Lower Trim Panel Insulator Retainer(1) - Install[3x]
- Center the steering angle sensor. Steering Wheel Position Sensor Centering
CAUTION:
Refer to Fastener Caution .
