Installation Procedure

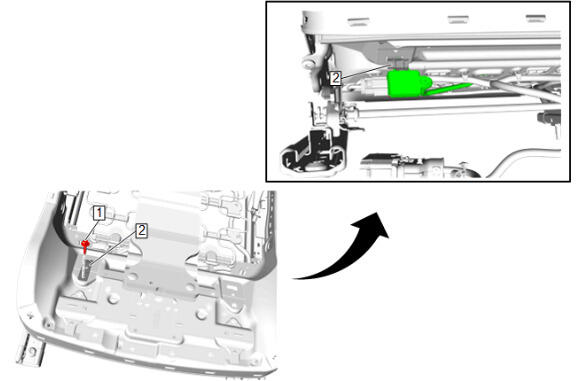

  1. GM6278086Courtesy of GENERAL MOTORS COMPANY

    Airbag Front Passenger Presence Module Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector and install the wiring harness retainers as necessary.
  4. Front Seat Cushion Cover and Pad - Install - Front Seat Cushion Cover and Pad Removal and Installation (A2V) , or Front Seat Cushion Cover and Pad Removal and Installation (A7E) , or Front Seat Cushion Cover and Pad Removal and Installation (A2X / A7J)
