Installation Procedure

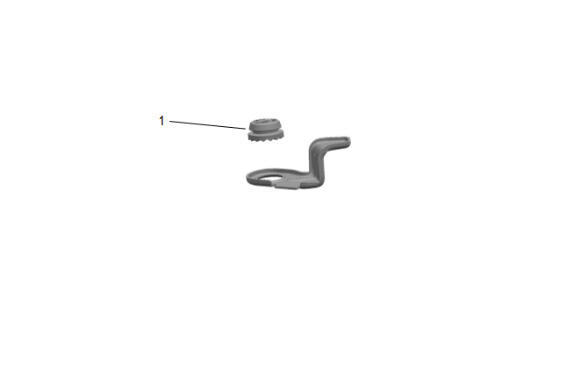

  1. GM6382751Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Radiator Upper Insulator (1) - Install

  2. GM6382741Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket (1) - Install

  3. GM6382740Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Radiator Upper Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

  4. GM6382636Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  5. Intake Air Splash Shield Retainer (1) - Install [12x]
