Installation Procedure
Radiator Surge Tank (2) - Install
- Radiator Surge Tank Bolt (1) - Install and tighten - Fastener Specifications

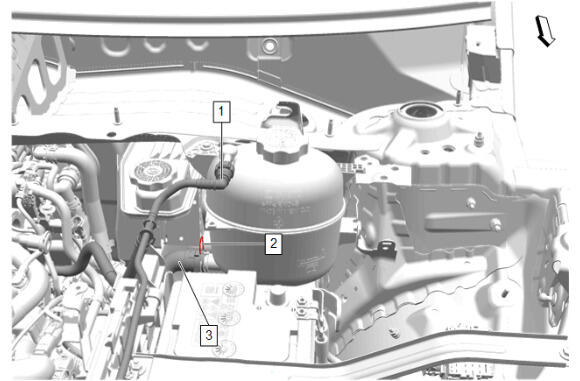

Radiator Surge Tank Outlet Hose (3) @ Radiator Surge Tank - Install
- Retainer (2) - Install
- Radiator Surge Tank Inlet Hose (1) @ Radiator Surge Tank - Install
- Engage the retaining clip at the radiator surge tank inlet hose (1).
- Install hose retainers as necessary.
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
CAUTION:
Refer to Fastener Caution .
NOTE:
Quantity of retainers may vary based on option content.
