Installation Procedure

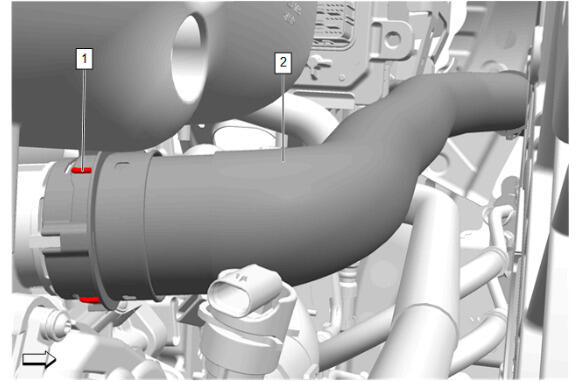

  1. GM6382668Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) - Install

  2. Retainer (1) - Engage
  3. Install the hose retainers as necessary.

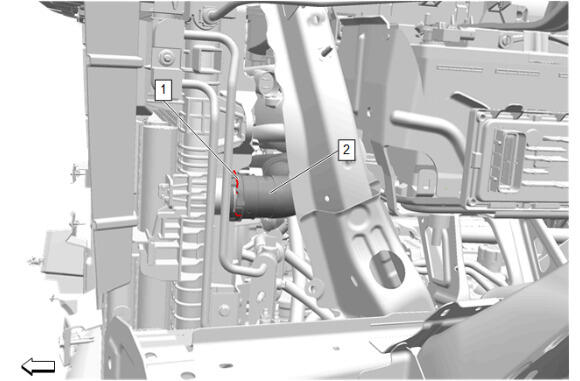

  4. GM6382667Courtesy of GENERAL MOTORS COMPANY

    Radiator Inlet Hose (2) @ Engine Radiator - Install

  5. Retainer (1) - Engage
  6. GM6382636Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  7. Intake Air Splash Shield Retainer (1) - Install [12x]
  8. GM6405033Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (4) - Install

    9. CAUTION:

    Refer to Fastener Caution .

  9. Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
  10. Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
  11. Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
  12. Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
  13. GM6396380Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

  14. GM6382159Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap (1) - Remove

  15. GM6382158Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Install

  16. GM6382159Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap (1) - Install

  17. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
  18. Start the engine and check for coolant leaks.
