Installation Procedure

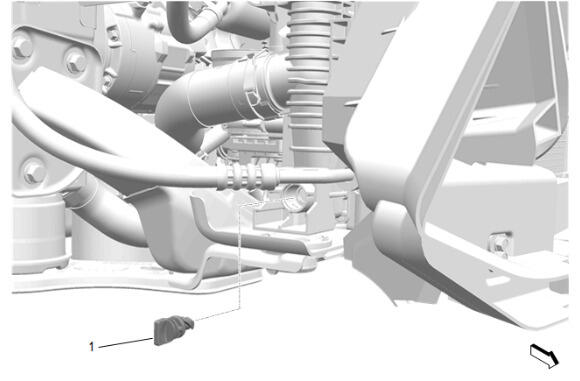

  1. GM6382662Courtesy of GENERAL MOTORS COMPANY

    Radiator Drain Cock (1) - Install

  2. Rotate the radiator drain cock clockwise to close. (1)
  3. Remove the drain hose from the radiator drain port.
  4. Remove the drain pan.
  5. Front Wheelhouse Liner- Right Side - Install - Front Wheelhouse Liner Replacement
  6. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
  7. Start the engine and check for coolant leaks.
