Removal Procedure

  1. GM6399520Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Instrument Panel Upper Trim Panel Cover (1) - Remove

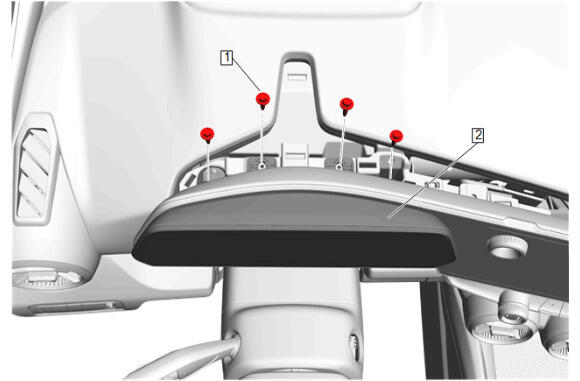

  3. GM6278070Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster Bolt (1) - Remove [4x]

  4. Disconnect the electrical connector.
  5. Instrument Panel Cluster Control Module (2) - Remove
  6. GM6381874Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bolt (1) - Remove [7x]

  7. Disconnect the electrical connector.
  8. Radio Control (2) - Remove

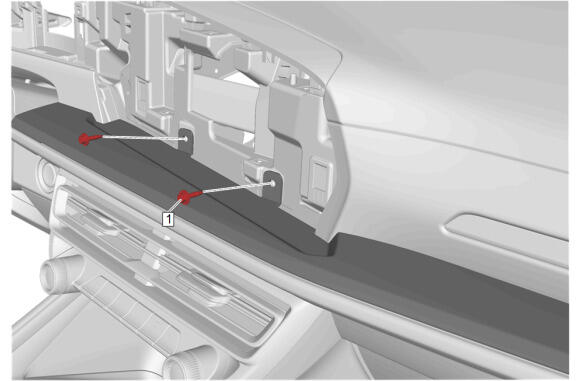

  9. GM6399519Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique Bolt (1) - Remove [2x]

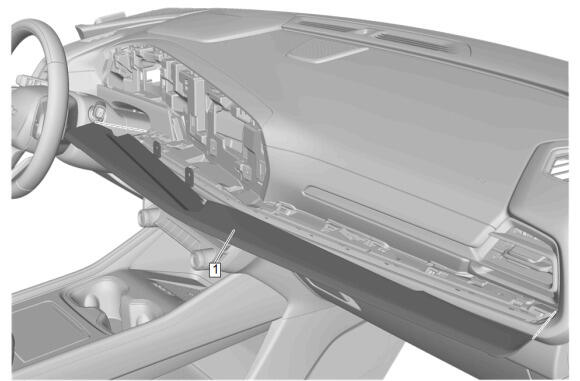

  10. GM6399552Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (1) - Remove

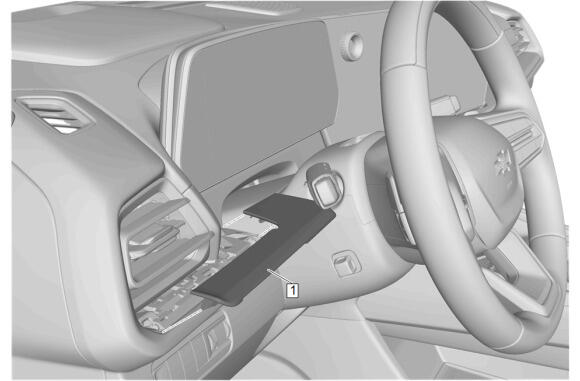

  11. GM6399518Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  12. Instrument Panel Trim Plate Applique - Left Side (1) - Remove

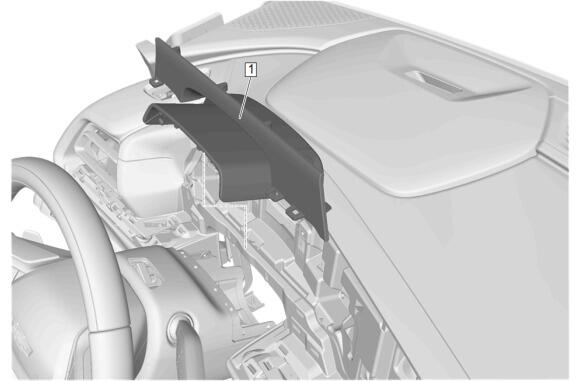

  13. GM6399515Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the installed position of the instrument panel steering column opening closeout.

    Using a flat-bladed plastic trim tool, release the retaining clips.

  14. Instrument Panel Steering Column Opening Closeout (1) - Remove
