Installation Procedure

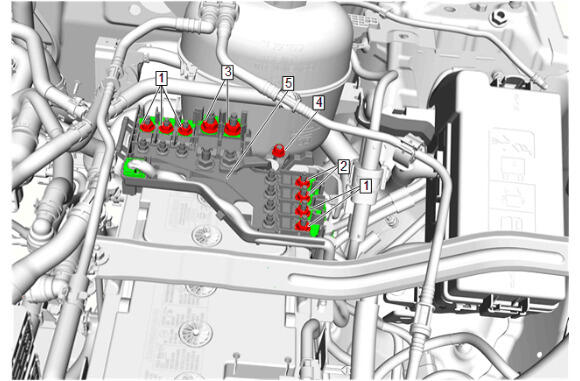

Battery Distribution Engine Compartment Fuse Block (5) - Install
- Install wiring harness terminals.
- Battery Negative Post Clamp Nut (4) - Install and tighten - Fastener Specifications
- Battery Positive Cable Junction Block Nut (3) - Install and tighten [2x] - Fastener Specifications
- Engine Wiring Harness Fuse Block Nut (2) - Install and tighten [2x] - Fastener Specifications
- Body Front Wiring Harness Nut (1) - Install and tighten [5x] - Fastener Specifications
- Connect the electrical connector.

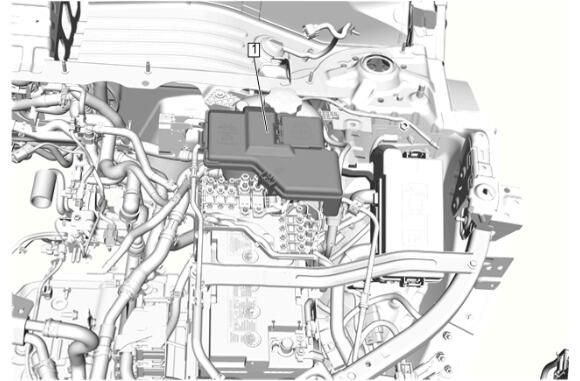

Power Distributor Fuse Block Cover (1) - Install
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
