S3B Automatic Transmission Electronic Control

Courtesy of GENERAL MOTORS COMPANY

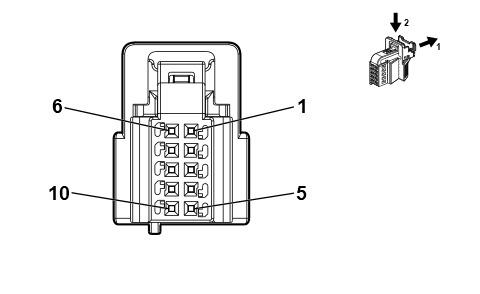

Connector Part Information Harness Type: Instrument Panel Wiring Harness OEM Connector: 13518418 Service Connector: 13518418 Description: 10-Way F 0.64 MQS Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19300632	J-35616-64B (L-BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	RD / VT	2640	Battery Positive Voltage	I
2	0.35	WH / RD	480	Engine Control Vehicle Sensors 5 Volt Reference 1	I
3	0.35	BK / GN	580	Engine Control Sensors Low Reference 2	I
4	0.35	BK / YE	548	Engine Control Sensors Low Reference 1	I
5	0.35	BN	10515	Electronic Transmission Range Select Shifter Position Sensor 1 Signal	I
6	0.35	GN / WH	10807	Engine Control Module LIN Bus 2	I
7	-	-	-	Not Occupied	-	-
8	0.35	GY	10518	Electronic Transmission Range Select Shifter Position Sensor 2 Signal	I
9	0.35	BK / WH	3251	Signal Ground	I
10	0.35	BU / RD	460	Engine Control Sensors 5 Volt Reference 1	I
