Installation Procedure

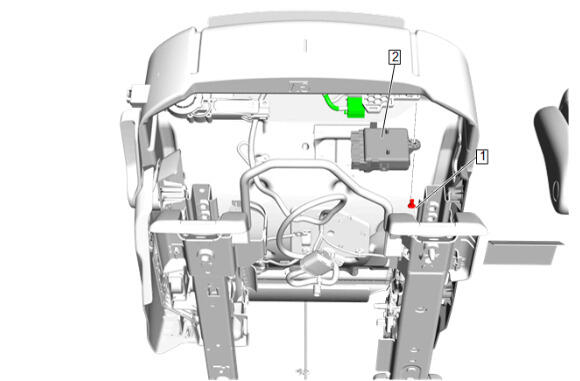

  1. GM6387245Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Rear Seat Heater Control Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Seat Heater Control Module Fastener (1) - Install and tighten - Fastener Specifications
