Installation Procedure

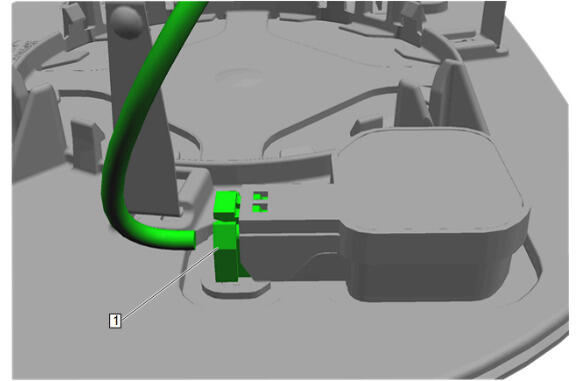

Support module from back side and fully install plug (1).
- Connect all electrical connectors.

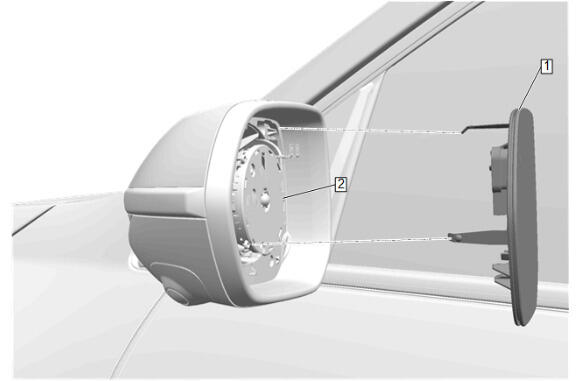

Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

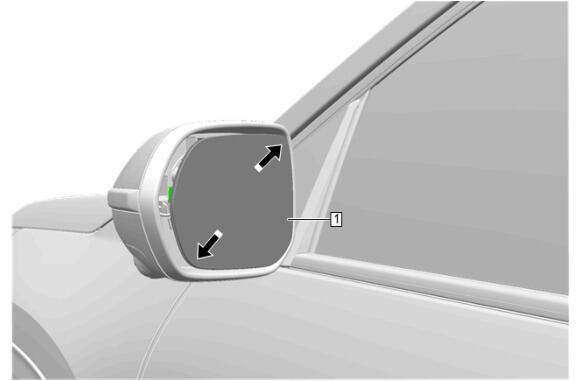

Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.
- Remove the masking tape from the outside rearview mirror glass (1).
- Inspect the outside rearview mirror for proper operation.
