Underbody Panel Component Locator

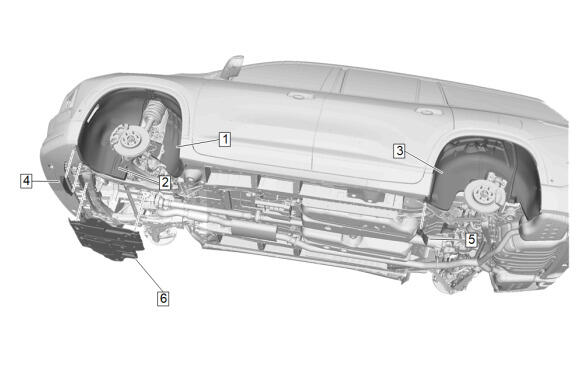

GM6411333

Courtesy of GENERAL MOTORS COMPANY

Underbody Panels

Callout	Component Name	-
1	Front Wheelhouse Liner Replacement	-
2	Front Compartment Splash Shield Replacement	-
3	Rear Wheelhouse Liner Replacement	-
4	Front Tire Front Air Deflector Replacement	-
5	Rear Tire Front Air Deflector Replacement (Upper) , or Rear Tire Front Air Deflector Replacement (Lower)	-
6	Underbody Front Air Deflector Replacement (Base) , or Underbody Front Air Deflector Replacement (Oil Filter Access)	-

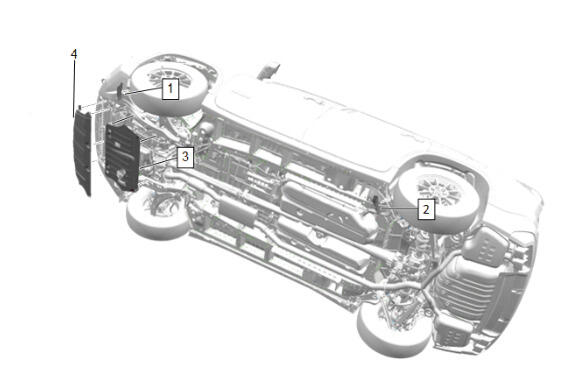

GM6741895

Courtesy of GENERAL MOTORS COMPANY

Underbody Panels (Z71)

Callout	Component Name	-
1	Front Tire Front Air Deflector Replacement	-
2	Rear Tire Front Air Deflector Replacement (Upper) , or Rear Tire Front Air Deflector Replacement (Lower)	-
3	Underbody Skid Shield Replacement	-
4	Underbody Splash Shield Replacement	-
