Fastener Specifications

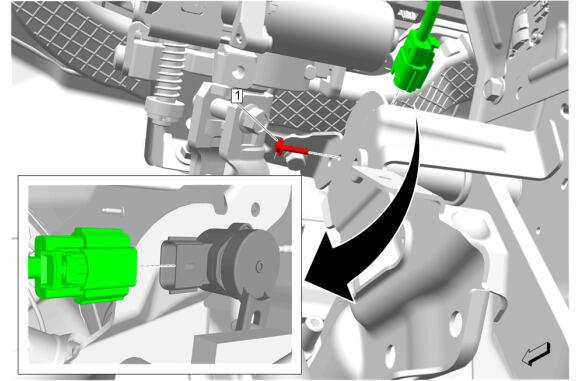

GM6423248Courtesy of GENERAL MOTORS COMPANY
Brake Pedal Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pedal Position Sensor Bolt - - 9 N.m (80 lb in) Brake Pedal Position Sensor Replacement

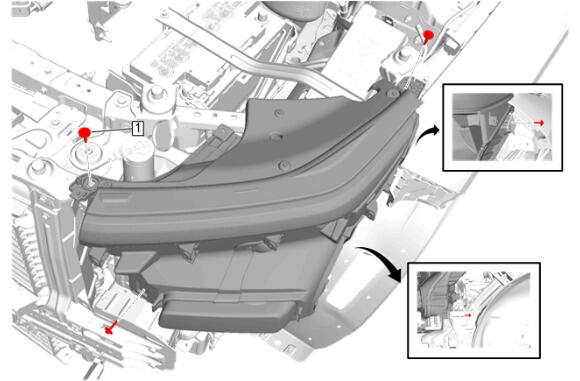

GM6423251Courtesy of GENERAL MOTORS COMPANY
Front Headlamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bolt [5x] - - 2.5 N.m (22 lb in) Front Headlamp Replacement

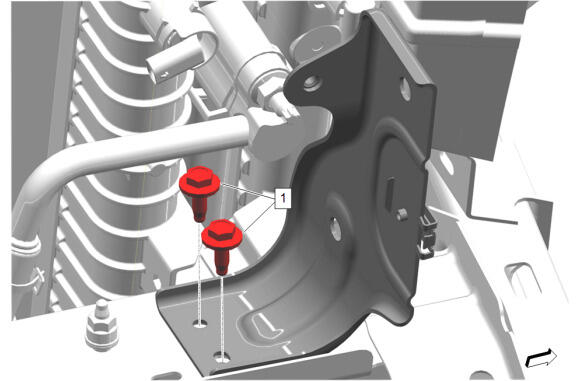

GM6640463Courtesy of GENERAL MOTORS COMPANY
Headlamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bracket Bolt [2x] - - 9 N.m (80 lb in) Headlamp Bracket Replacement

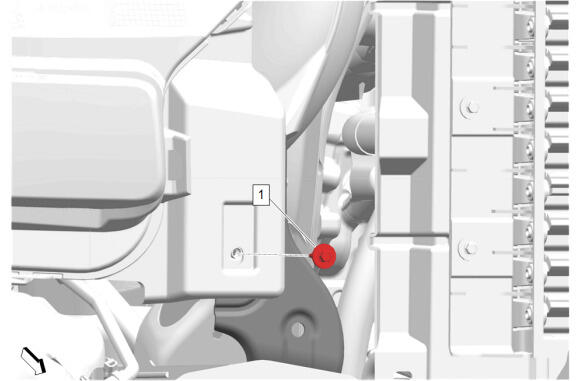

GM6640466Courtesy of GENERAL MOTORS COMPANY
Headlamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Headlamp Bracket Replacement

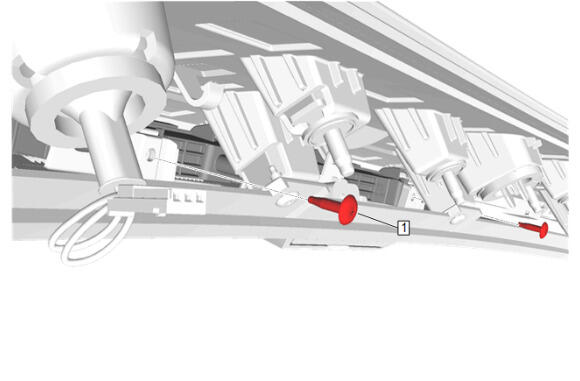

GM6389414Courtesy of GENERAL MOTORS COMPANY
High Mount Stop Lamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Mount Stop Lamp Bolt [2x] - - 2.5 N.m (22 lb in) High Mount Stop Lamp Replacement

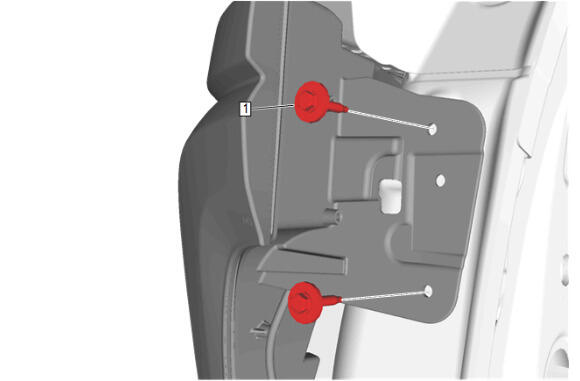

GM6389445Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bolt [2x] - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Replacement

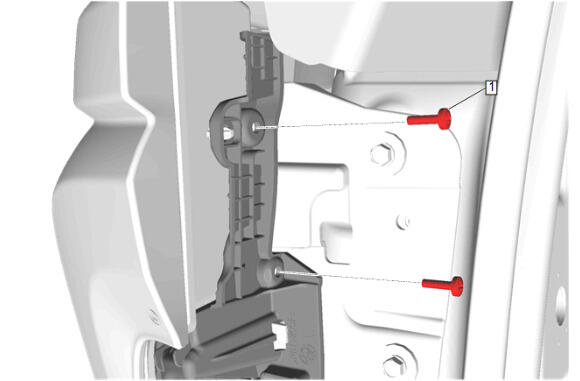

GM6389443Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bracket Bolt [2x] - - 1.35 N.m (12 lb in) Rear Body Structure Stop Lamp Replacement

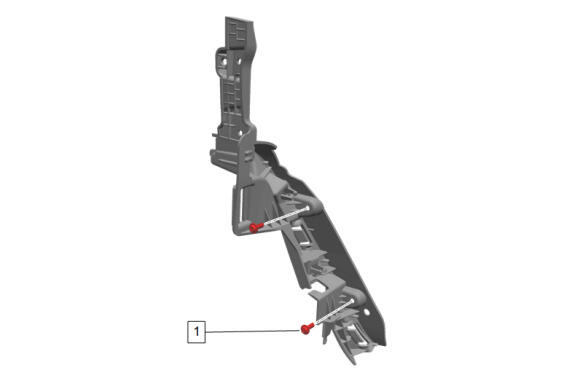

GM6609331Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bracket Bolt [2x] - - 1.35 N.m (12 lb in) Rear Body Structure Stop Lamp Replacement

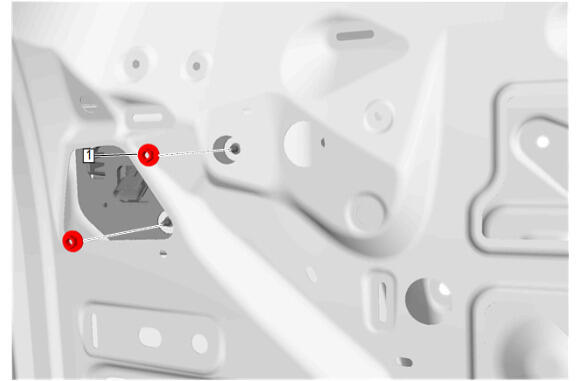

GM6389447Courtesy of GENERAL MOTORS COMPANY
Rear Closure Auxiliary Signal Lamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Auxiliary Signal Lamp Nut [2x] - - 4.7 N.m (42 lb in) Rear Closure Auxiliary Signal Lamp Replacement

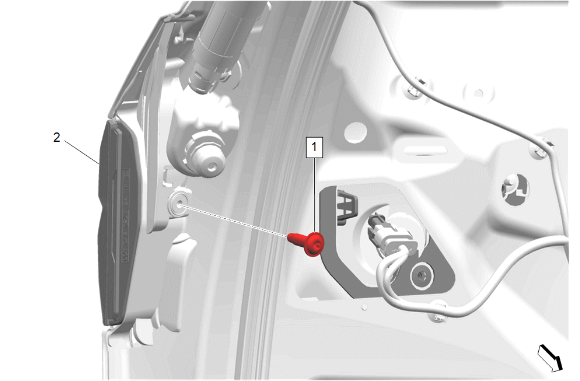

GM6555899Courtesy of GENERAL MOTORS COMPANY
Rear Closure Auxiliary Signal Lamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Signal Lamp Bolt - - 4.7 N.m (42 lb in) Rear Closure Auxiliary Signal Lamp Replacement

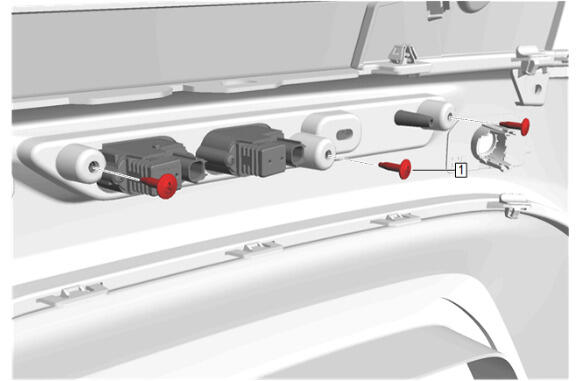

GM6389449Courtesy of GENERAL MOTORS COMPANY
Rear Fascia Signal Lamp

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Fascia Signal Lamp Screw [3x] - - 9 N.m (80 lb in) Rear Fascia Signal Lamp Replacement
