Fastener Specifications

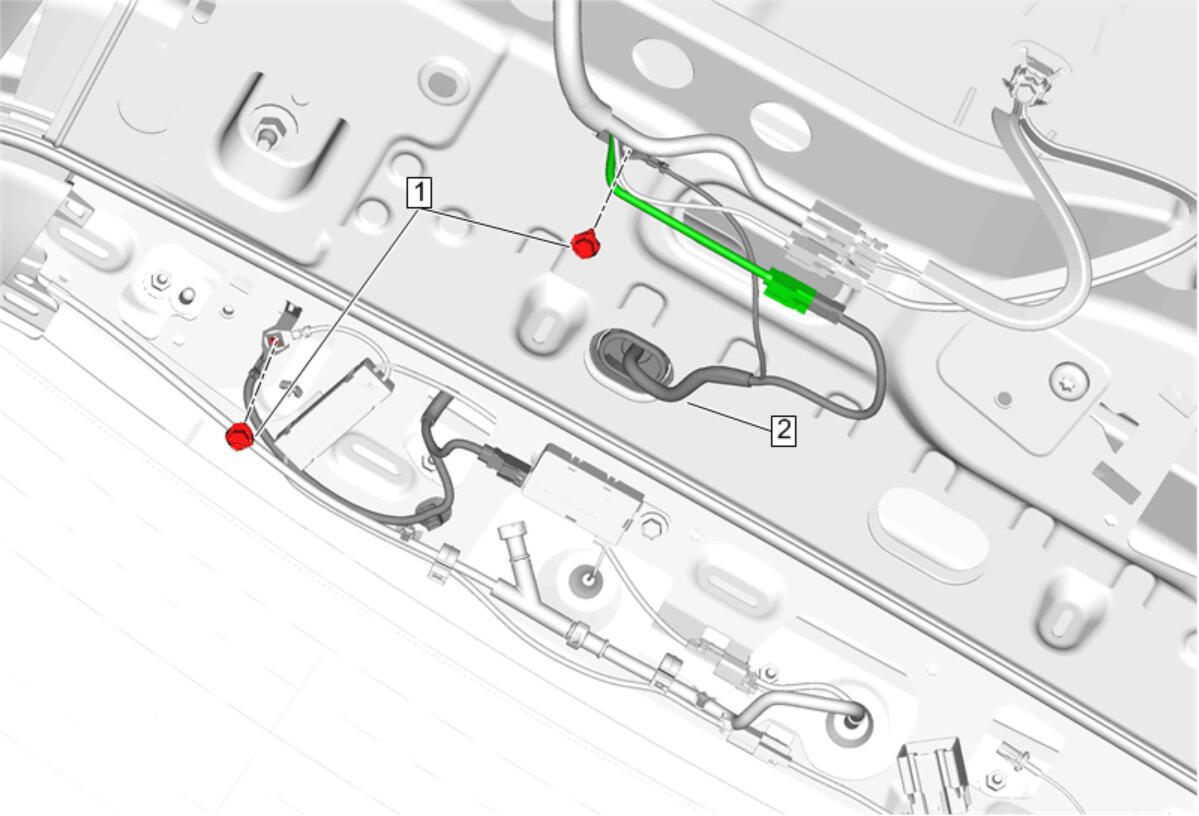

GM4769567Courtesy of GENERAL MOTORS COMPANY
Antenna Coaxial Cable - Body

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Antenna Coaxial Cable Bolt [2x] - - 9 N.m (80 lb in) Antenna Coaxial Cable Replacement - Body
GM6380193Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Communication Interface Module Bracket Bolt [2x] - - 2.5 N.m (22 lb in) Communication Interface Module Bracket Replacement

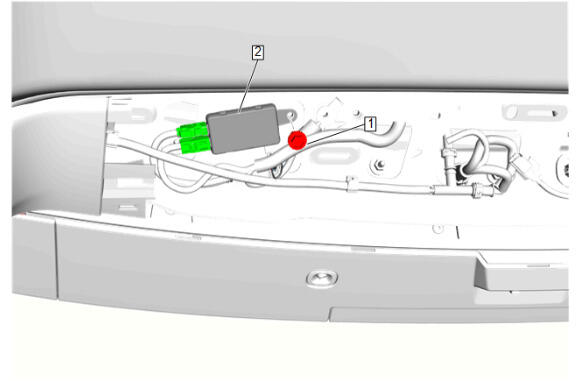

GM6382364Courtesy of GENERAL MOTORS COMPANY
Digital Radio Transceiver Module Antenna

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Digital Radio Transceiver Module Antenna Bolt - - 9 N.m (80 lb in) Digital Radio Transceiver Module Antenna Replacement

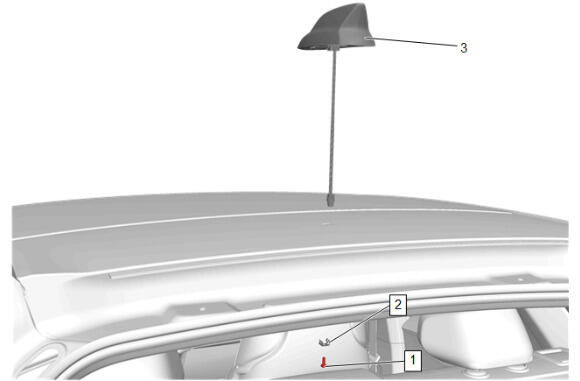

GM5950699Courtesy of GENERAL MOTORS COMPANY
High Frequency Antenna

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Frequency Antenna Bolt - - 9 N.m (80 lb in) High Frequency Antenna Replacement

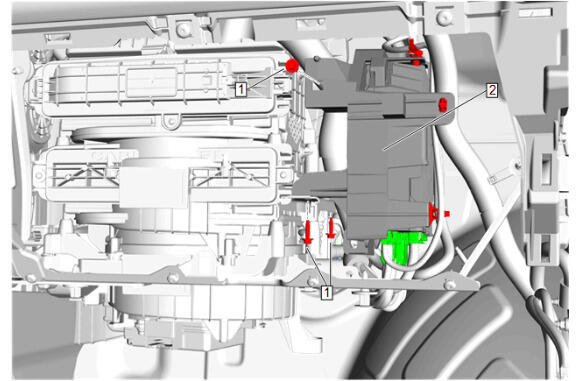

GM6440767Courtesy of GENERAL MOTORS COMPANY
Radio

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Radio Replacement

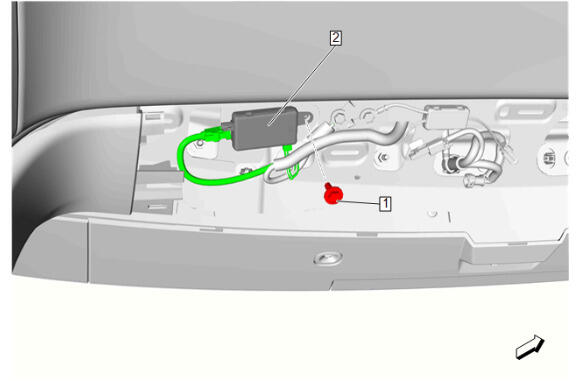

GM6482282Courtesy of GENERAL MOTORS COMPANY
Radio Antenna Amplifier

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio AM Antenna Signal Filter Module Bolt - - 9 N.m (80 lb in) Radio Antenna Amplifier Replacement

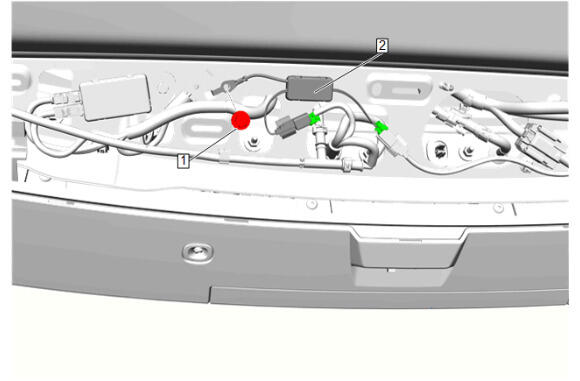

GM6382343Courtesy of GENERAL MOTORS COMPANY
Radio AM Antenna Signal Filter Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio AM Antenna Signal Filter Module Bolt - - 9 N.m (80 lb in) Radio AM Antenna Signal Filter Module Replacement

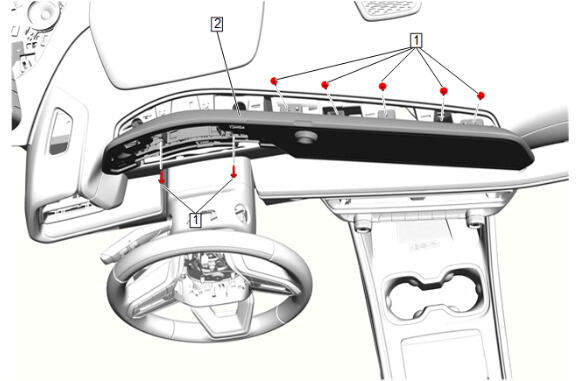

GM6381874Courtesy of GENERAL MOTORS COMPANY
Radio Control

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Control Bolt [7x] - - 2.5 N.m (22 lb in) Radio Control Replacement

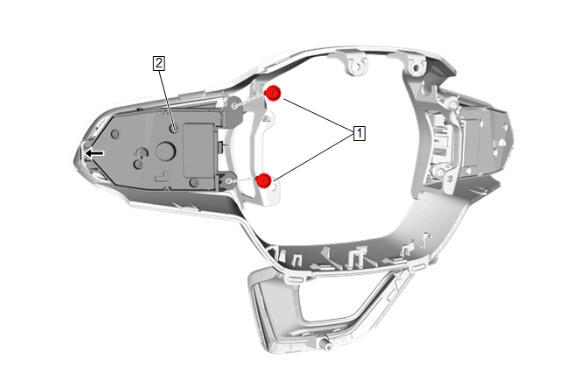

GM6273986Courtesy of GENERAL MOTORS COMPANY
Radio Control Switch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cruise Control Switch Bolt @ Radio Control Switch [2x] - - 10 N.m (89 lb in) Radio Control Switch Replacement - Steering Wheel (N5C) , or Radio Control Switch Replacement - Steering Wheel (N53 / N5V)

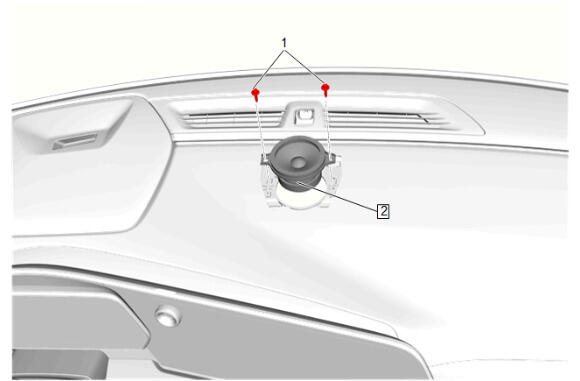

GM6380478Courtesy of GENERAL MOTORS COMPANY
Radio Front Center Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Front Center Speaker Bolt [2x] - - 2.5 N.m (22 lb in) Radio Front Center Speaker Replacement

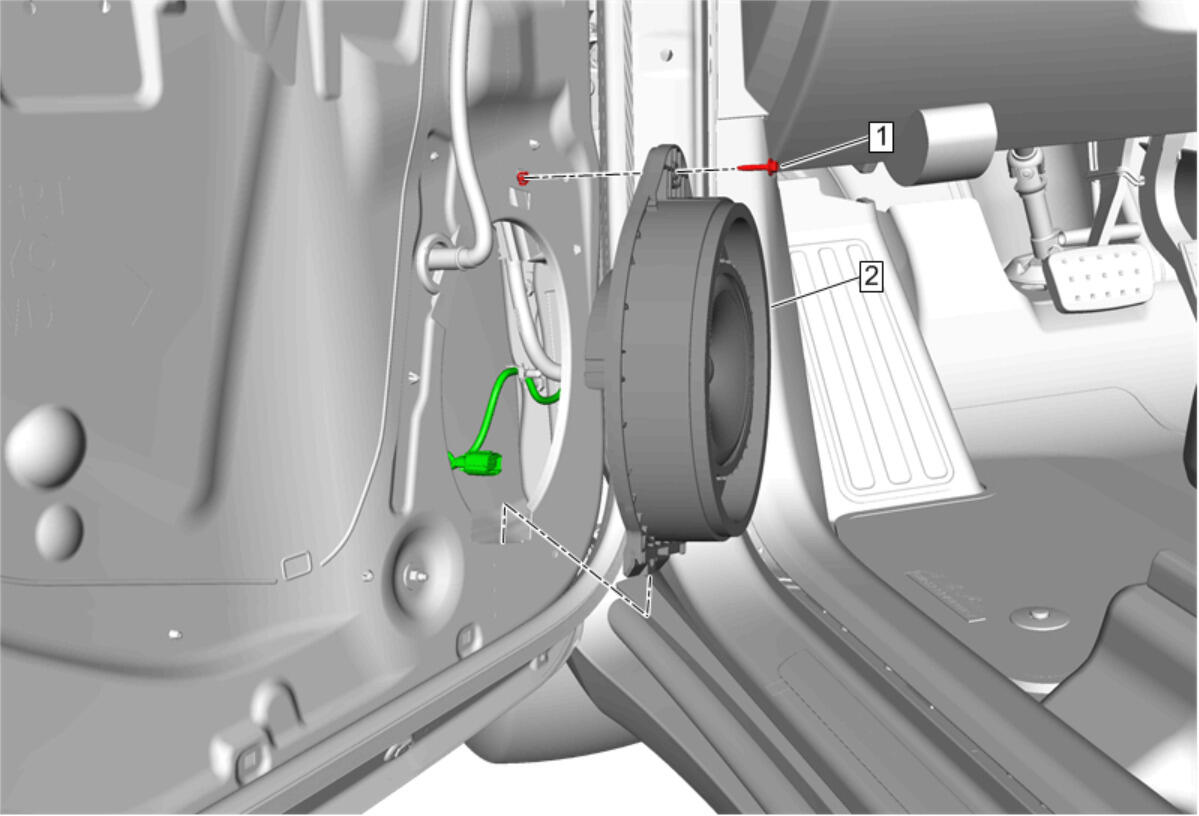

GM4751352Courtesy of GENERAL MOTORS COMPANY
Radio Front Side Door Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Front Side Door Speaker Bolt - - 2.5 N.m (22 lb in) Radio Front Side Door Speaker Replacement

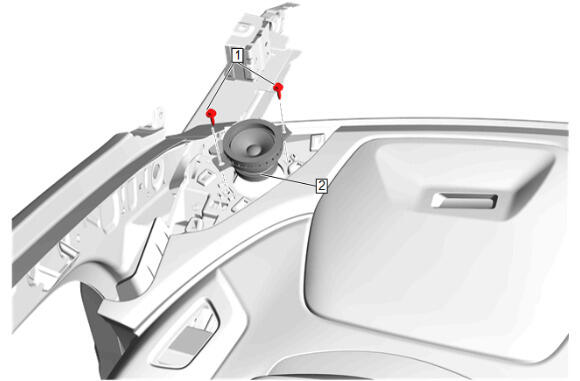

GM6380485Courtesy of GENERAL MOTORS COMPANY
Radio Front Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Front Speaker Bolt [2x] - - 2.5 N.m (22 lb in) Radio Front Speaker Replacement

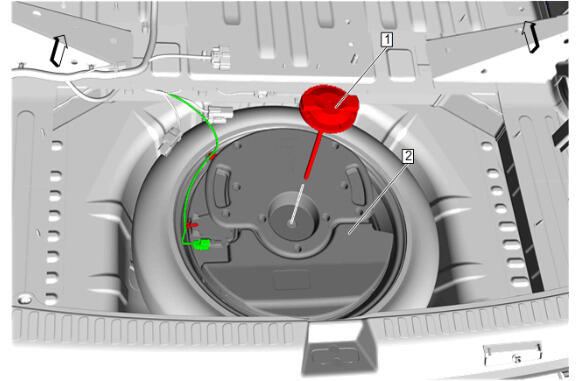

GM6458413Courtesy of GENERAL MOTORS COMPANY
Radio Rear Compartment Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Rear Compartment Speaker Bolt - - 3.5 N.m (31 lb in) Radio Rear Compartment Speaker Replacement

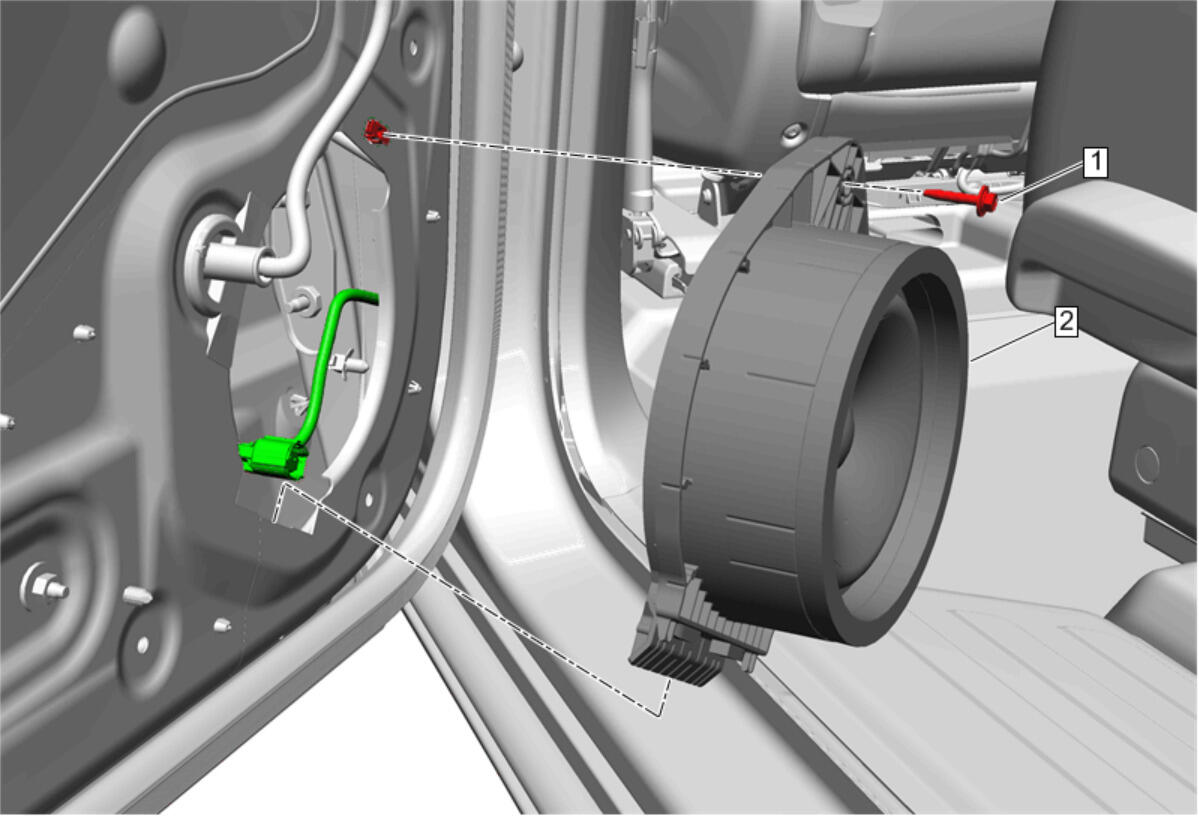

GM4751378Courtesy of GENERAL MOTORS COMPANY
Radio Rear Side Door Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Rear Side Door Speaker Bolt - - 2.5 N.m (22 lb in) Radio Rear Side Door Speaker Replacement

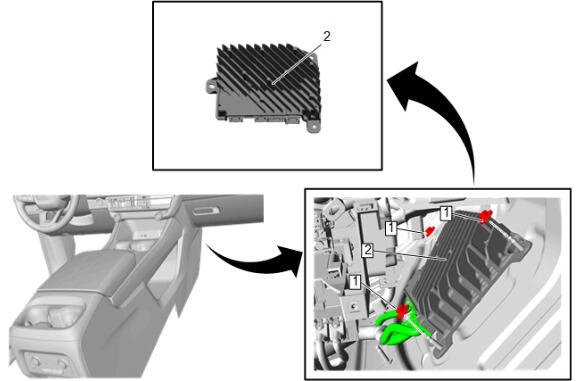

GM6382659Courtesy of GENERAL MOTORS COMPANY
Radio Speaker Amplifier

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Speaker Amplifier Nut [3x] - - 6 N.m (53 lb in) Radio Speaker Amplifier Replacement

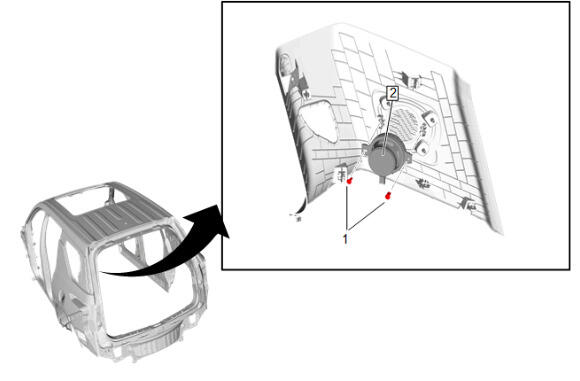

GM6380296Courtesy of GENERAL MOTORS COMPANY
Radio Quarter Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Quarter Speaker Bolt [2x] - - 2.5 N.m (22 lb in) Radio Quarter Speaker Replacement
GM6380296Courtesy of GENERAL MOTORS COMPANY
Radio Quarter Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Quarter Speaker Bolt [2x] - - 2.5 N.m (22 lb in) Radio Quarter Speaker Replacement

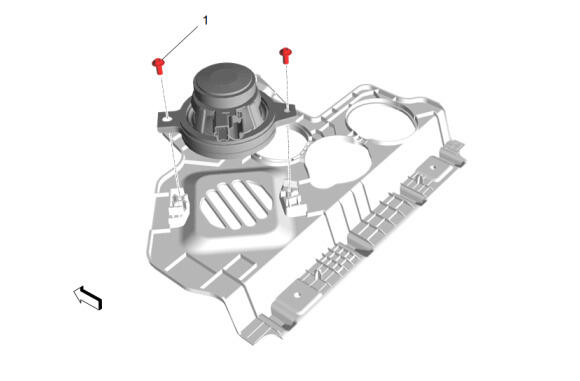

GM6595845Courtesy of GENERAL MOTORS COMPANY
Regulatory Emergency Call Backup Speaker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Regulatory Emergency Call Backup Speaker Bolt [2x] - - 0.8 N.m (7 lb in) Regulatory Emergency Call Backup Speaker Replacement

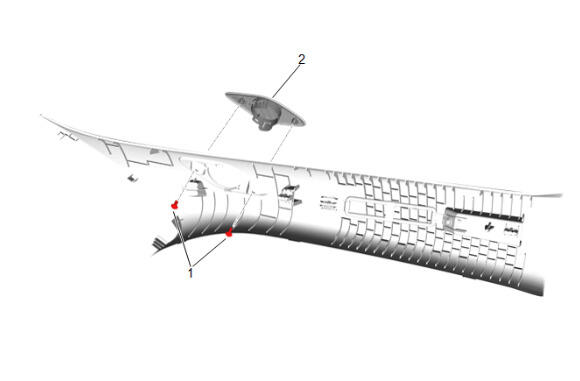

GM6380342Courtesy of GENERAL MOTORS COMPANY
Windshield Side Garnish Molding Speaker Grille

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Side Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Side Garnish Molding Speaker Grille Replacement
