Fastener Specifications

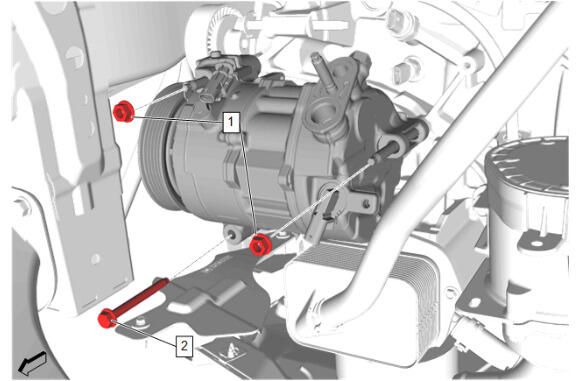

GM6385403Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Nut [2x] - - 22 N.m (16 lb ft) Air Conditioning Compressor Replacement
2 Air Conditioning Compressor Bolt - - 22 N.m (16 lb ft) Air Conditioning Compressor Replacement

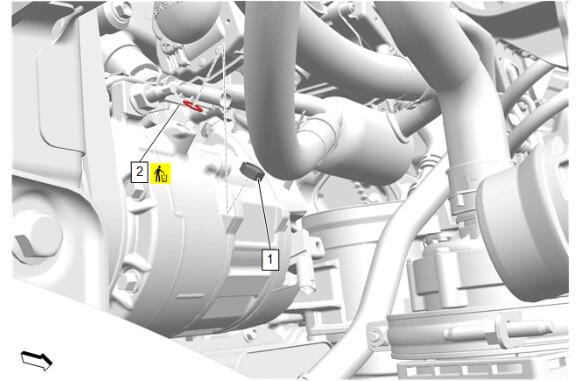

GM6413797Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Washer Yes - - Air Conditioning Compressor Oil Drain Plug Replacement
2 Air Conditioning Compressor Oil Drain Plug - - 30 N.m (22 lb ft) Air Conditioning Compressor Oil Drain Plug Replacement

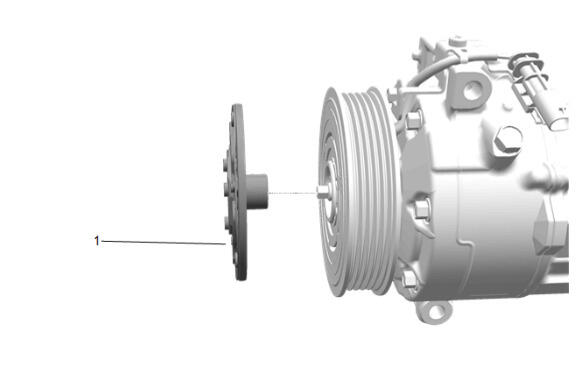

GM6385425Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Clutch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Clutch Drive Plate - - 35 N.m (26 lb ft) Air Conditioning Clutch Replacement

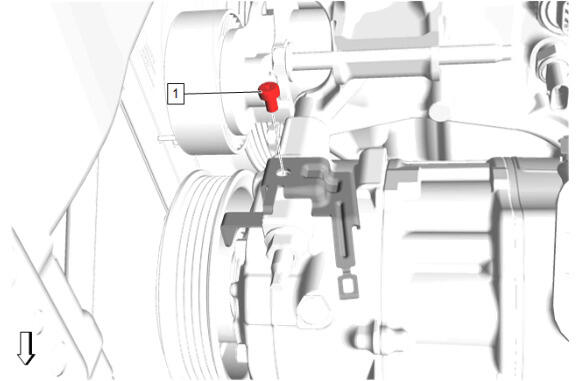

GM6385410Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor Bracket Bolt - - 4 N.m (35 lb in) Air Conditioning Compressor Bracket Replacement

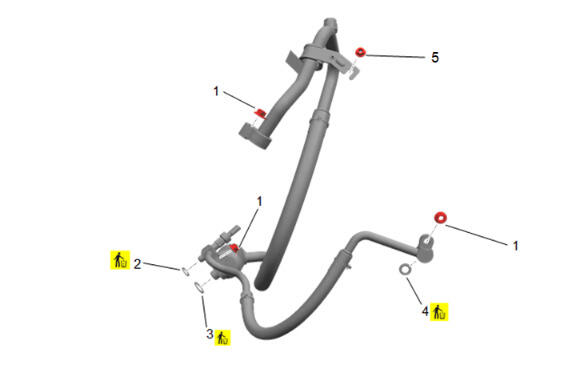

GM6385424Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Compressor and Condenser Hose

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Compressor and Condenser Hose Nut [3x] - - 22 N.m (16 lb ft) Air Conditioning Compressor and Condenser Hose Replacement
2 Air Conditioning Compressor and Condenser Hose Seal - Large Yes - - Air Conditioning Compressor and Condenser Hose Replacement
3 Air Conditioning Condenser Hose Seal Yes - - Air Conditioning Compressor and Condenser Hose Replacement
4 Air Conditioning Condenser Hose Seal Yes - - Air Conditioning Compressor and Condenser Hose Replacement
5 Air Conditioning Compressor and Condenser Hose Clamp Bracket Nut - - 9 N.m (80 lb in) Air Conditioning Compressor and Condenser Hose Replacement

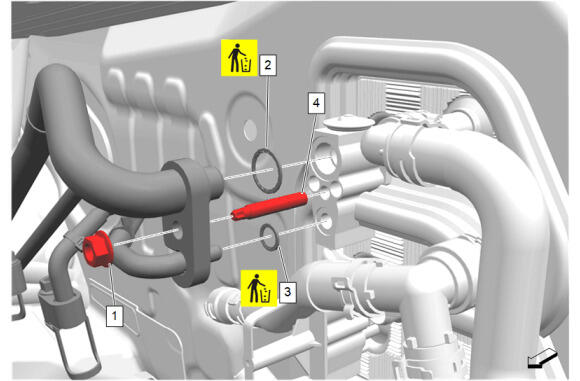

GM6652229Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Thermal Expansion Valve

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator Thermal Expansion Valve Hose Nut - - 22 N.m (16 lb ft) Air Conditioning Evaporator Thermal Expansion Valve Replacement
2 Air Conditioning Condenser Hose Seal Yes - - Air Conditioning Evaporator Thermal Expansion Valve Replacement
3 Air Conditioning Compressor Hose Seal Yes - - Air Conditioning Evaporator Thermal Expansion Valve Replacement
4 Air Conditioning Evaporator Thermal Expansion Valve Stud - - 6.25 N.m (55 lb in) Air Conditioning Evaporator Thermal Expansion Valve Replacement

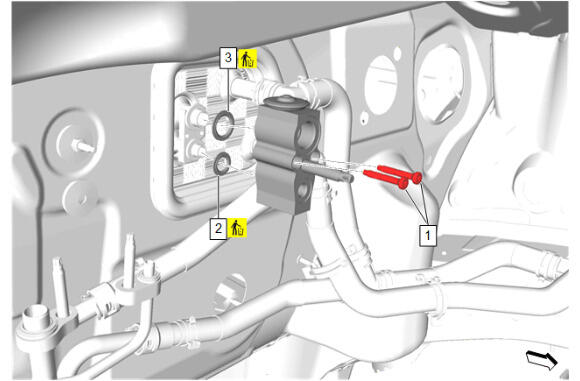

GM6385405Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Evaporator Thermal Expansion Valve @ Air Conditioning Evaporator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator Thermal Expansion Valve Bolt [2x] - - 7.4 N.m (65 lb in) Air Conditioning Evaporator Thermal Expansion Valve Replacement
2 Air Conditioning Evaporator Outlet Tube Seal Yes - - Air Conditioning Evaporator Thermal Expansion Valve Replacement
3 Air Conditioning Evaporator Inlet Tube Seal Yes - - Air Conditioning Evaporator Thermal Expansion Valve Replacement

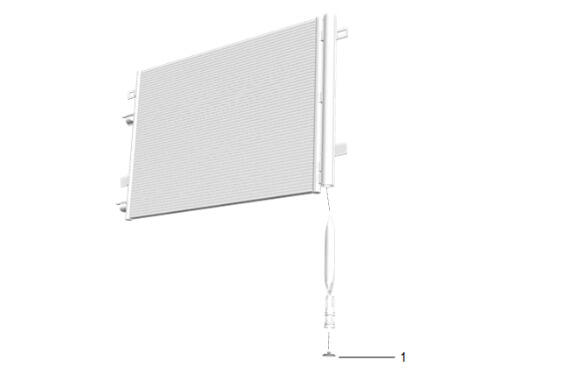

GM6385404Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Receiver and Dehydrator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Receiver and Dehydrator Cover - - 7 N.m (62 lb in) Air Conditioning Receiver and Dehydrator Replacement

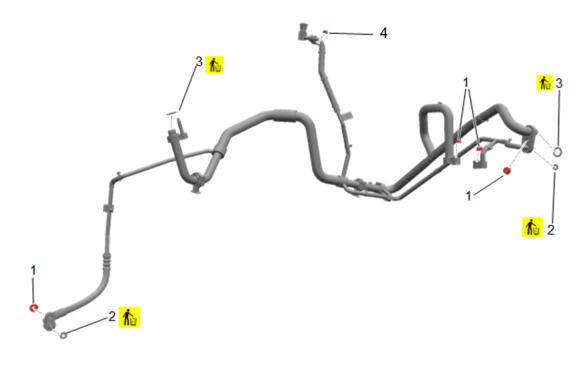

GM6659187Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Heat Exchanger

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Heat Exchanger Nut [4x] - - 22 N.m (16 lb ft) Air Conditioning Refrigerant Heat Exchanger Replacement
2 Air Conditioning Compressor and Condenser Hose Seal Yes - - Air Conditioning Refrigerant Heat Exchanger Replacement
3 Air Conditioning Condenser Hose Seal Yes - - Air Conditioning Refrigerant Heat Exchanger Replacement
4 Air Conditioning Evaporator Thermal Expansion Valve Hose Nut - - 9 N.m (80 lb in) Air Conditioning Refrigerant Heat Exchanger Replacement

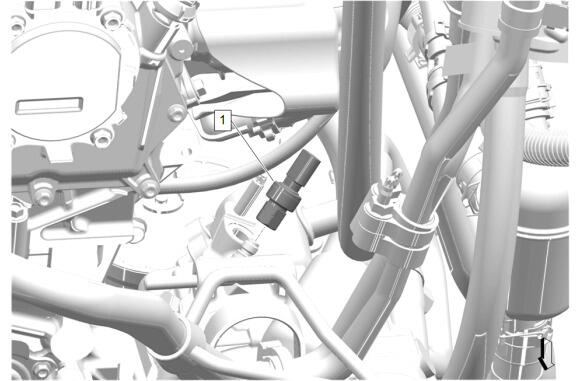

GM6745337Courtesy of GENERAL MOTORS COMPANY
Air Conditioning Refrigerant Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Refrigerant Pressure Sensor - - 7 N.m (62 lb in) Air Conditioning Refrigerant Pressure Sensor Replacement

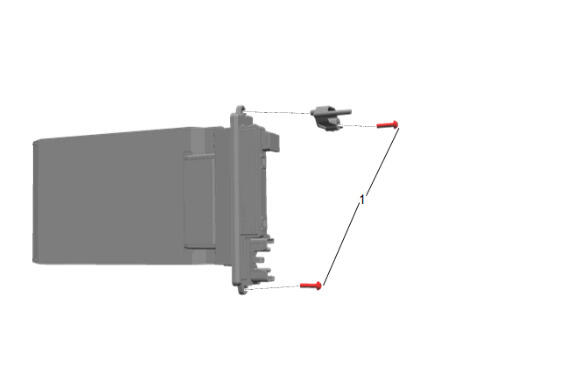

GM6385448Courtesy of GENERAL MOTORS COMPANY
Air Heater

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Air Heater Replacement

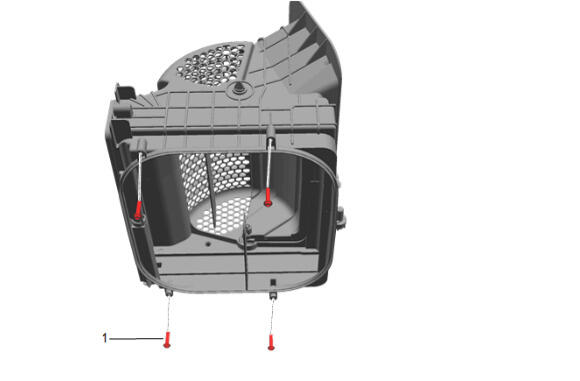

GM6385426Courtesy of GENERAL MOTORS COMPANY
Air Inlet Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [4x] - - 1.5 N.m (13 lb in) Air Inlet Housing Replacement

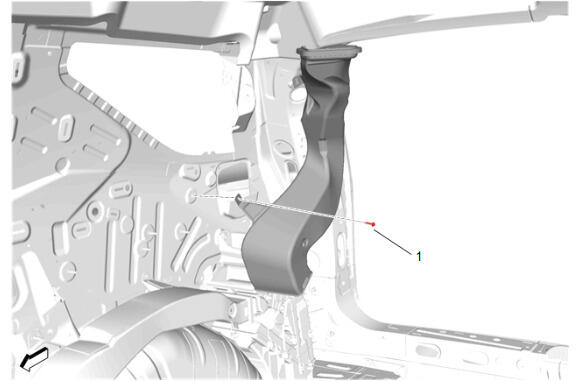

GM6385438Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Air Lower Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Heater Air Outlet Duct Bolt - - 2.5 N.m (22 lb in) Auxiliary Air Conditioning Air Lower Duct Replacement

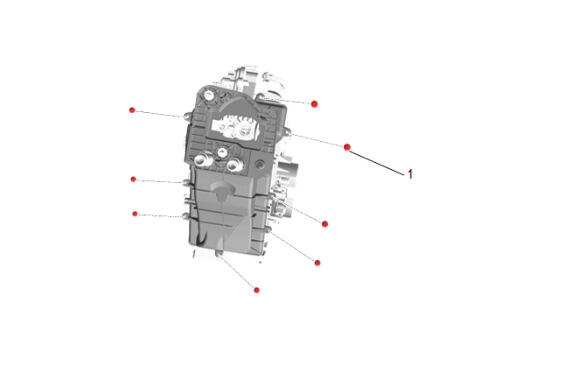

GM6382724Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator and Blower Case - Outboard

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Case Bolt [8x] - - 2.5 N.m (22 lb in) Auxiliary Air Conditioning Evaporator and Blower Case Replacement - Outboard (C69)

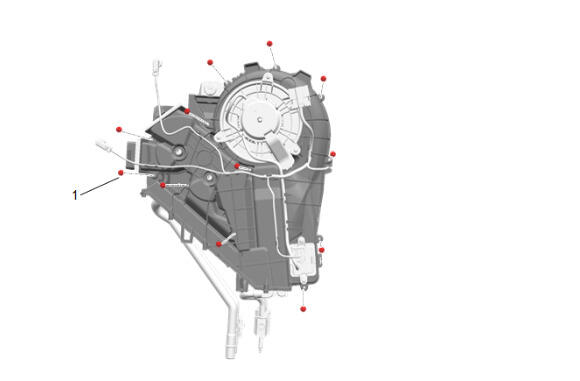

GM6382728Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator and Blower Case - Outboard

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Case Bolt [12x] - - 2.5 N.m (22 lb in) Auxiliary Air Conditioning Evaporator and Blower Case Replacement - Outboard (C69)

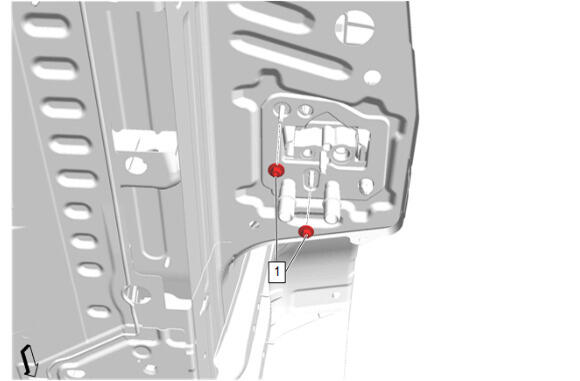

GM6382705Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Case Nut [2x] - - 9 N.m (80 lb in) Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation (C69)

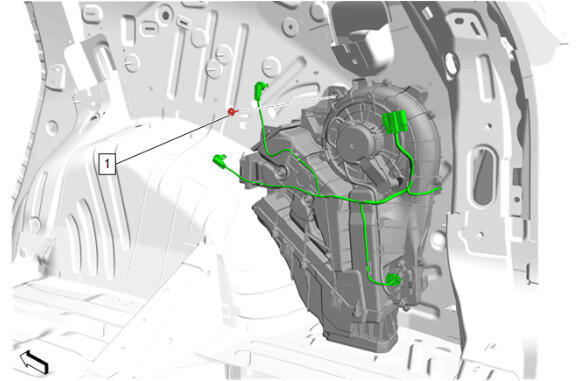

GM6385418Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Case Bolt - - 2.5 N.m (22 lb in) Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation (C69)

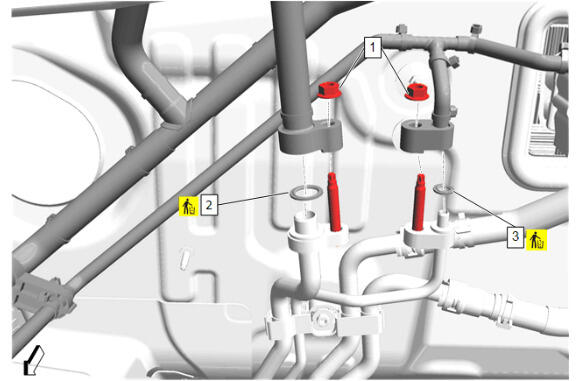

GM6385440Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Intermediate Tube - Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Intermediate Tube Nut [5x] - - 22 N.m (16 lb ft) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)
2 Air Conditioning Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)
3 Air Conditioning Compressor and Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)

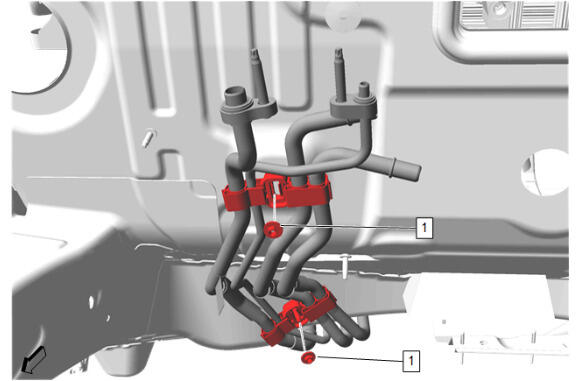

GM6385441Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Intermediate Tube - Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Intermediate Tube Nut [2x] - - 9 N.m (80 lb in) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)

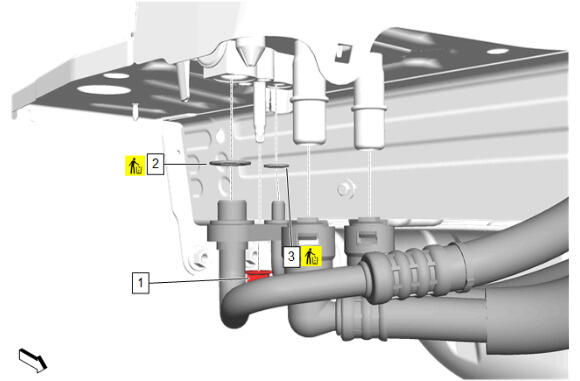

GM6385442Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Intermediate Tube - Auxiliary Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Intermediate Tube Nut - - 22 N.m (16 lb ft) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)
2 Air Conditioning Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)
3 Air Conditioning Compressor and Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)

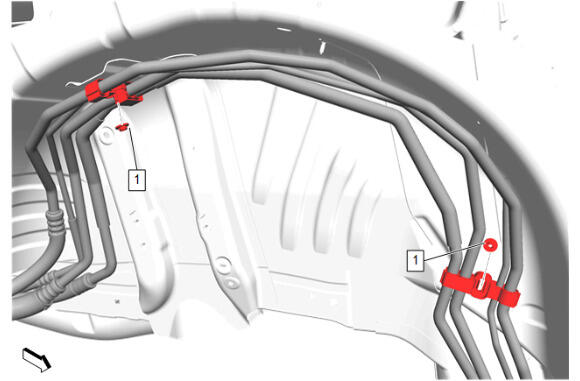

GM6385443Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Intermediate Tube - Right Rear

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Intermediate Tube Nut [2x] - - 9 N.m (80 lb in) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)

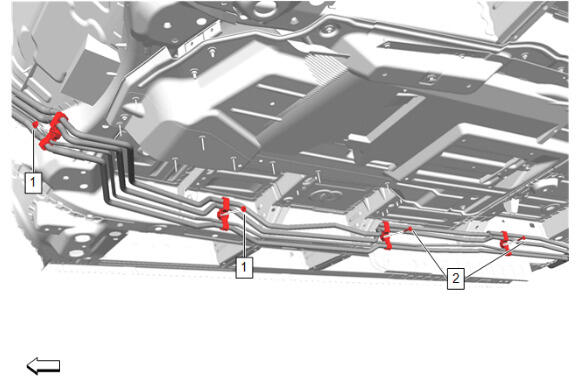

GM6385444Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Intermediate Tube - Underbody

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Intermediate Tube Nut [2x] - - 9 N.m (80 lb in) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)
2 Auxiliary Air Conditioning Evaporator Intermediate Tube Bolt [2x] - - 9 N.m (80 lb in) Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (AWD) , or Auxiliary Air Conditioning Evaporator Intermediate Tube Replacement (FWD)

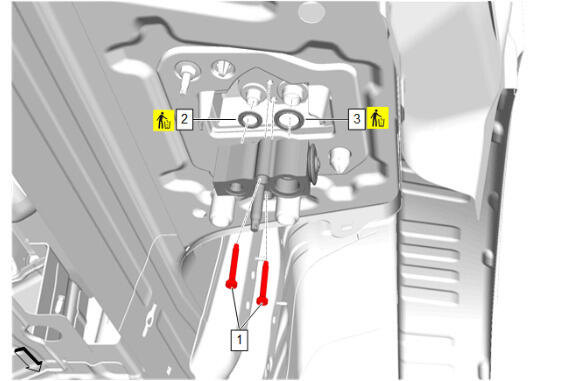

GM6385401Courtesy of GENERAL MOTORS COMPANY
Auxiliary Air Conditioning Evaporator Thermal Expansion Valve

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Bolt [2x] - - 7.4 N.m (65 lb in) Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement
2 Air Conditioning Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement
3 Air Conditioning Compressor and Condenser Hose Seal Yes - - Auxiliary Air Conditioning Evaporator Thermal Expansion Valve Replacement

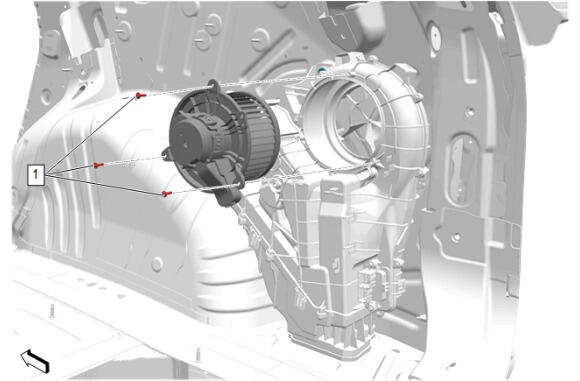

GM6385402Courtesy of GENERAL MOTORS COMPANY
Auxiliary Blower Motor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Air Conditioning Evaporator and Blower Case Bolt - - 2.5 N.m (22 lb in) Auxiliary Blower Motor Replacement

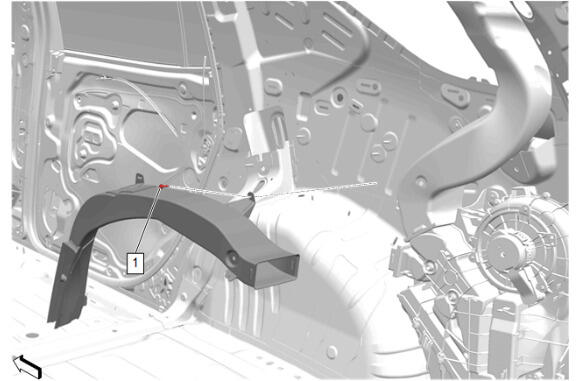

GM6385417Courtesy of GENERAL MOTORS COMPANY
Auxiliary Heater Air Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Heater Air Outlet Duct Bolt - - 2.5 N.m (22 lb in) Auxiliary Heater Air Outlet Duct Replacement

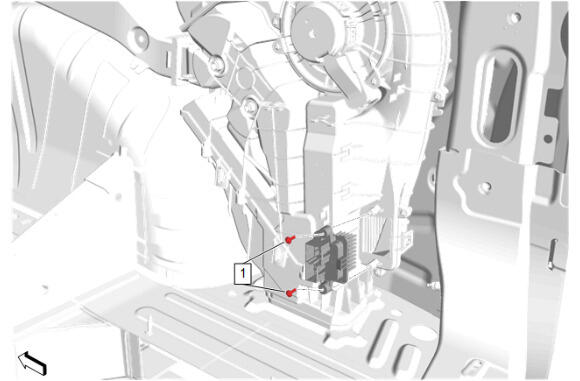

GM6385407Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Blower Motor Control Module Bolt [2x] - - 1.5 N.m (13 lb in) Blower Motor Control Module Replacement

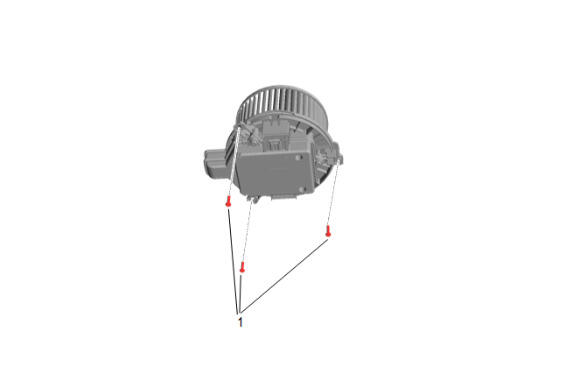

GM6385411Courtesy of GENERAL MOTORS COMPANY
Blower Motor Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [3x] - - 1.5 N.m (13 lb in) Blower Motor Replacement

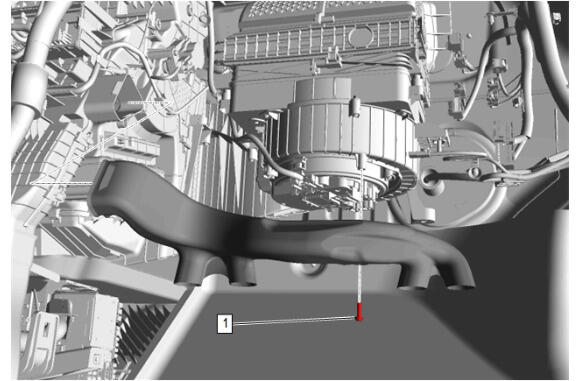

GM6640431Courtesy of GENERAL MOTORS COMPANY
Floor Front Air Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Floor Front Air Outlet Duct Bolt - - 1.5 N.m (13 lb in) Floor Front Air Outlet Duct Replacement (Left side) , or Floor Front Air Outlet Duct Replacement (Right side)

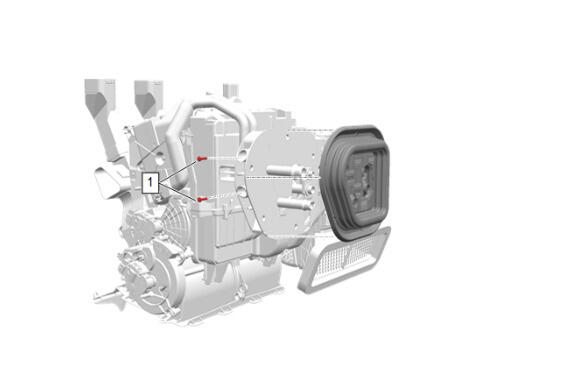

GM6385453Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Upper Case - Blower Upper Case

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

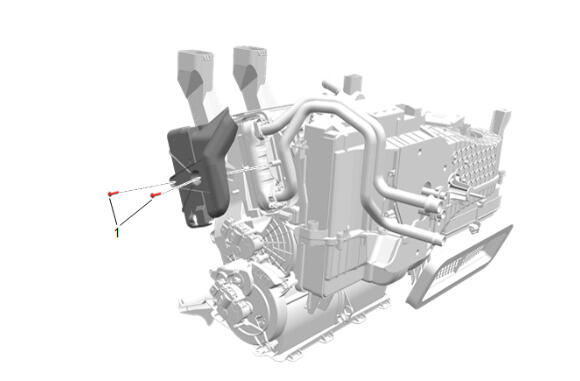

GM6385454Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Upper Case - Heater Core Cover

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement
Heater Core Cover Replacement
GM6385455Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Lower Case

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [6x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

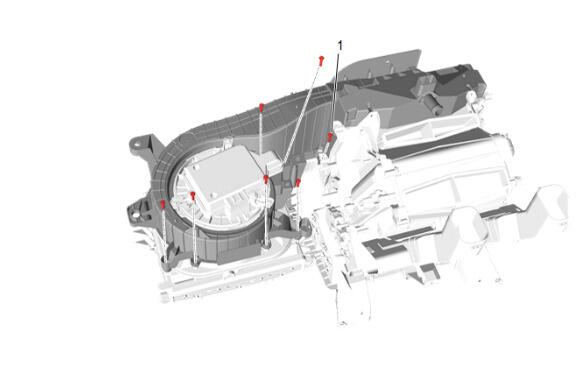

GM6385456Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Lower Case

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)

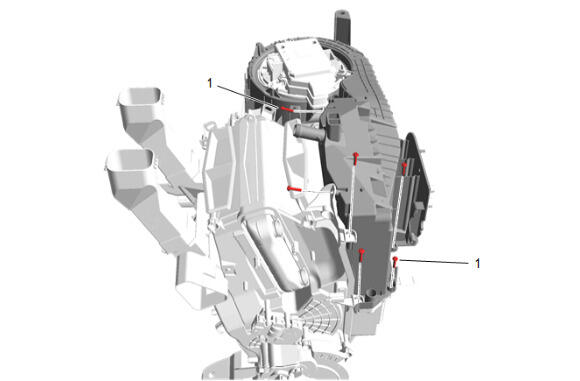

1 Air Conditioning Evaporator and Blower Module Bolt [7x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

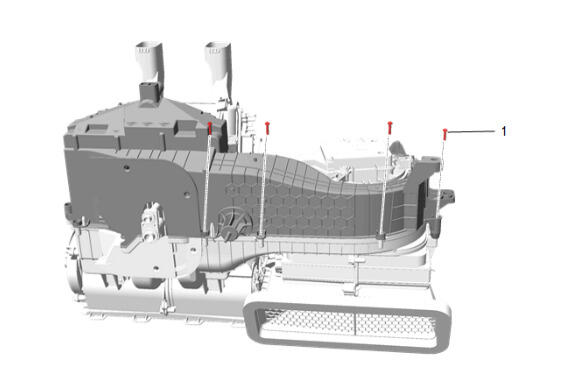

GM6385457Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Lower Case

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [7x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

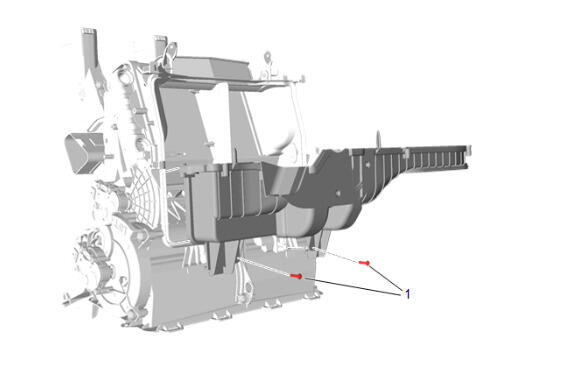

GM6385458Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Upper Case

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Conditioning Evaporator and Blower Module Bolt [2x] - - 1.5 N.m (13 lb in) Heater and Air Conditioning Evaporator and Blower Upper Case Replacement

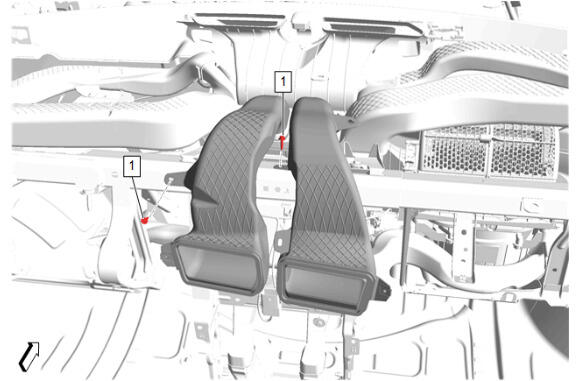

GM6385446Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Air Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Air Outlet Duct Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Air Outlet Duct Replacement

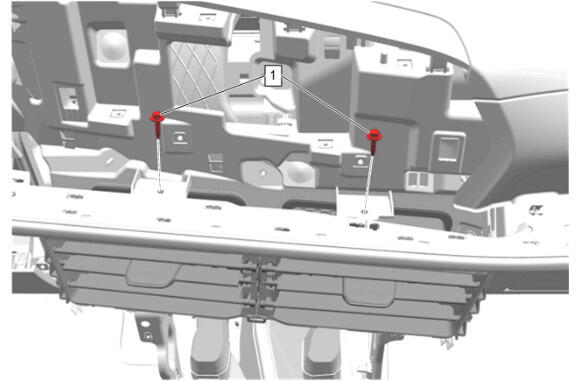

GM6652782Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Air Outlet

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Center Air Outlet Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Center Air Outlet Replacement

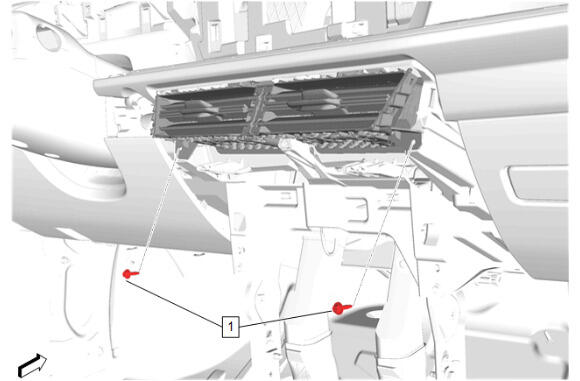

GM6385419Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Air Outlet

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Center Air Outlet Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Center Air Outlet Replacement

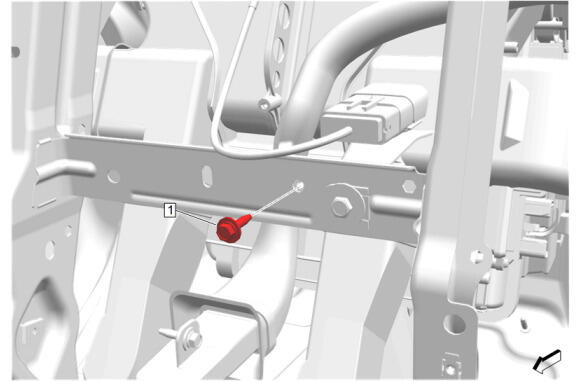

GM6639205Courtesy of GENERAL MOTORS COMPANY
Radio Cooling Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radio Cooling Duct Bolt - - 2.5 N.m (22 lb in) Instrument Panel Tie Bar Replacement

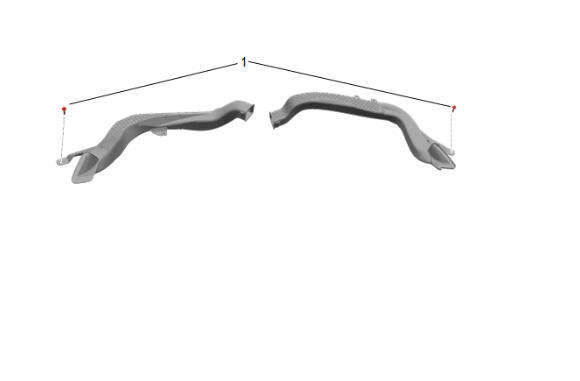

GM6385420Courtesy of GENERAL MOTORS COMPANY
Side Window Defogger Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Side Window Defogger Outlet Duct Bolt [2x] - - 2.5 N.m (22 lb in) Side Window Defogger Outlet Duct Replacement

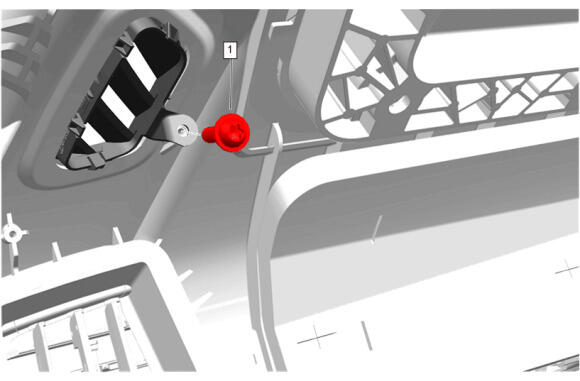

GM6709697Courtesy of GENERAL MOTORS COMPANY
Side Window Defogger Outlet Grille - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt - - 1.5 N.m (13 lb in) Side Window Defogger Outlet Grille Replacement - Right Side

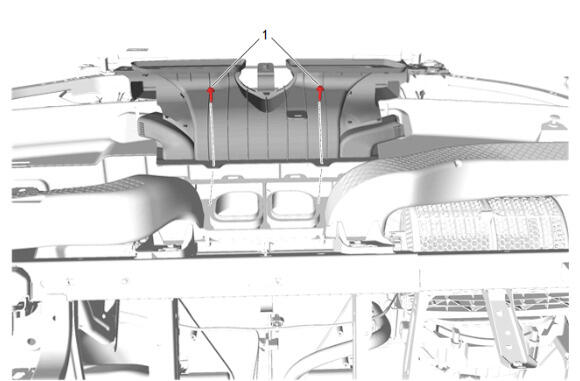

GM6385412Courtesy of GENERAL MOTORS COMPANY
Windshield Defroster Outlet Duct

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Defroster Outlet Duct Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Defroster Outlet Duct Replacement
scientia non olet · About LEMON Manuals
