Installation Procedure

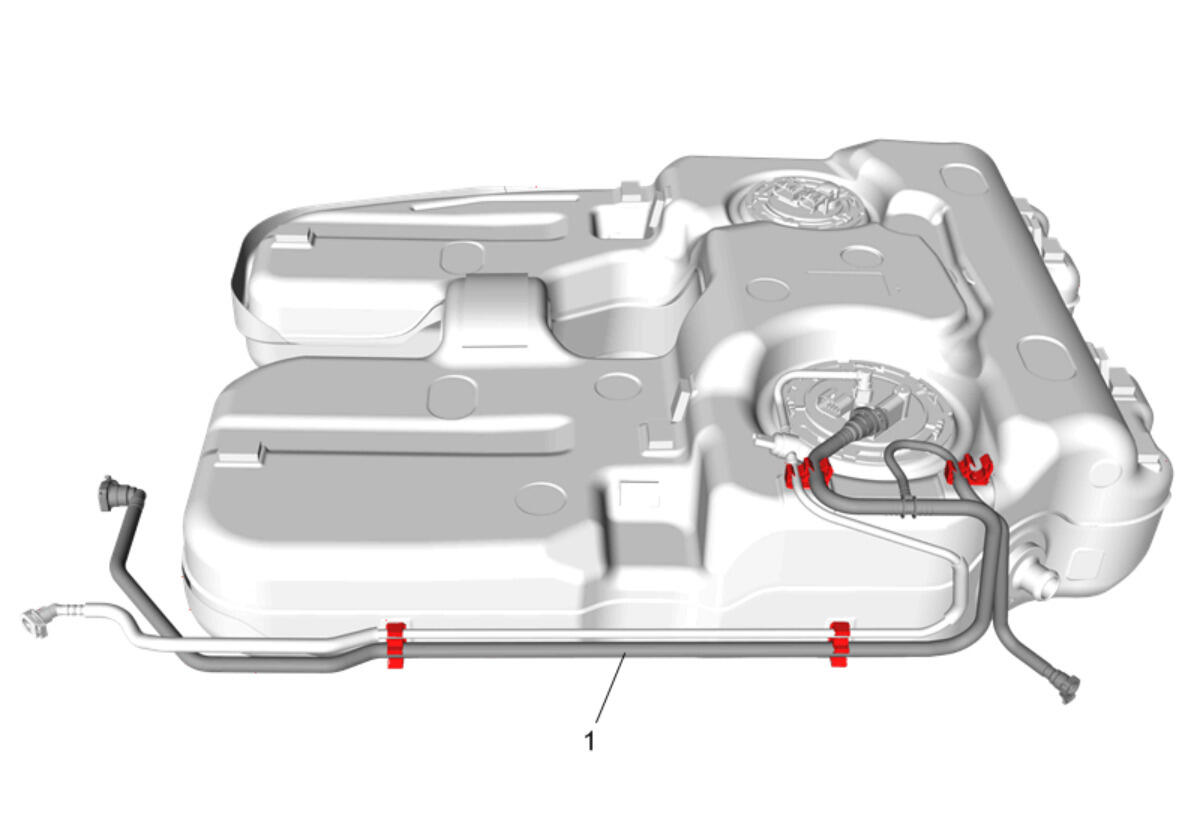

  1. GM5167088Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (1) - Install

  2. Engage the 4 retainers.
  3. Connect the quick connect fitting. Plastic Collar Quick Connect Fitting Service

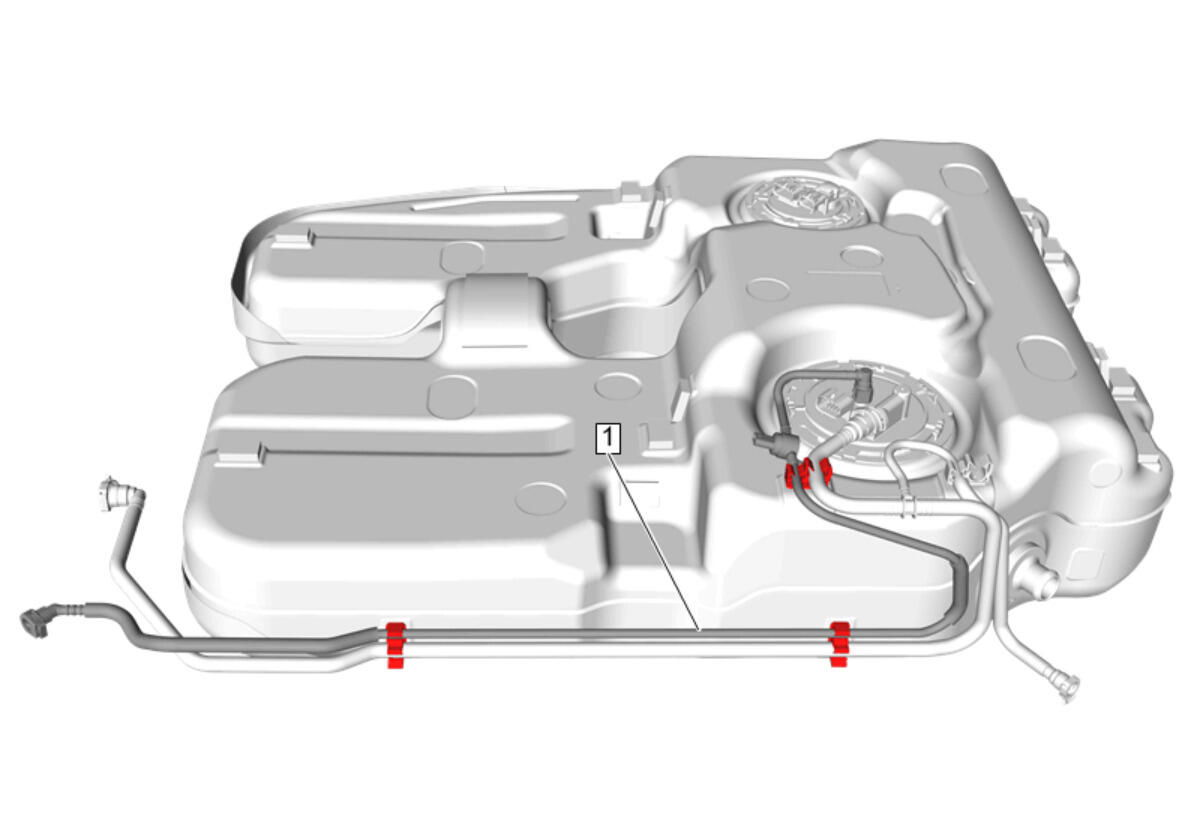

  4. GM5167090Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (1) - Install

  5. Engage the retainers.
  6. Connect the quick connect fitting. Plastic Collar Quick Connect Fitting Service
  7. Connect the electrical connector.
  8. GM6407666Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Fuel Pump Module Wiring Harness (1) @ Clip (2) - Install

  9. Connect all electrical connectors.
  10. GM4293931Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Pressure Sensor (2) - Install

  11. Fuel Tank Pressure Sensor Cover (1) - Install
  12. Connect the electrical connector.
  13. GM6590748Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Seal (2) - Install NEW

  14. Fuel Sender (1) - Install
  15. GM5169696Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

  16. GM5169687Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retaining Ring (1) - Install - CH - 48482  Fuel Sender Lock Ring Wrench (2)

  17. GM5169685Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect [2x]

  18. GM5169674Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install NEW

  19. Fuel Tank Fuel Pump Module (1) - Install
  20. GM5169681Courtesy of GENERAL MOTORS COMPANY

    Transfer Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

  21. Fuel Pump Vent Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  22. GM5169666Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH - 45722  Fuel Sender Lock Ring Wrench (2)

  23. GM5169659Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  24. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  25. Electrical Connector (1) - Connect [2x]
  26. GM4294857Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  27. Fuel Tank Heat Shield Retainer (1) - Install [2x]
  28. GM4294854Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Front Shield (2) - Install

  29. Fuel Tank Heat Shield Retainer (1) - Install [2x]
  30. GM5214679Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  31. Fuel Tank (1) - Install
  32. GM5214678Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

  33. CAUTION:

    Refer to Fastener Caution .

  34. Fuel Tank Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications
  35. Remove the adjustable jack from under the fuel tank.
  36. Connect the hose and wiring harness retainers as necessary.

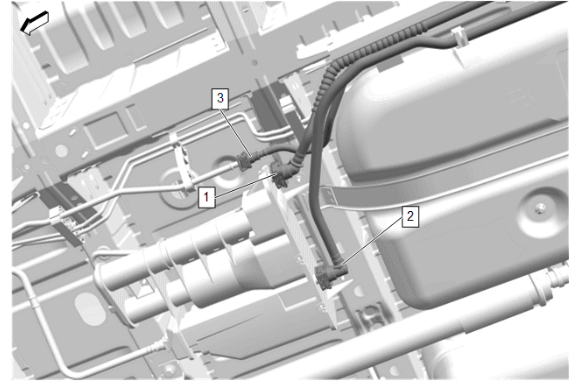

  37. GM6593321Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  38. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  39. Evaporative Emission Canister Air Inlet Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  40. GM5214676Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  41. Fuel Tank Filler Hose (3) - Install
  42. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  43. Wiring Harness (1) - Connect
  44. GM6465201Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Drive Differential Carrier Housing Gasket (2) - Install NEW

  45. Driveline Torque Tube (1) @ Differential Carrier Assembly - Install
  46. Using a suitable jack stand support the driveline torque tube.
  47. GM6466037Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The driveline torque tube and differential carrier are balanced as an assembly. When re-using the original driveline torque tube it should be re-installed in the same position in relation the pinion splines.

    Ensure the driveline torque tube and pinion spline marks (1) are aligned.

  48. GM6408735Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the bolts. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  49. Driveline Torque Tube Bolt (1) - Install and tighten [6x] - Fastener Specifications
  50. GM6408713Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  51. Differential Carrier Front Bolt (1) - Install and tighten - Fastener Specifications
  52. Remove the jack stand from under the differential carrier.

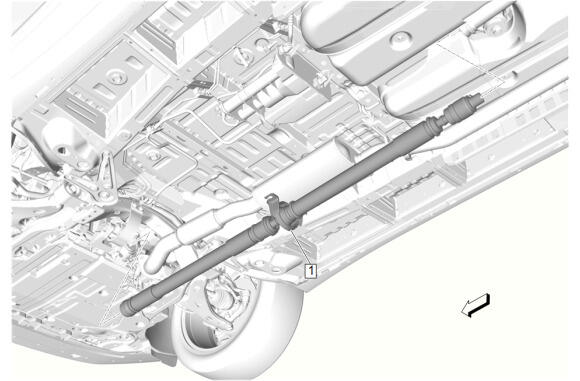

  53. GM6419409Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Install - Two-Piece Propeller Shaft Replacement

  54. Remove the support and lower the vehicle. Lifting and Jacking the Vehicle
  55. Refill the fuel tank.
  56. Inspect for fuel leaks.
