Installation Procedure

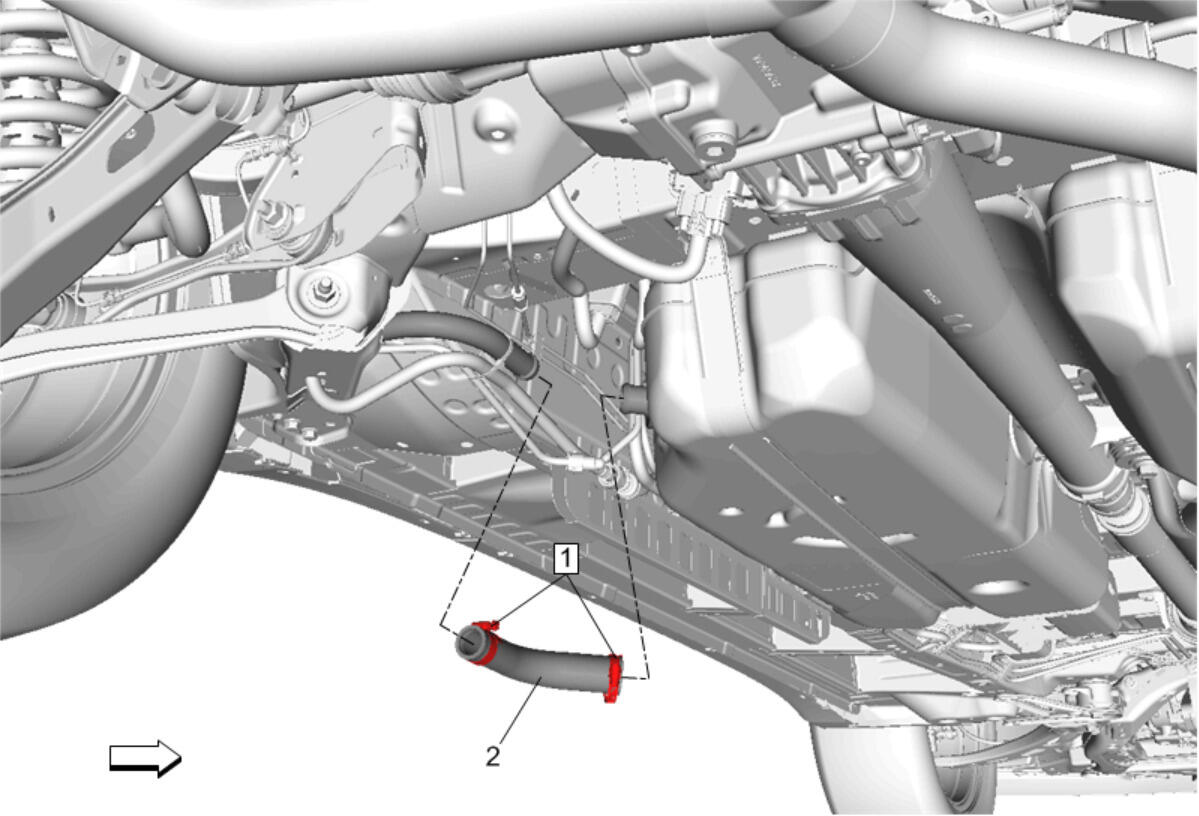

  1. GM4742956Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Tank Filler Hose Clamp (1) - Tighten [2x] - Fastener Specifications
  3. Remove the support and lower the vehicle.
