Installation Procedure

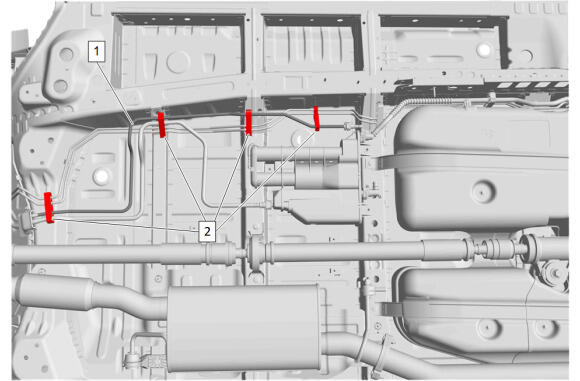

  1. GM6382334Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Retainer (2) - Install [4x]

  2. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  3. GM6179180Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe Protector (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Feed Hose Protector Nut (1) - Install and tighten [2x] - Fastener Specifications
  5. Remove the support and lower the vehicle.

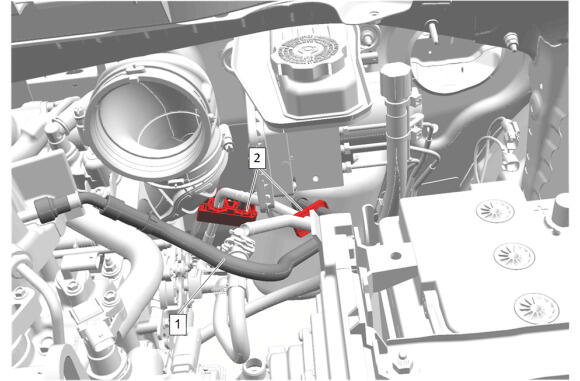

  6. GM6464327Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) @ Retainer (2) - Install [2x]

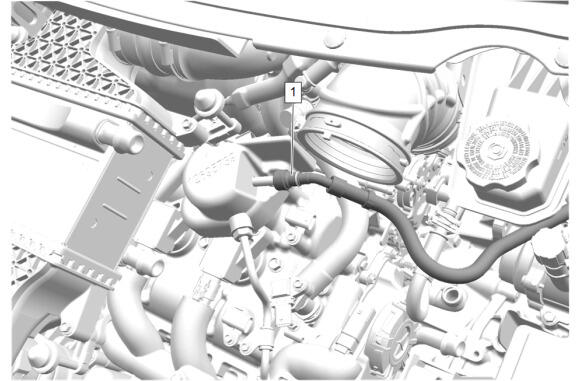

  7. GM6464326Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe (1) - Connect - Metal Collar Quick Connect Fitting Service

  8. GM6405033Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (4) - Install

    9. CAUTION:

    Refer to Fastener Caution .

  9. Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
  10. Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
  11. Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
  12. Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
  13. GM6396380Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

  14. GM6382159Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap (1) - Remove

  15. GM6382158Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Install

  16. Oil Filler Cap - Install
