Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

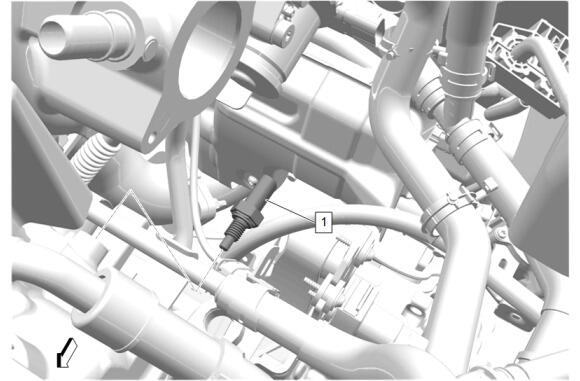

Engine Coolant Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

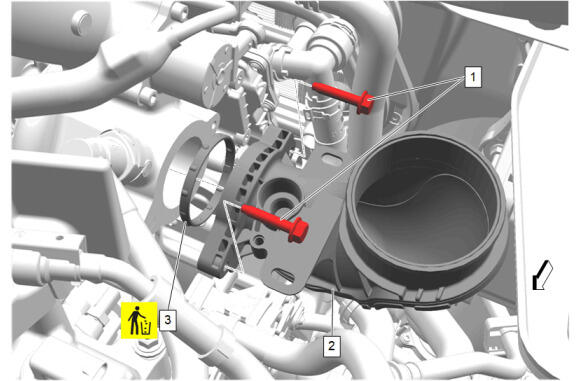

Turbocharger Air Inlet Adapter Seal (3) - Install NEW
Turbocharger Air Inlet Adapter (2) - Install

CAUTION:

Refer to Fastener Caution .

Turbocharger Air Inlet Adapter Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

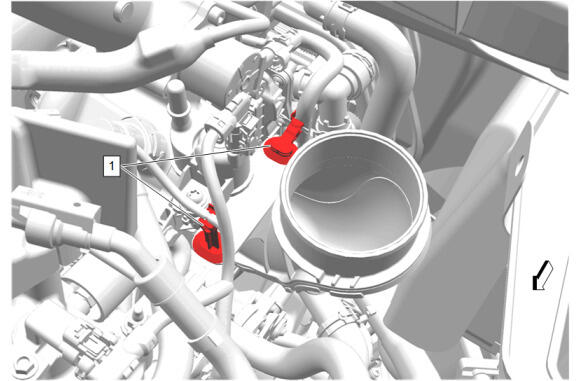

Engage the 2 wiring harness retainers (1).
Courtesy of GENERAL MOTORS COMPANY

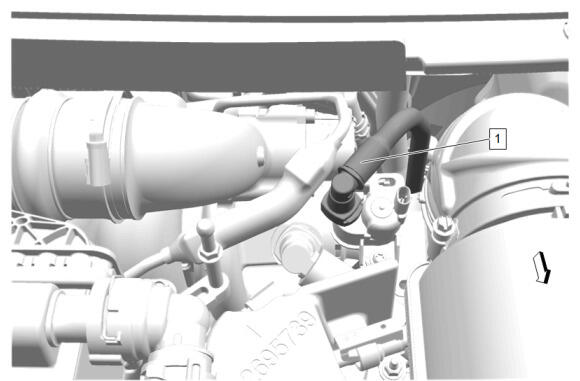

Evaporative Emission Canister Purge Solenoid Valve Pipe (1) - Install
Evaporative Emission Canister Purge Solenoid Valve Pipe (1) @ Evaporative Emission Canister Purge Pump - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

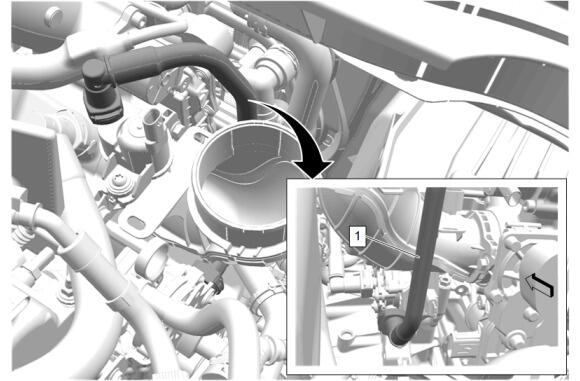

Evaporative Emission Canister Purge Solenoid Valve Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

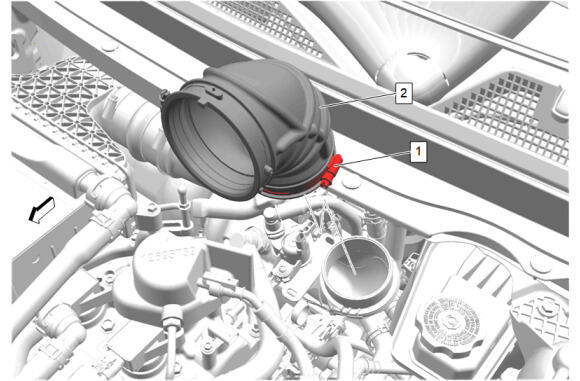

Turbocharger Outlet Duct Connector (2) - Install
Turbocharger Outlet Duct Rear Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (4) - Install
Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) - Install
Oil Filler Cap - Install
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
