Installation Procedure

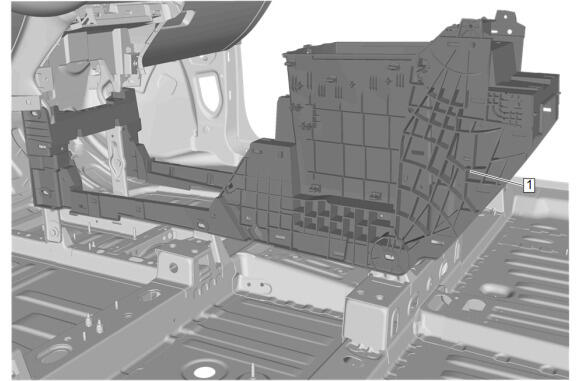

  1. GM6399492Courtesy of GENERAL MOTORS COMPANY

    Front Floor Lower Console (1) - Install

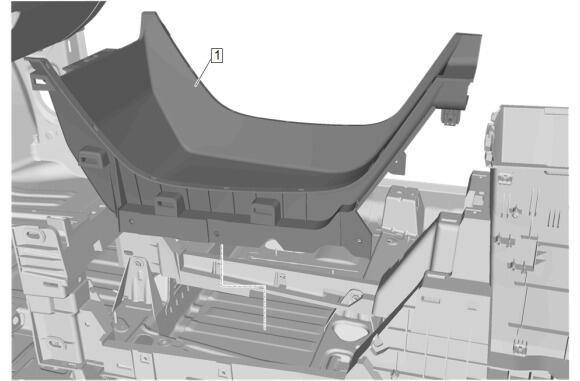

  2. GM6399573Courtesy of GENERAL MOTORS COMPANY

    Connect the wiring harness retainers.

  3. Front Floor Console Stowage Tray (1) - Install

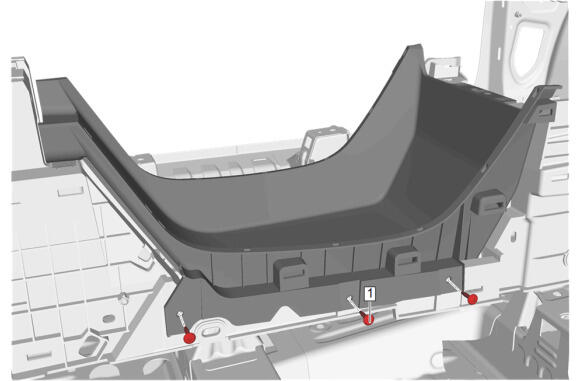

  4. GM6399570Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [3x] - Fastener Specifications

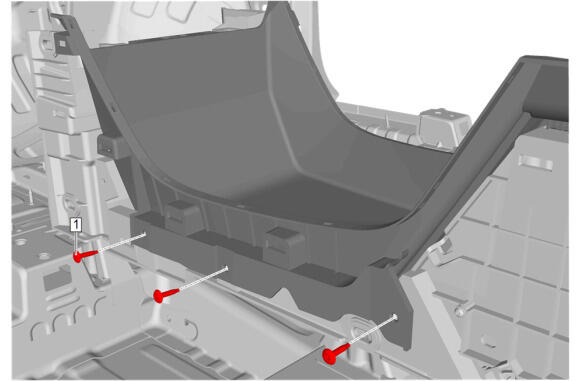

  5. GM6399567Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [3x] - Fastener Specifications

  6. GM6399557Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Front Trim Panel (1) - Install

  7. Connect the wiring harness retainers.
  8. GM6399546Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Bolt (1) - Install and tighten [2x] - Fastener Specifications

  9. GM6399488Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Bolt (1) - Install and tighten [2x] - Fastener Specifications

  10. GM6399481Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  11. Front Floor Console Front Compartment (2) - Install
  12. Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  13. GM6399489Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Upper Panel (1) - Install

  14. GM4751392Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (1) - Install

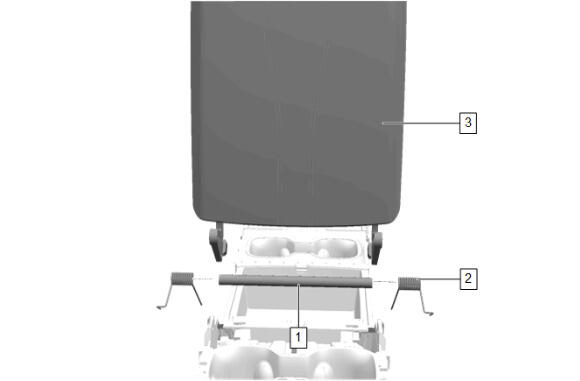

  15. GM6472576Courtesy of GENERAL MOTORS COMPANY

    Install the front floor console armrest hinge springs (2) and the front floor console armrest insulator (1).

  16. Install the front floor console armrest (3) to the front floor console armrest assembly.
  17. GM4751387Courtesy of GENERAL MOTORS COMPANY

    Install the front floor console armrest pivot pin (1) to the armrest.

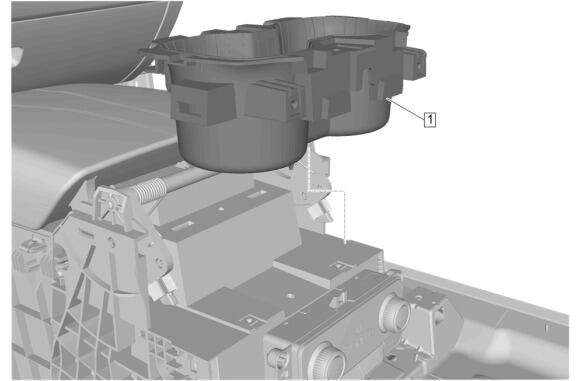

  18. GM6399483Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (1) - Install

  19. GM6422501Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications

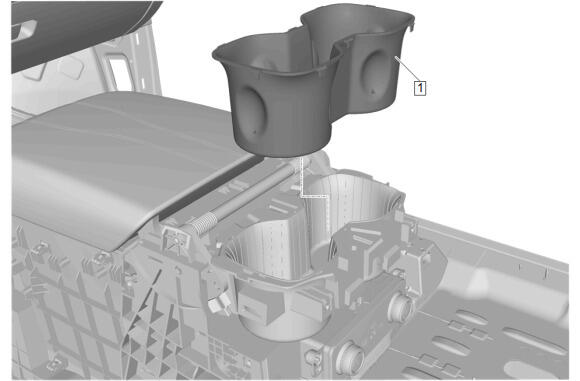

  20. GM6399478Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Liner (1) - Install

  21. GM6399494Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel- Right Side (1) - Install

  22. Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  23. GM6399493Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel- Left Side (2) - Install

  24. Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
  25. GM6399484Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (2) - Install

  26. Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
  27. GM6399485Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  28. Front Floor Console Rear Trim Panel (1) - Install
  29. Front Floor Console - Install - Front Floor Console Removal and Installation
