Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

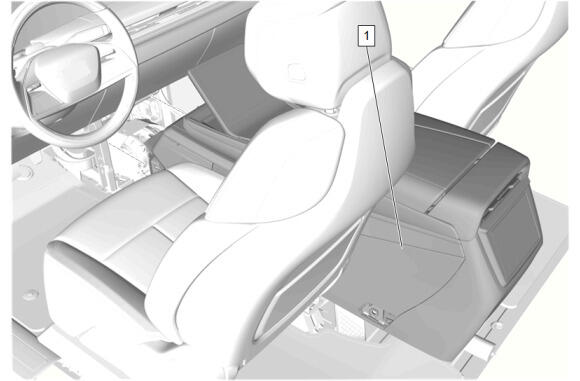

Front Floor Console Armrest (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the front floor console armrest hinge springs (2) and the front floor console armrest insulator (1).
Install the front floor console armrest (3) to the front floor console armrest assembly.
Courtesy of GENERAL MOTORS COMPANY

Install the front floor console armrest pivot pin (1) to the armrest.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel- Right Side (2) - Install
Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel- Left Side (2) - Install
Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Lower Panel (2) - Install
Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Front Floor Console Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
