Installation Procedure
- NOTE:
The thread locking adhesive is to be applied to the studs on the rear side door window regulator (2).
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Rear Side Door Window Regulator (2) - Install
- Rear Side Door Window Regulator Nut (1) - Install and tighten [4x] - Fastener Specifications
- Connect the electrical connector.

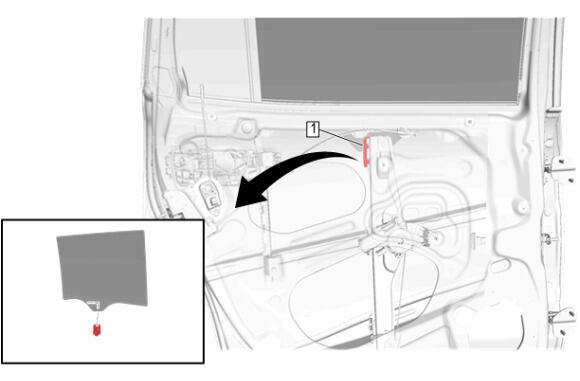

Place the window regulator sash retainers (1) in the full up position.

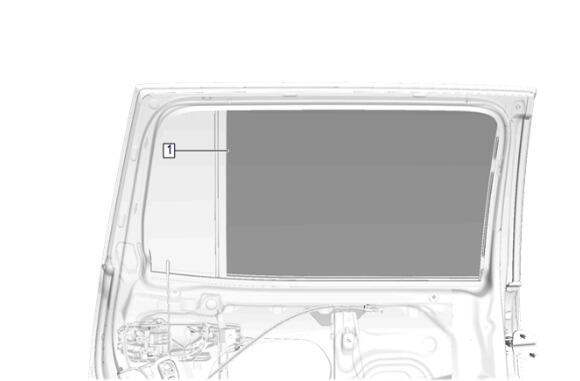

Remove the tape holding the rear side door window (1) in the full up position.
- NOTE:
When reinstalling the rear side door water deflector (1) ensure that the integral locators are installed properly and that the rear side door water deflector (1) is secured and leakproof.
Route the rear side door inside handle cable through the hole in rear side door water deflector (1) while installing it to the door.
- Rear Side Door Water Deflector (1) - Install
Rear Side Door Armrest Pull Cup Bracket (2) - Install
- Rear Side Door Armrest Pull Cup Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
- Ensure the window system operates properly.
Refer to Fastener Caution .
Use care when installing the rear side door window regulator (2) as the top of the track makes contact with the bottom of the window glass.
