Installation Procedure

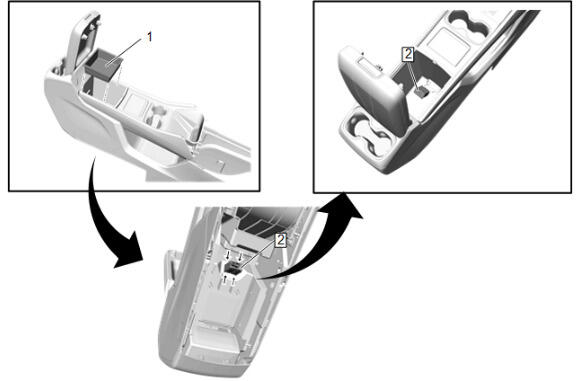

  1. GM6411675Courtesy of GENERAL MOTORS COMPANY

    Card Reader Receptacle (2) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connector.
  4. Front Floor Console Stowage Tray (1) - Install
  5. Front Floor Console - Install - Front Floor Console Removal and Installation
