Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Apply masking tape over the outside rearview mirror glass (1).
Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Courtesy of GENERAL MOTORS COMPANY

Retaining pressure on the outside rearview mirror glass, pull outward until the module (1) can be touched
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Hold module with one hand, gently pull at an upward direction while depressing tab.

Depress tab (1) and pull at an upward direction.
Disconnect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

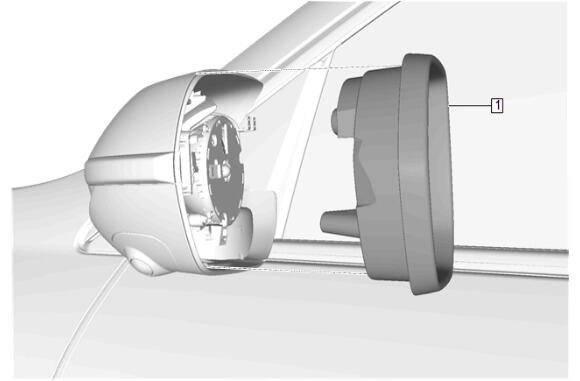

Outside Rearview Mirror Glass (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

outside rearview mirror housing bezel Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Housing Bezel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

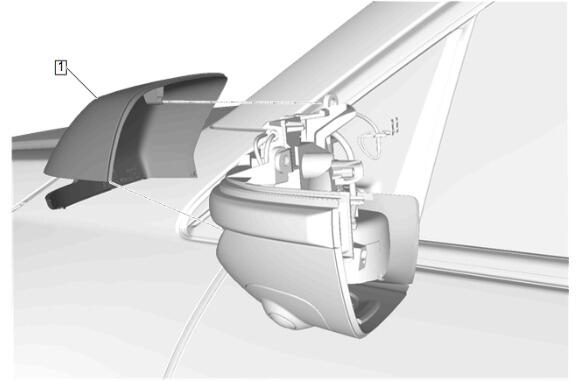

Outside Rearview Mirror Housing Upper Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Actuator Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

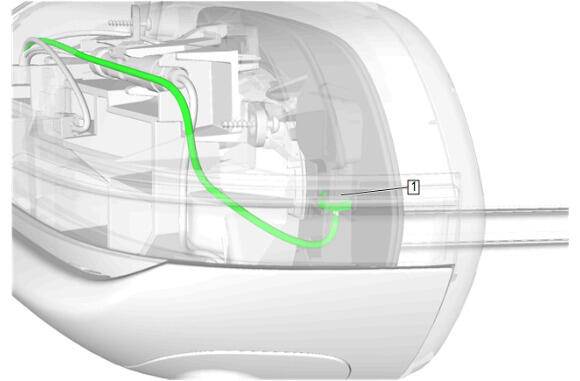

Disconnect the electrical connector.

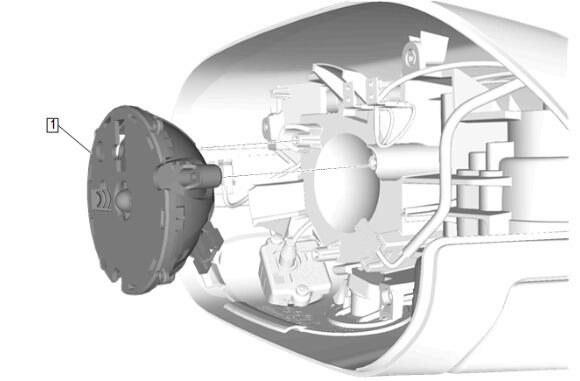

Outside Rearview Mirror Actuator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

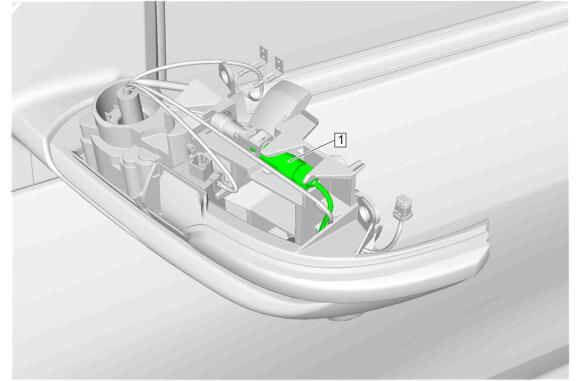

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

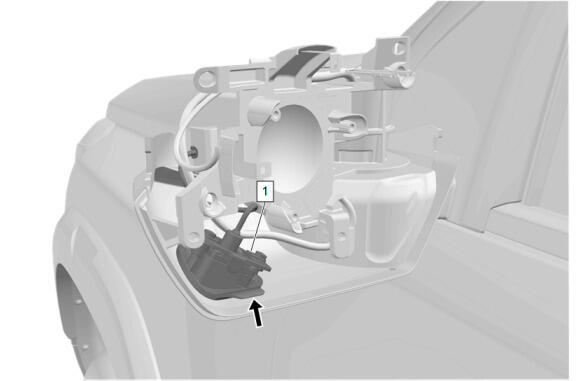

Using a suitable flat-bladed plastic trim tool, release the side view driver information camera assembly (1) from the outside rearview mirror housing and remove.
Courtesy of GENERAL MOTORS COMPANY

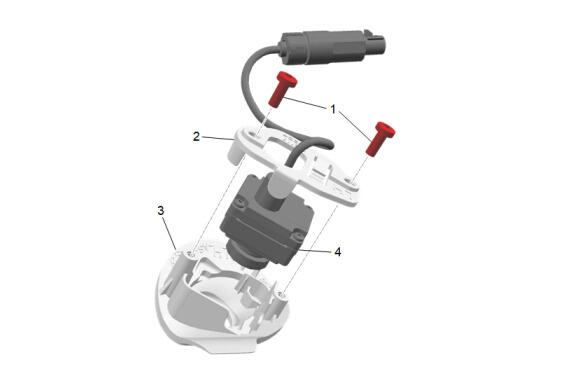

Side View Driver Information Camera Bracket Bolt (1) - Remove [2x]
Side View Driver Information Camera Bracket (2) - Remove
Remove the side view driver information camera (4) from the side view driver information camera bezel (3).
