Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
Ensure that the steering wheel is set in a straight ahead position and centered.

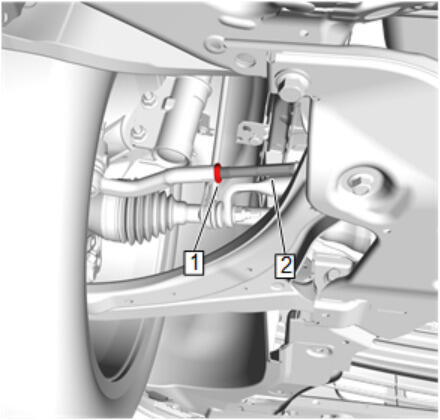

- Steering Linkage Tie Rod Adjuster Nut (1) - Loosen
- Adjust the toe to specification by turning the adjuster (2). Wheel Alignment Specifications
- Steering Linkage Tie Rod Adjuster Nut (1) - Tighten 75 N.m (55 lb ft)
CAUTION:
