Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

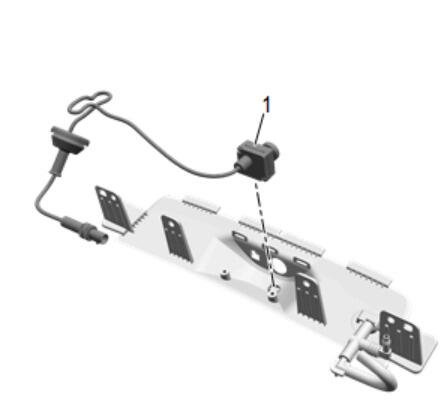

Video Display Inside Rearview Mirror Camera (1) - Install

Courtesy of GENERAL MOTORS COMPANY

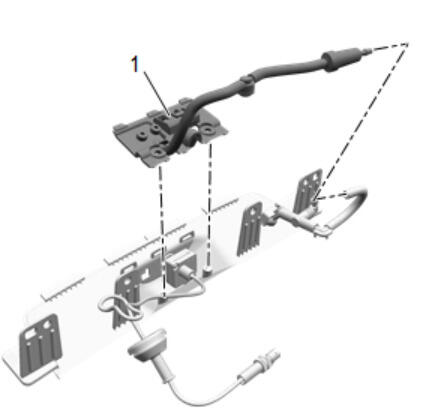

Video Display Inside Rearview Mirror Camera Nozzle Assembly (1) - Install

Courtesy of GENERAL MOTORS COMPANY

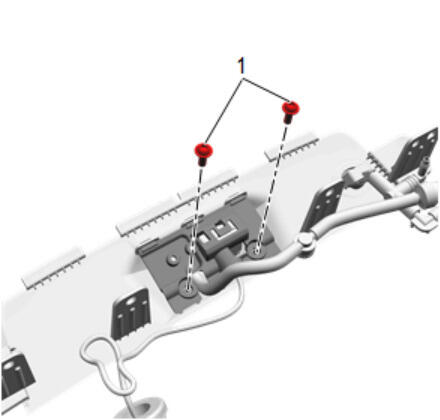

Rear End Spoiler Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

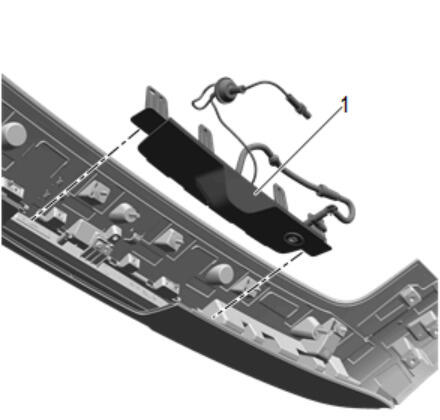

Rear End Spoiler Retainer Cover Assembly (1) @ Rear End Spoiler - Install

Courtesy of GENERAL MOTORS COMPANY

Rear Window Upper Reveal Molding Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

Courtesy of GENERAL MOTORS COMPANY

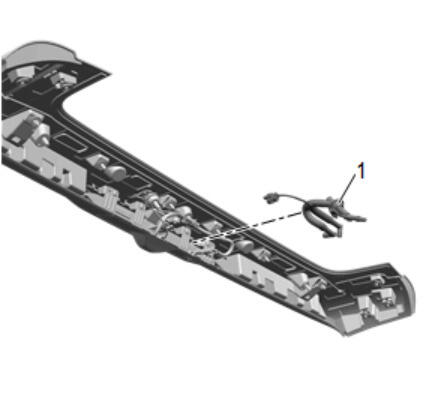

High Mount Spoiler Wiring Harness (1) @ Rear End Spoiler - Install

Courtesy of GENERAL MOTORS COMPANY

Rear End Spoiler (3) - Install - Rear End Spoiler Replacement
