Installation Procedure

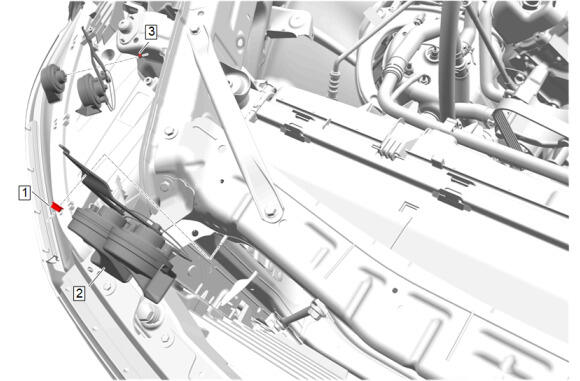

  1. GM5788027Courtesy of GENERAL MOTORS COMPANY

    Horn (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Horn Nut (1) - Install and tighten - Fastener Specifications
  3. Install the right side horn (2) to the bracket.
  4. Horn Nut (3) @Right Side Horn - Install and tighten - Fastener Specifications
  5. Connect the electrical connector.

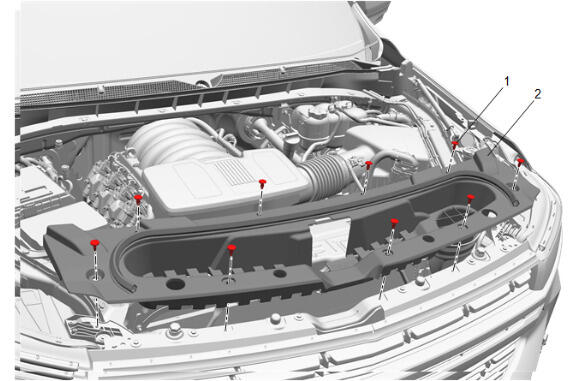

  6. GM5541732Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  7. Intake Air Baffle Retainer (1) - Install [9x]

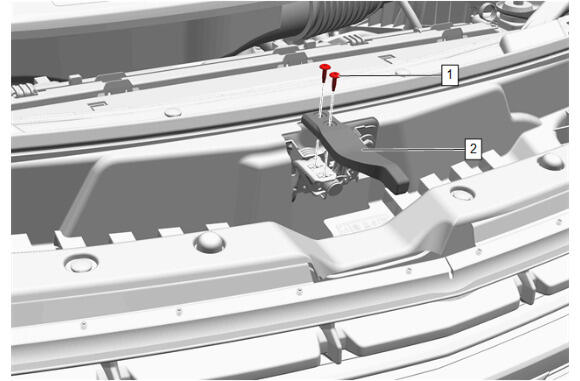

  8. GM5541781Courtesy of GENERAL MOTORS COMPANY

    Hood Secondary Latch Release Handle (2) - Install

    9. CAUTION:

    Refer to Fastener Caution .

  9. Hood Latch Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
