Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Using the scan tool, deflate the automatic level control air supply reservoir and the 4 air springs.
- Remove the spare tire and wheel assembly.

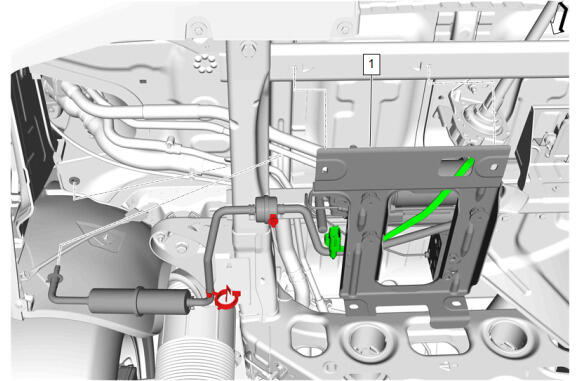

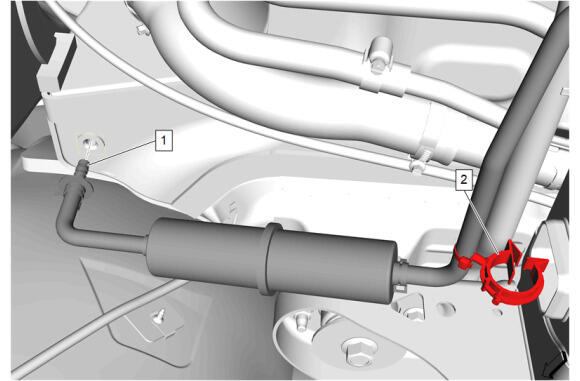

Remove the air intake/exhaust line (1) from the body grommet.
- Remove the air line retaining clip (2).

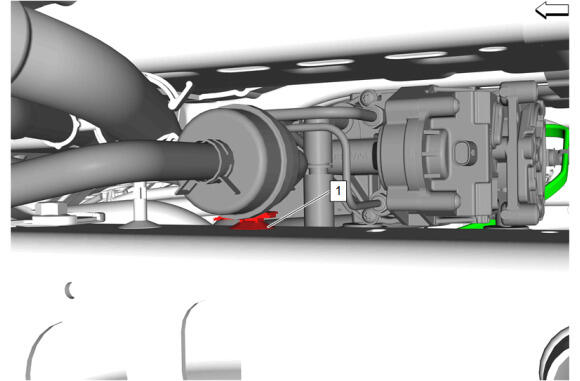

Remove the air intake filter retainer (1).

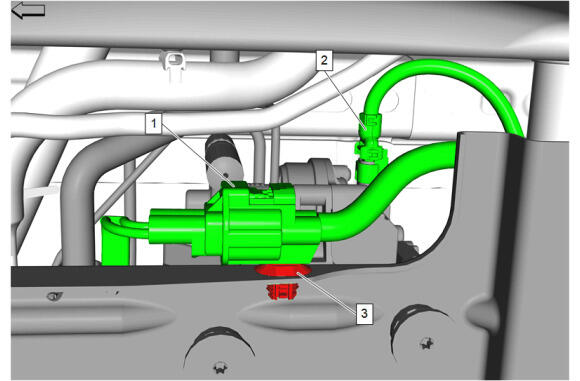

Disconnect the electrical connector (1).
- Remove the wire harness retainer (3).
- Disconnect the electrical connector (2).
- NOTE:
The air lines and air suspension controller are color coded.

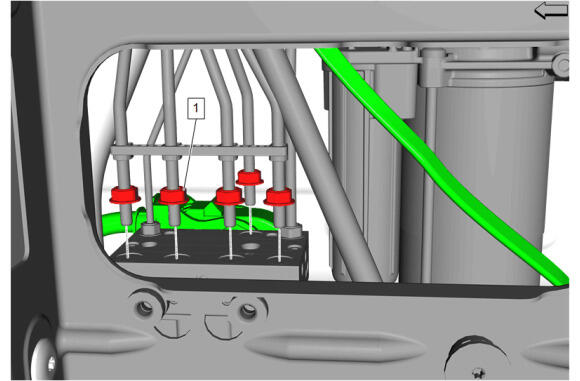

Remove the 5 automatic level control air compressor tube fittings (1) from the air suspension controller.
- NOTE:
The new automatic level control module air suspension controller will have new automatic level control air compressor tube fittings installed.
Using a suitable tool, slightly open the split in the automatic level control air compressor tube fittings (2).

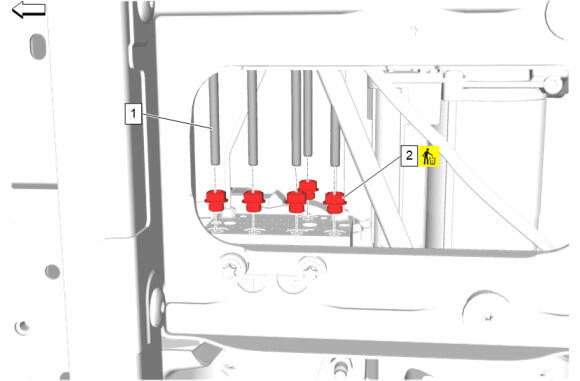

- Remove and DISCARD the 5 old automatic level control air compressor tube fittings (2) from the 5 automatic level control air compressor tubes (1).

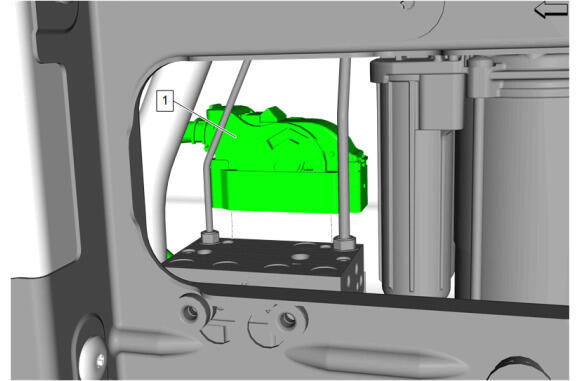

Disconnect the air suspension controller electrical connector (1).

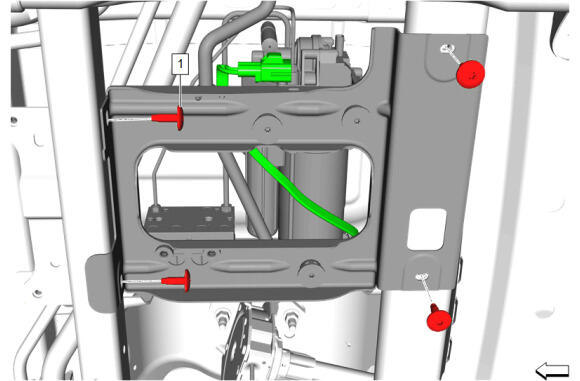

Automatic Level Control Module Bolt (1) - Remove [4x]
Automatic Level Control Module (1) - Remove
Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h (10 MPH).
