Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Windshield Wiper Arm Finish Cap (1) - Remove [2x]
Windshield Wiper Arm Nut (2) - Remove [2x]
Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the left and right side windshield wiper transmission pivot shaft.
Courtesy of GENERAL MOTORS COMPANY

Release the outer two retainers first, then release the remaining four retainers.
Air Inlet Grille Panel Access Hole Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Retainer (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Air Inlet Grille Panel Extension - Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Air Inlet Grille Panel Extension - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Front Compartment Side Sight Shield - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Windshield Washer Pump Hose (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Front storage compartment is shown transparent to highlight retainer locations.

Air Inlet Grille Panel Retainer (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Lift up on the leading edge of the air inlet grille panel assembly and pull towards the front of the vehicle.
Air Inlet Grille Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Windshield Multifunction Sensor Mount Bracket Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Inside Rearview Mirror Bolt (1) - Remove
Inside Rearview Mirror (2) - Remove
{If equipped} Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.

NOTE:

Observe the mounting and location of the front view camera to ensure proper reinstallation.

Release the retaining tabs and rotate the front view camera (1) downward and slide the front view camera rearward to release.
Front View Camera (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Windshield Outside Moisture/Ambient Light and Humidity Sensor (1) - Remove and DISCARD
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do NOT remove or service the sensor farm pins.

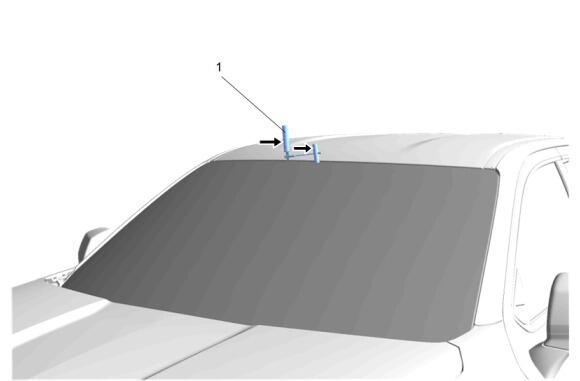

Release the windshield multifunction sensor mount bracket (1) retaining tabs and slide the bracket upward to disengage the sensor farm pins.
Gently pull the windshield multifunction sensor mount bracket (1) away from the windshield.
Cover to protect the following parts from broken glass:
- Upper Dash Pad
- The defroster outlets and A/C outlets
- The seats and carpeting
{If equipped} Remove the lower windshield supports from the cowl panel.

NOTE:

Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

{If equipped} Using the appropriate tool, carefully cut around the lace, start in the center working from side to side of the window to access the urethane adhesive bead.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Keep the cutting edge of the tool against the window.

Use commercially available glass cutting tool.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
Courtesy of GENERAL MOTORS COMPANY

Windshield (1) - Remove
