Installation Procedure
Connect the electrical connector.
- Position the charge port housing (1) to the outer side panel.
- Press the charge port housing (1) to the outer side panel until fully seated.
Accessory Power Receptacle Door (1) - Install

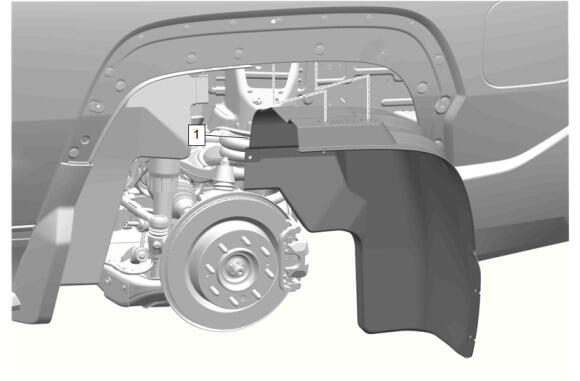

Rear Wheelhouse Liner Panel (1) - Install

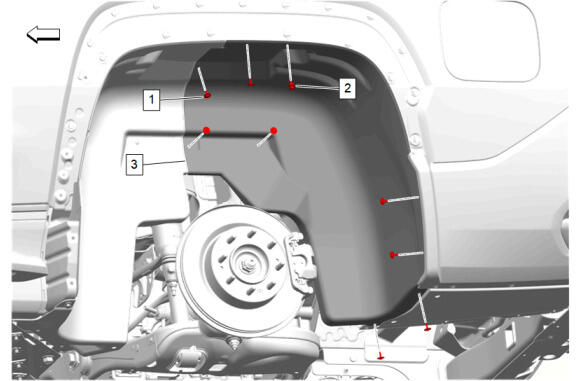

Rear Wheelhouse Liner Retainer (2) - Install
- Rear Wheelhouse Liner Bolt (1) - Install and tighten [8x] - Fastener Specifications
- Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
- Connect the battery negative cable. - Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution .
