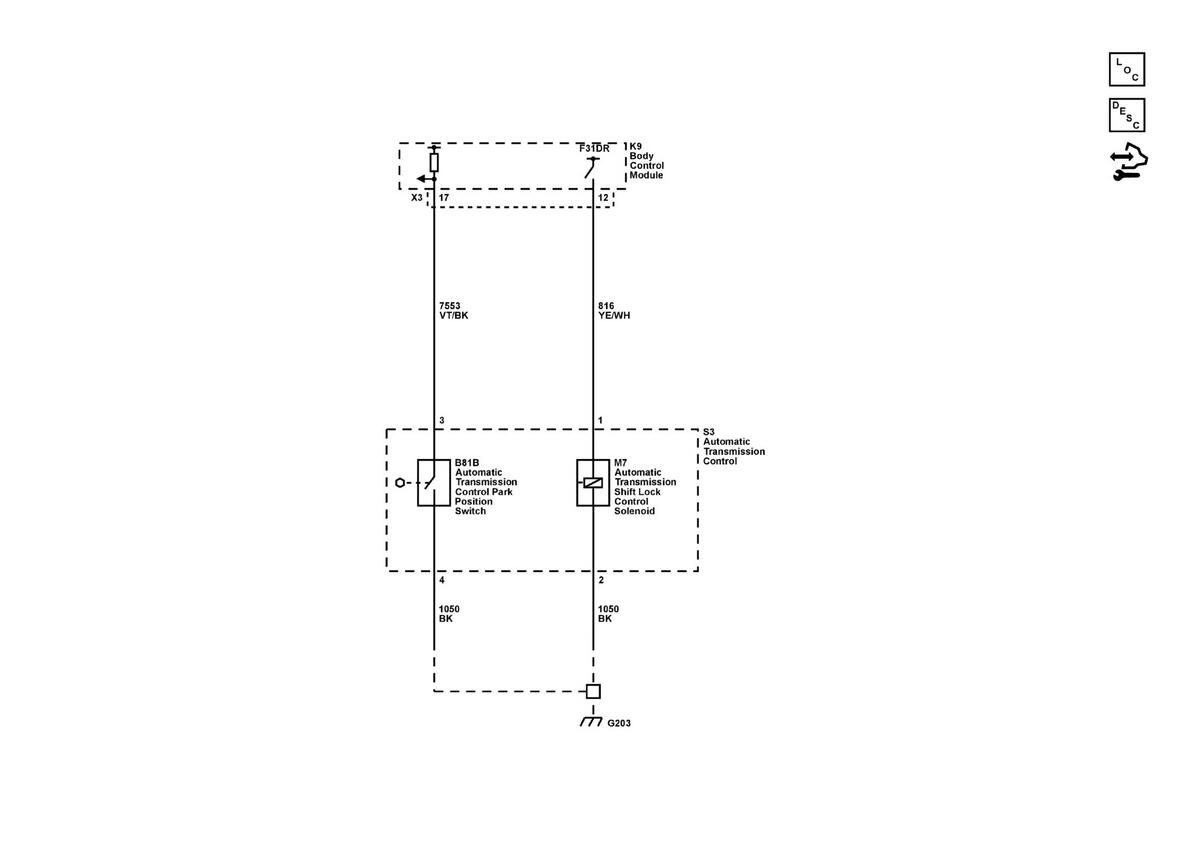

Home >> Chevrolet >> 2024 >> Silverado 1500 PPV >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics (MHT/MQB/MQE) >> Shift Lock Control
