Installation Procedure

WARNING: This page is about a different car, the 2023 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

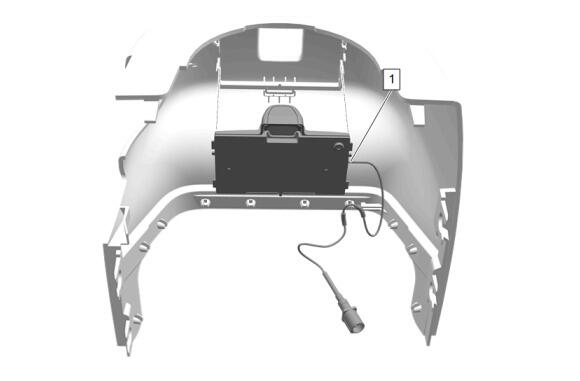

Driver Monitoring Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

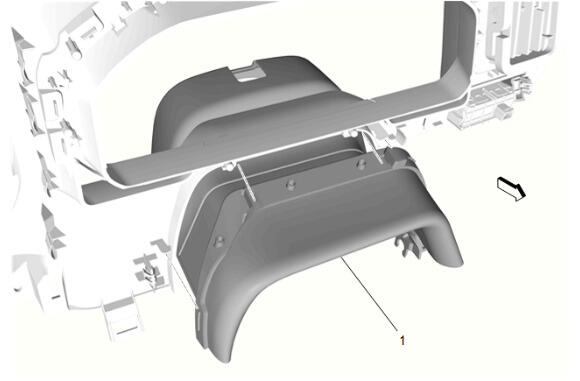

Instrument Panel Steering Column Upper Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

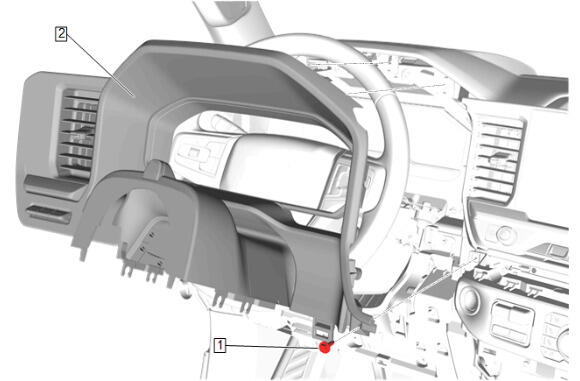

Instrument Panel Cluster Trim Plate (2) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector for the driver monitoring camera.

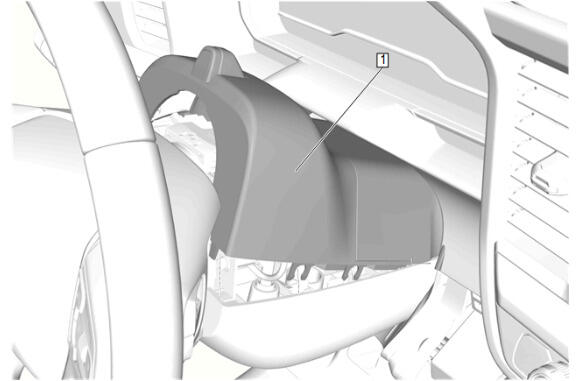

Instrument Panel Steering Column Upper Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

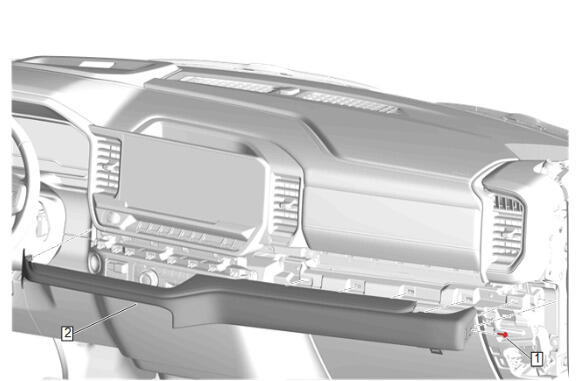

Instrument Panel Center Trim Pad (2) - Install
Instrument Panel Center Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Outer Filler (2) - Install
Instrument Panel Lower Trim Panel Outer Filler Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Line up flange around the front side door weatherstrip

Instrument Panel Fuse Block Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

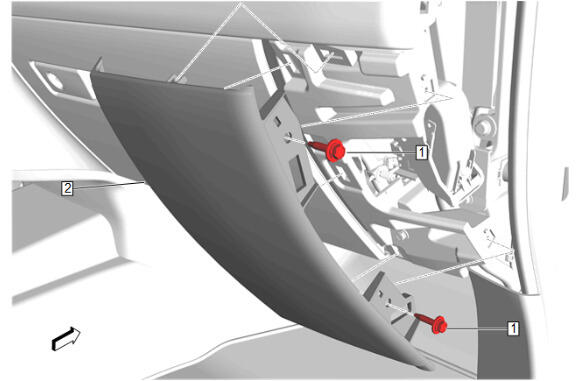

Instrument Panel Lower Trim Panel (2) - Install
Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Floor Console Applique- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

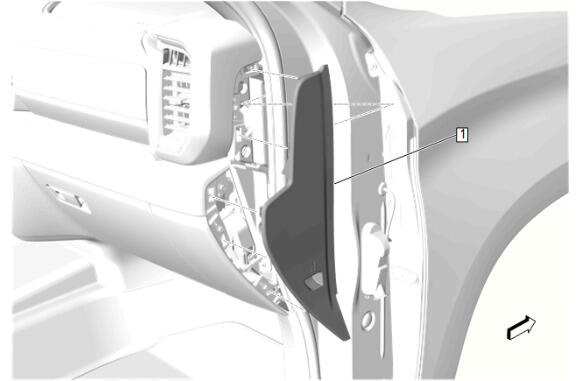

Instrument Panel Knee Bolster (1) - Install
