Fuel Tank Protector Replacement
NOTE:

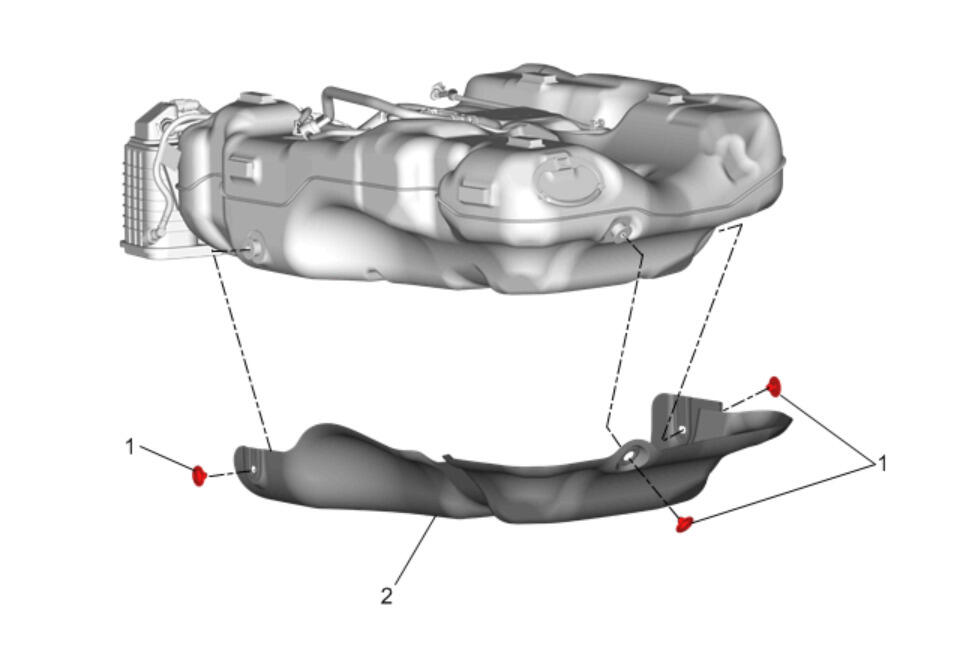

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Tank Strap @ Left Side - Remove Fuel Tank Replacement |
|
| 1 | Fuel Tank Protector Retainer [3x]
CAUTION:
Refer to Fastener Caution . |
| 2 | Fuel Tank Protector |
