Fastener Specifications

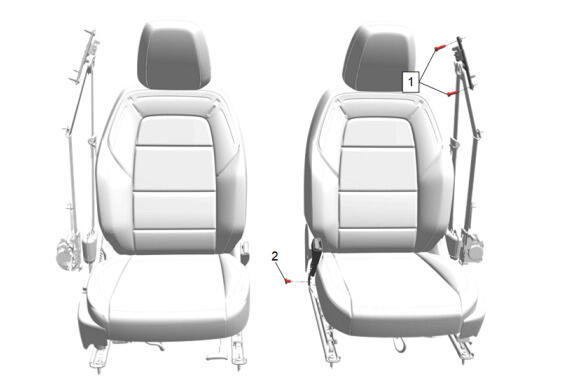

Front Seat Belts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Guide Bolt [2x] | - | - | 45 N.m (33 lb ft) | Front Seat Belt Guide Adjuster Replacement |
| 2 | Front Seat Belt Buckle Bolt | - | Yes | 45 N.m (33 lb ft) | Front Seat Belt Buckle Replacement |

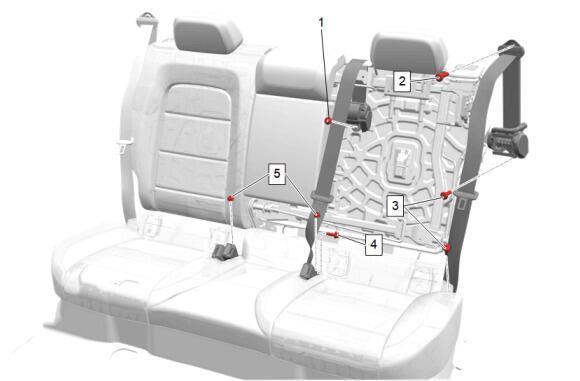

Rear Seat Belts
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Seat Center Belt Retractor Nut | - | - | 45 N.m (33 lb ft) | Rear Seat Center Belt Retractor Replacement |
| 2 | Rear Seat Belt Anchor Plate Bolt | - | - | 45 N.m (33 lb ft) | Rear Seat Belt Retractor Replacement - Left Side |
| Rear Seat Belt Retractor Replacement - Right Side | |||||
| 3 | Rear Seat Belt Retractor Bolt [2x] | - | - | 45 N.m (33 lb ft) | Rear Seat Belt Retractor Replacement - Left Side |
| Rear Seat Belt Retractor Replacement - Right Side | |||||
| 4 | Rear Seat Center Belt Retractor Bolt | - | - | 45 N.m (33 lb ft) | Rear Seat Cushion Cover and Pad Removal and Installation |
| 5 | Rear Seat Belt Buckle Nut [2x] | - | - | 45 N.m (33 lb ft) | Rear Seat Belt Buckle Replacement - Left Side |
| Rear Seat Belt Buckle Replacement - Right Side |
