Fastener Specifications

GM6370455Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

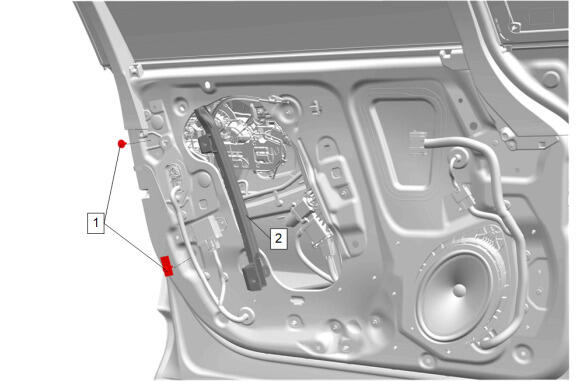

GM6370057Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

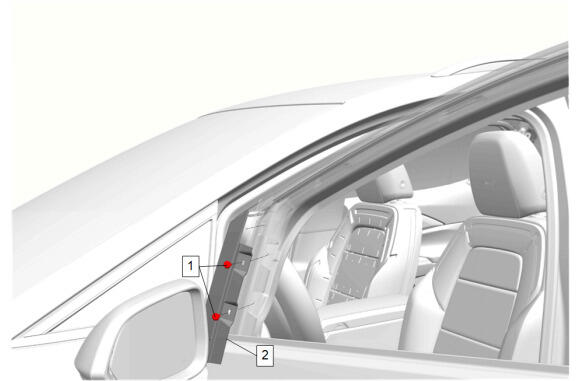

GM6370800Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Front Applique Replacement
GM6370801Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt [2x] - - 2 N.m (1 lb ft) Front Side Door Window Frame Rear Applique Replacement

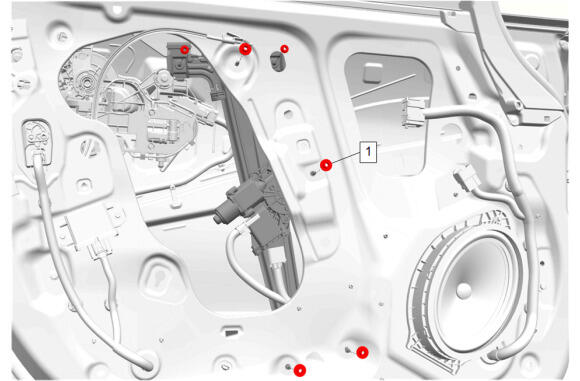

GM6403106Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [6x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

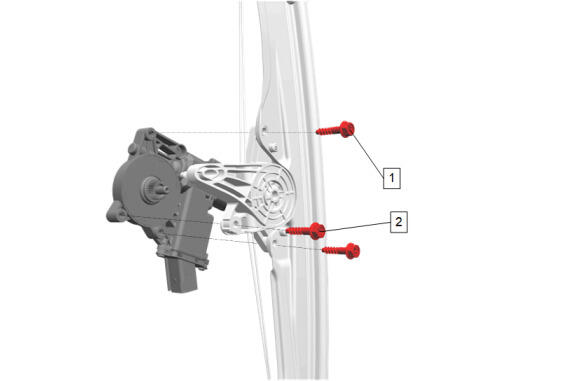

GM6497848Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [2x] - - 7.0 N.m (62 lb in) Front Side Door Window Regulator Motor Replacement
2 Front Side Door Window Regulator Motor Bolt - - 5.5 N.m (49 lb in) Front Side Door Window Regulator Motor Replacement

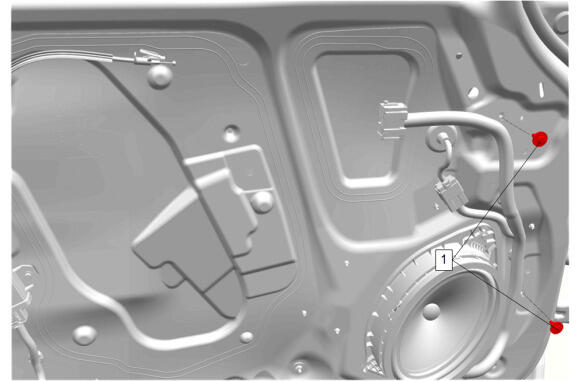

GM6370802Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Weatherstrip Replacement

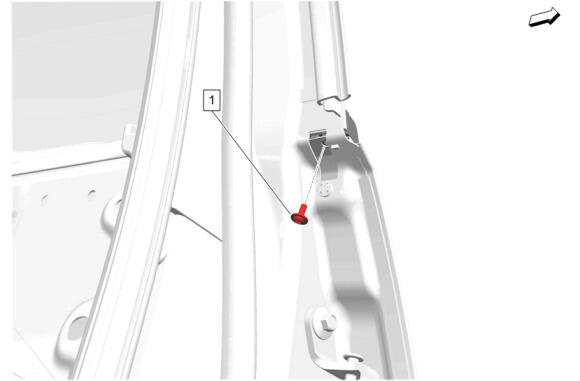

GM6403072Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

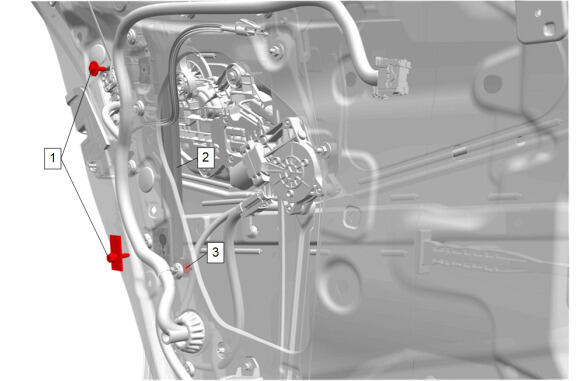

GM6376146Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Rear Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

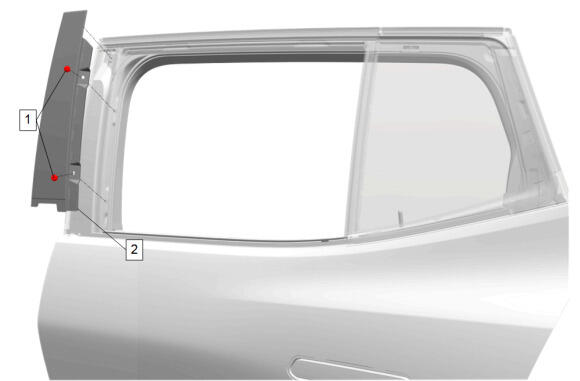

GM6380042Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt [2x] - - 2 N.m (1 lb ft) Rear Side Door Window Frame Front Applique Replacement

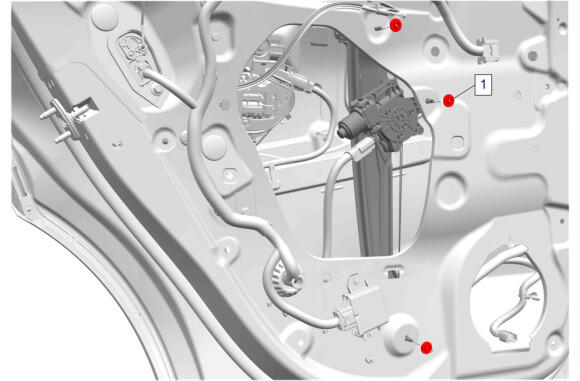

GM6403123Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [3x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
GM6497848Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [2x] - - 7.0 N.m (62 lb in) Rear Side Door Window Regulator Motor Replacement
2 Rear Side Door Window Regulator Motor Bolt - - 5.5 N.m (49 lb in) Rear Side Door Window Regulator Motor Replacement

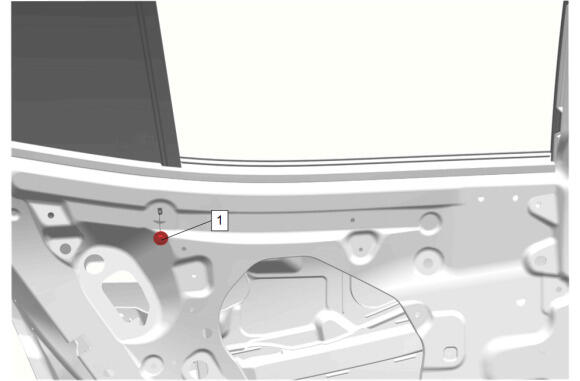

GM6403162Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - - 11 N.m (8 lb ft) Rear Side Door Window Weatherstrip Replacement
