Removal Procedure
- Vehicle Performance Data Recorder Bracket - Remove - Vehicle Performance Data Recorder Bracket Replacement
Electrical Connector (1) @ Electronic Suspension Control Module (2) - Disconnect and position aside

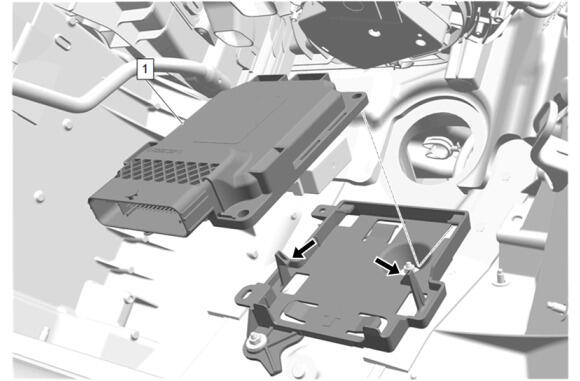

Depress the 2 retaining tabs on the electronic suspension control module bracket in the direction as indicated by the arrows.
- Slide the electronic suspension control module (1) out of the electronic suspension control module bracket.
