Removal Procedure

  1. GM6379847Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module (1) - Remove - Suspension Control Module Replacement

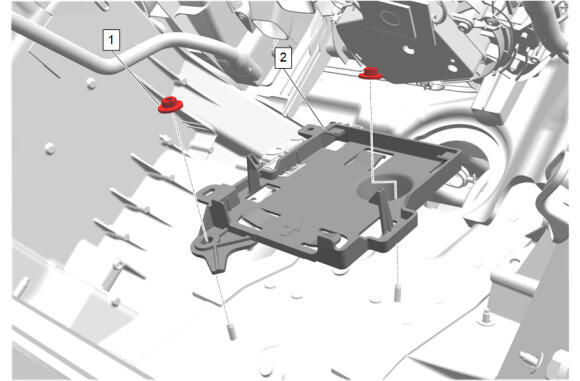

  2. GM6379893Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module Bracket Nut (1) - Remove [2x]

  3. Electronic Suspension Control Module Bracket (2) - Remove
