Lighting Control Module Replacement

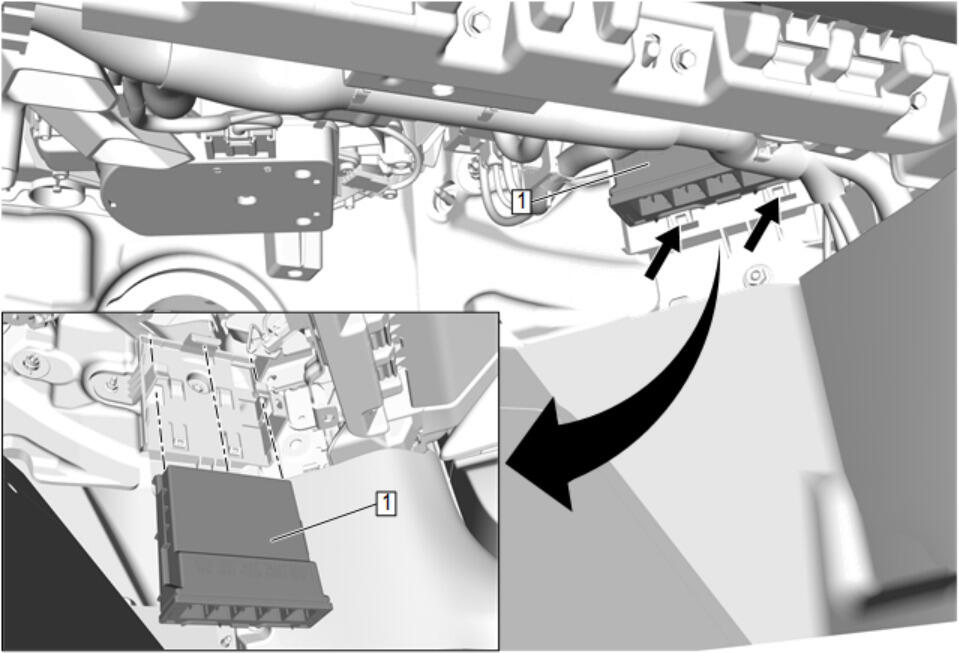

GM5367439Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1 Lighting Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Reposition the wiring harness as needed.
  3. Release the retaining tabs.
  4. Perform the necessary programming and setup procedure:Control Module References
