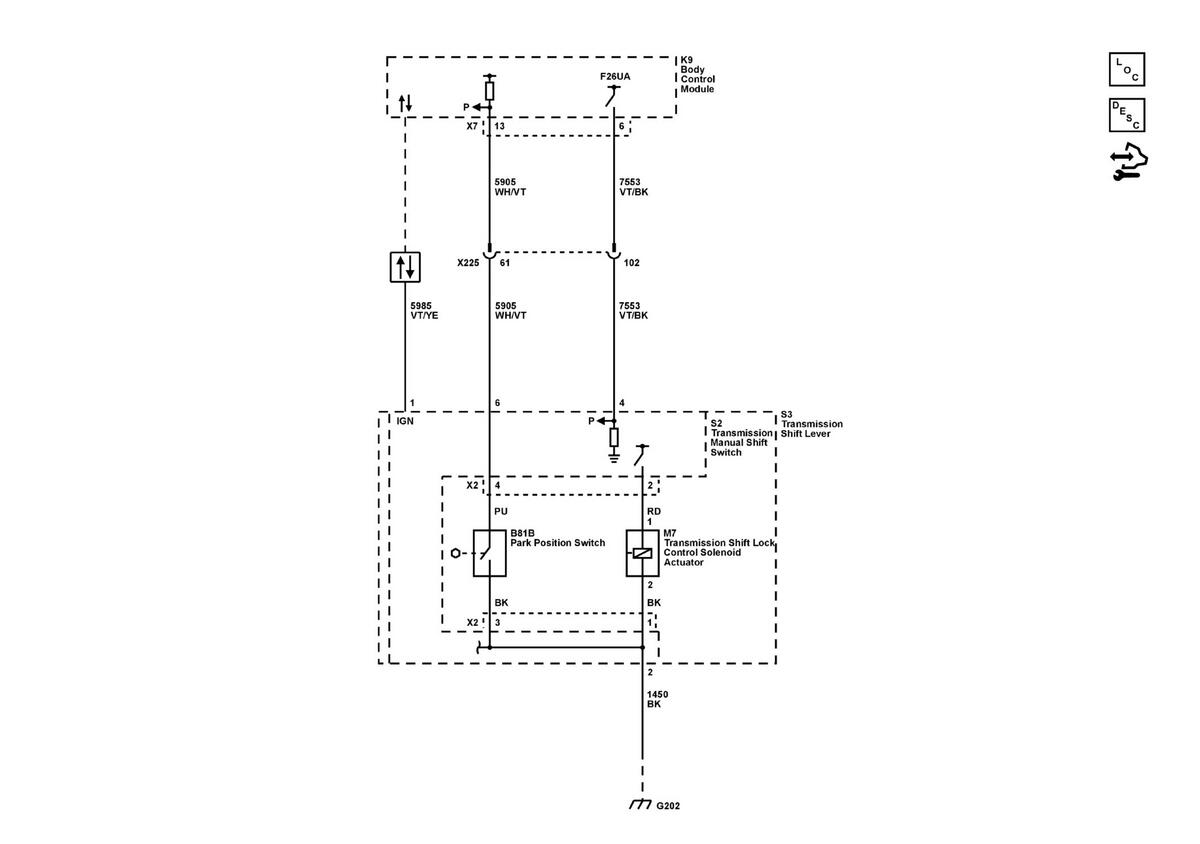

Home >> Chevrolet >> 2024 >> Camaro SS, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic and Routing Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
