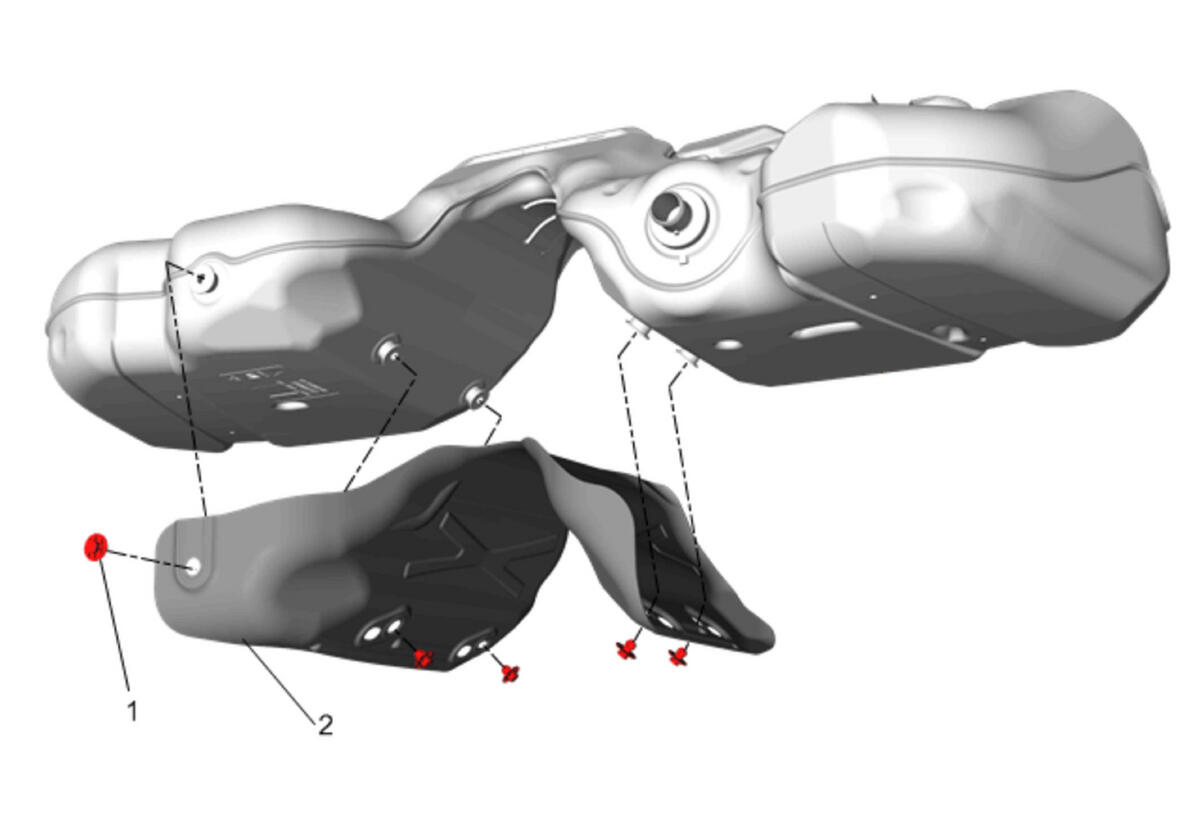

Fuel Tank Shield Replacement

Preliminary Procedures

1. Two-Piece Propeller Shaft Replacement (Coupe with LT1, LT4 and MH3, MJK, MM6)Two-Piece Propeller Shaft Replacement (Convertible with LT1, LT4 and MH3, MJK, MM6)Two-Piece Propeller Shaft Replacement (Coupe with LT1, LT4 and MI2, MI4)Two-Piece Propeller Shaft Replacement (Convertible with LT1, LT4 and MI2, MI4)
2. {If equipped} Transmission Fluid Cooler Pipe - Reposition - Transmission Fluid Cooler Pipe Replacement (LT4 With MI4 or MH3 or MJK and KNR, LT1 With MF6 or MI4 or MM6, With KNR, ATOC Jumper)Transmission Fluid Cooler Pipe Replacement (LT4 With MJK or MH3 and KNR, LT1 With MM6, With KNR, Front Jumper Left)Transmission Fluid Cooler Pipe Replacement (LT4 With MJK and KNR, LT1 With MM6, With KNR, Mid Line Left)Transmission Fluid Cooler Pipe Replacement (LT4 With MJK and KNR, LT1 With MM6, With KNR, Mid Line Right)Transmission Fluid Cooler Pipe Replacement (LT4 With MI4 or MJK or MH3 and KNR, LT1 With MI3 or MI4 or MM6, With KNR, Rear Differential Inlet Hose)Transmission Fluid Cooler Pipe Replacement (LT4 With MI4 or MJK or MH3 and KNR, LT1 With MI3 or MI4 or MM6, With KNR, Rear Differential Outlet Hose)Transmission Fluid Cooler Pipe Replacement (LT4 With MI4 or MH3 With KNR, LT1 With MI3 and KNR Mid Line Left)Transmission Fluid Cooler Pipe Replacement (LT4 With MI4 or MH3 With KNR, LT1 With MI3 and KNR Mid Line Right)
