Single Use Fasteners and Components

Throttle Body Gasket

Courtesy of GENERAL MOTORS COMPANY

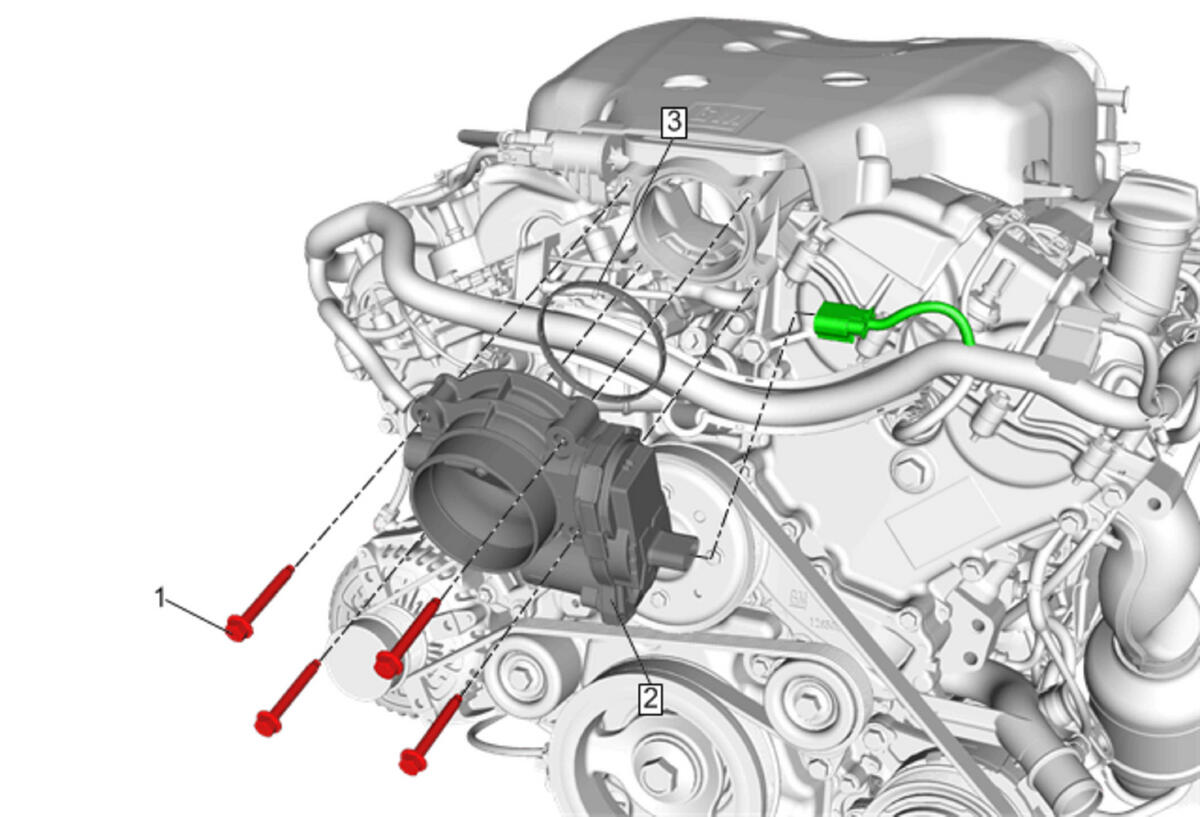

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement
1	Throttle Body Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset NOTE: Clean any debris prior to removing the throttle body. Cover any openings to prevent debris from entering into the intake manifold.
3	Throttle Body Gasket Procedure Install a NEW throttle body gasket.
