Manifold Absolute Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

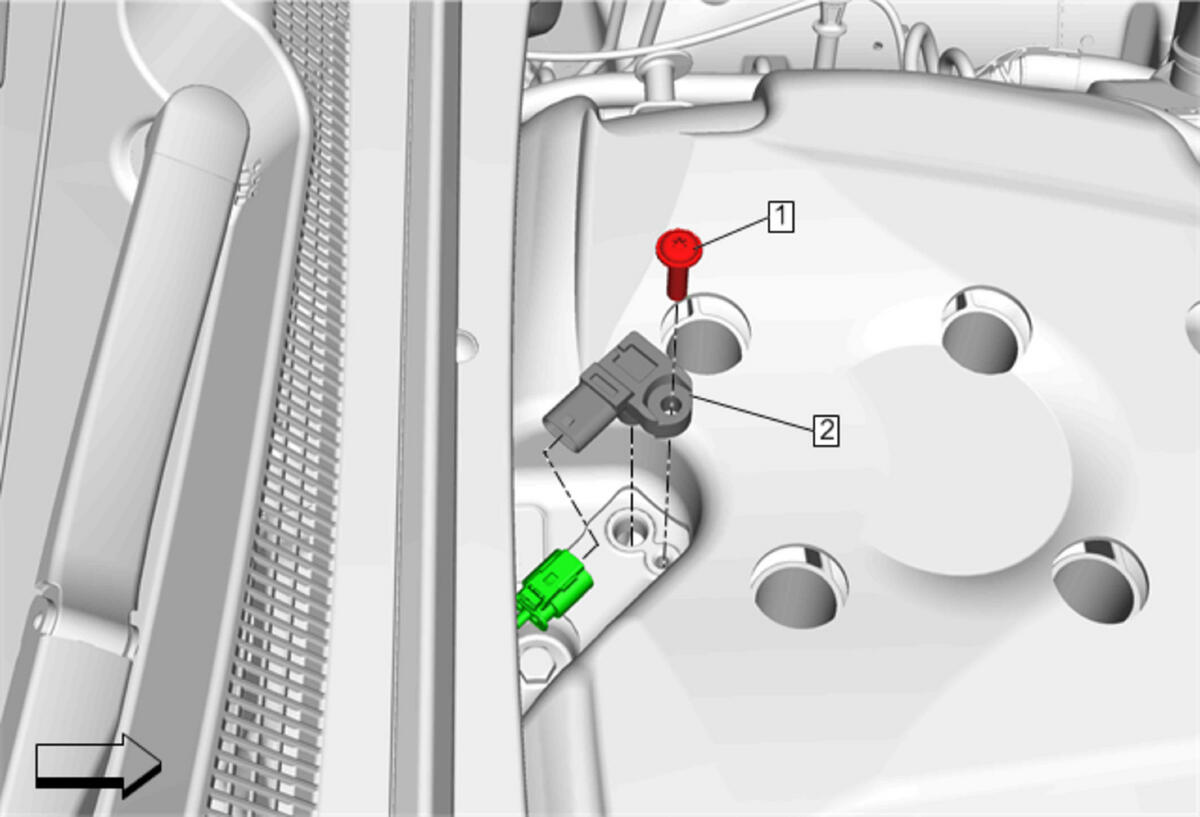

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten: 10N.m (89 lb in)
2	Manifold Absolute Pressure Sensor Procedure Electrical Connector@Manifold Absolute Pressure Sensor - Disconnect NOTE: Always install the seal supplied with the manifold absolute pressure sensor.
