Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

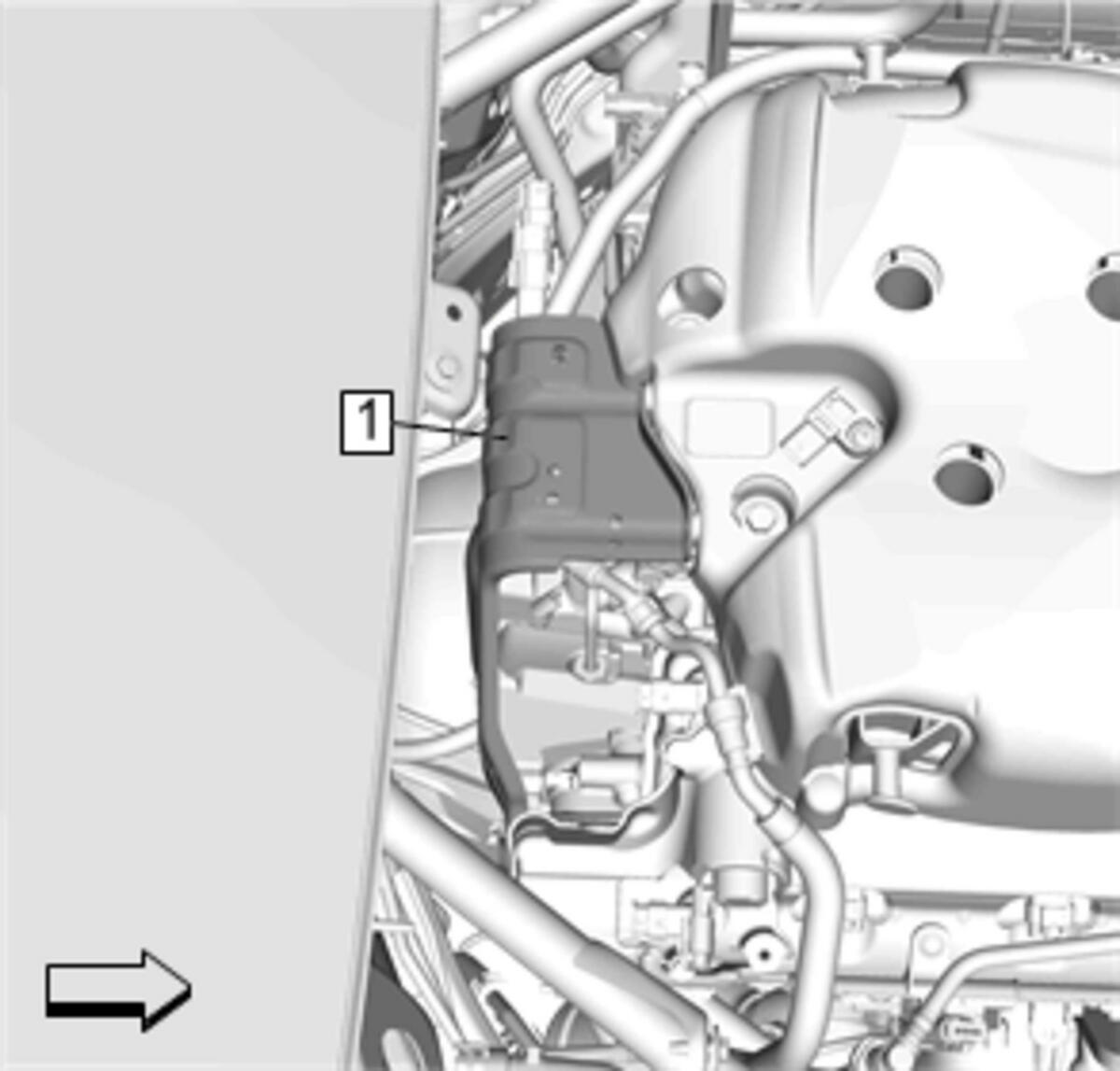

Fuel Pipe Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

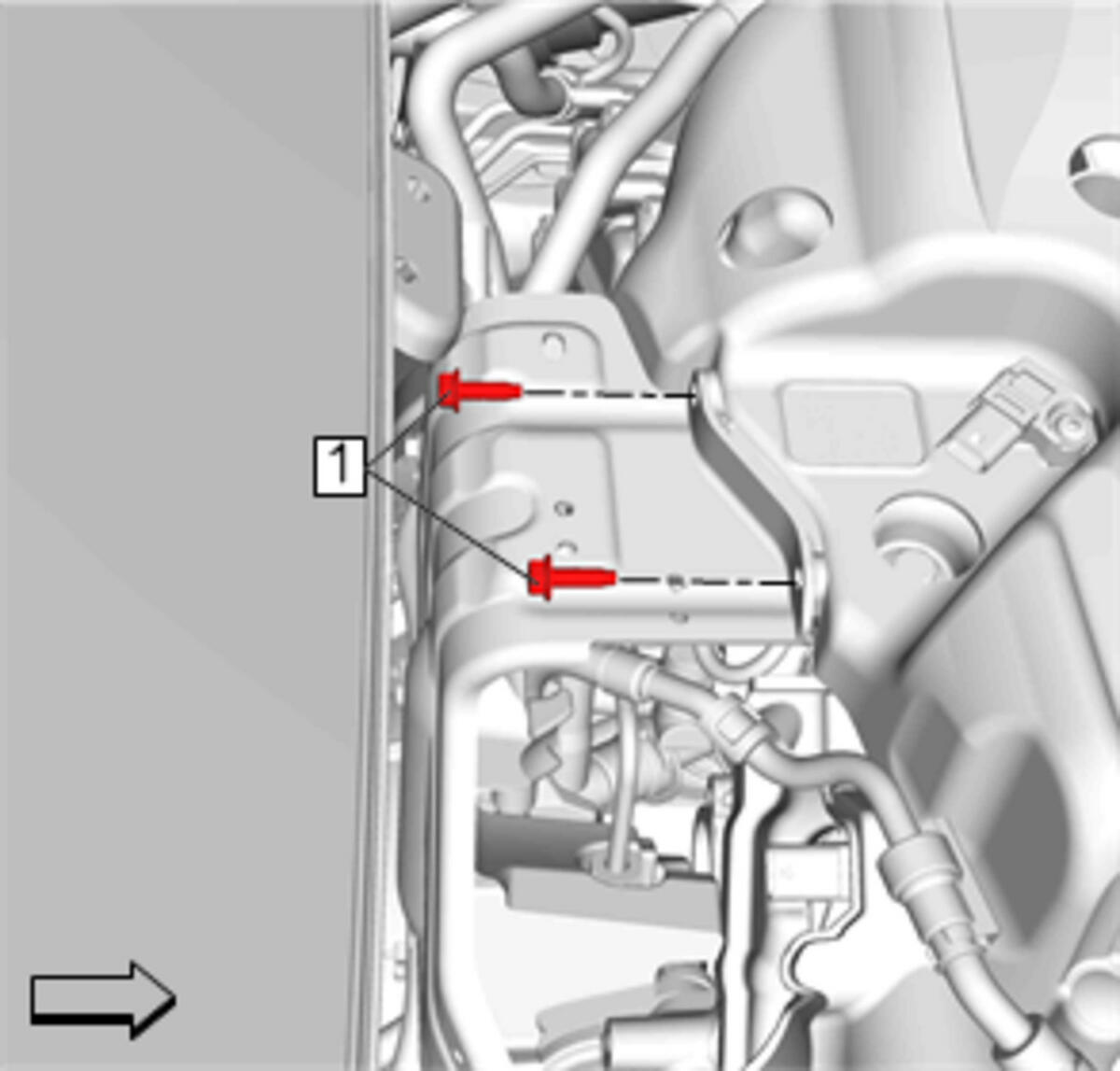

Fuel Pipe Shield Bolt (1) [2x] - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

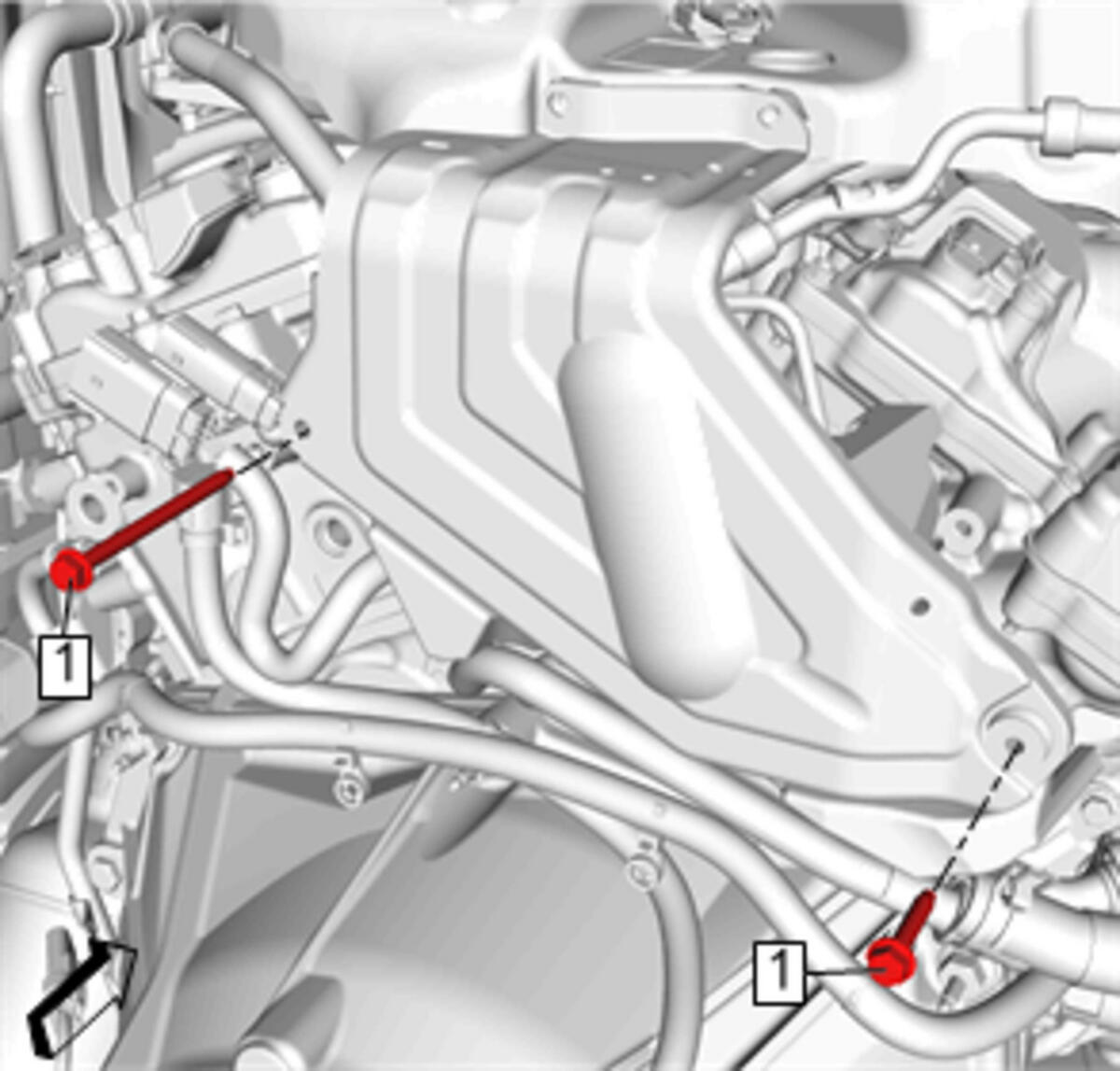

Fuel Pipe Shield Bolt (1) [2x] - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

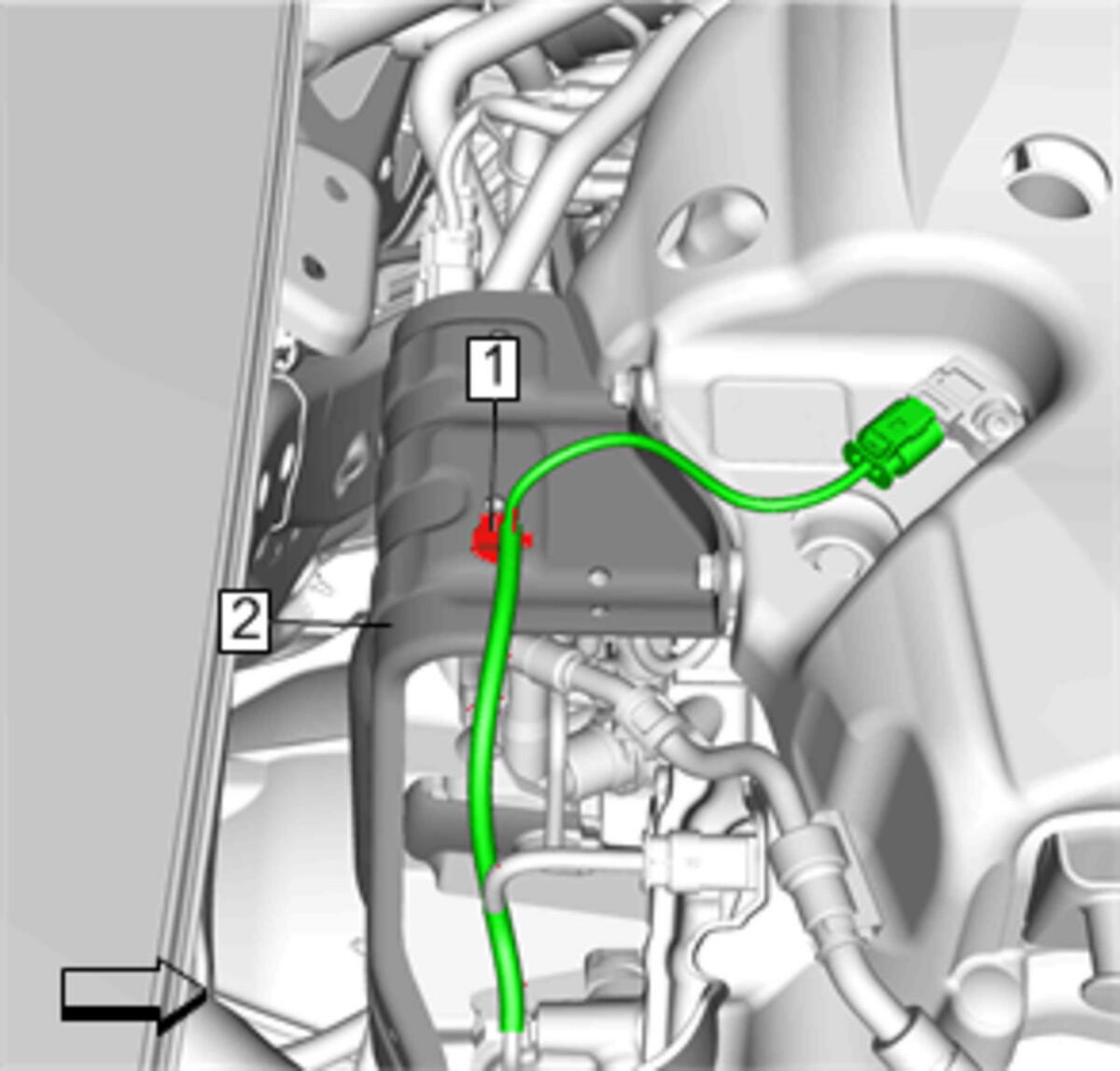

Retainer (1)@Fuel Pipe Shield (2) - Install
Plenum Front Panel Replacement (LTG LGX) - Install
