Air Cleaner Assembly Replacement

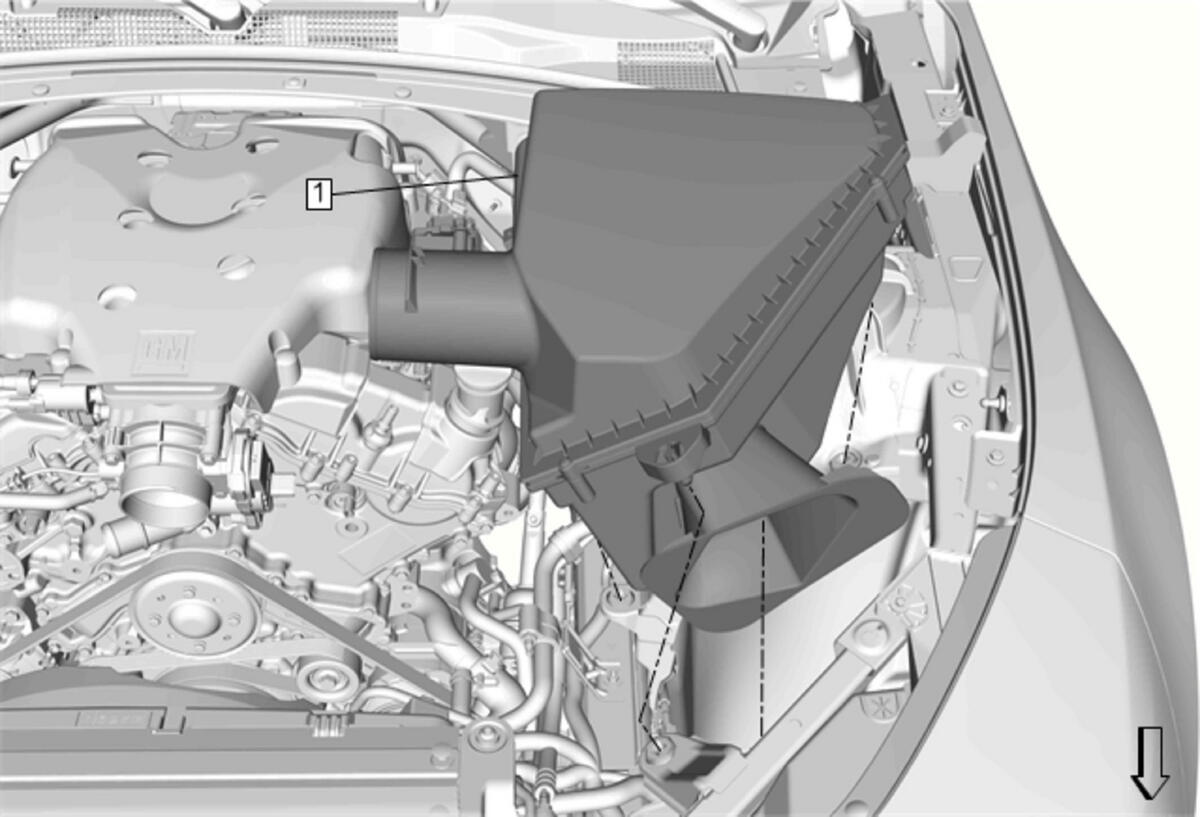

GM4184108Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
